Product Description

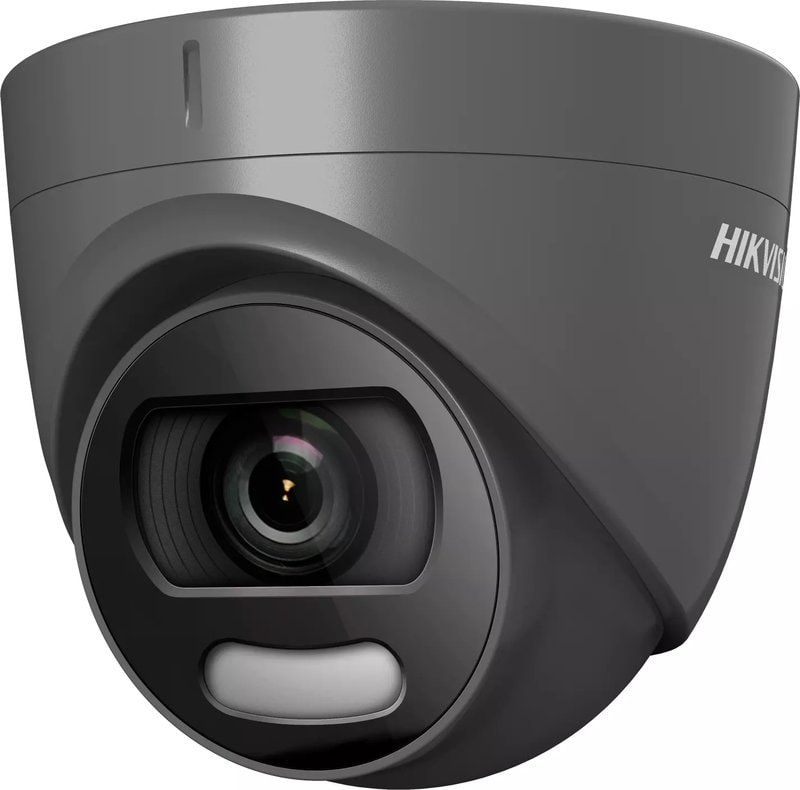

DS-2CE72HFT-F28-G is a 5 MP ColorVu turret designed for 4-in-1 analogue installs where full-colour night imaging is required without IR compromise.
Key specs
- Sensor/resolution: 5 MP, max 2560 × 1944
- Lens: 2.8 mm fixed, wide-angle
- Illumination: integrated warm white light, 20 m supplemental range, giving 24/7 full-colour output rather than IR monochrome
- WDR: 130 dB true WDR for scenes with strong backlight (doorways, glazed reception areas)
- Noise reduction: 3D DNR for cleaner low-light frames
- Signal support: 4-in-1 — switchable TVI/AHD/CVI/CVBS
- Housing: IP67-rated, dust and water resistant, indoor/outdoor turret form factor
Deployment notes
Being 4-in-1, this camera drops into existing TVI, AHD, CVI or CVBS DVR estates without a signal-conversion device — useful when upgrading a mixed analogue site incrementally rather than swapping the whole recorder. It integrates directly with Hikvision DVRs and other compatible HD analogue recording platforms, running over standard coaxial cable, so cable runs and connector infrastructure from a prior install can typically stay in place.
The turret body gives quicker on-site aiming than a bullet housing on tight soffits or corridor ceilings, and the IP67 rating covers exposed elevations without additional housing.
Best suited to entrances, perimeters, corridors and retail floors where colour identification at night — vehicle colour, clothing description — matters more than extended IR throw.
Specifications
- Model
- DS-2CE72HFT-F28
- Camera Type
- Analog Camera
- Resolution
- 5MP
- Colour
- Grey
- Housing Material
- Main body: Metal, Enclosure: Plastic
- ColorVu
- Yes
- Day/Night Mode
- Colour Mode
- Built-in Microphone
- No
- Built-in Speaker
- No
- Connection Type
- Analogue
- IP Rating
- IP67
- NVR Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF.
- Image Sensor
- 5 MP CMOS
- Max Resolution
- 2560 (H) × 1944 (V)
- Min. Illumination
- 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Day & Night
- Colour
- Lens Type
- 2.8 mm fixed lens
- Video Outputs
- Switchable TVI/AHD/CVI/CVBS
- Dimensions
- Φ 109.82 mm × 85.56 mm (4.32" × 3.37")
Technical Specifications
Frequently Asked Questions
Does the DS-2CE72HFT-F28-G work with existing analogue DVRs?
Yes. It is a 4-in-1 camera supporting TVI, AHD, CVI and CVBS signals, so it can integrate with compatible HD analogue DVR systems including Hikvision recorders without needing a different recorder type.
What is the range of the supplemental light?
The integrated warm white light has a stated range of 20 m, supporting full-colour 24/7 imaging rather than switching to IR monochrome at night.
What resolution does this camera output?
5 MP, with a maximum resolution of 2560 x 1944, higher detail than a standard 1080p analogue camera.
Is this camera rated for outdoor use?
Yes. The housing is IP67-rated, protecting against dust and water ingress for exposed outdoor mounting positions.
