Product Description

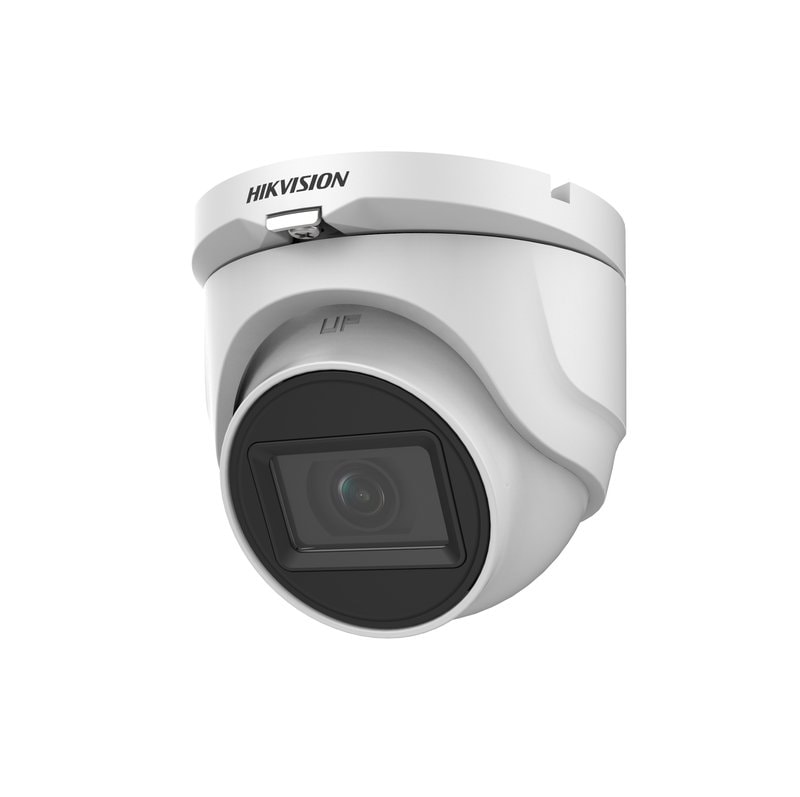

Hikvision DS-2CE76H0T-ITMF — 5 MP fixed turret camera
Maximum resolution 2560 × 1944 (5 MP) on HD-TVI, with switchable output across TVI/AHD/CVI/CVBS — a straight drop-in for existing coaxial runs and mixed-brand analogue DVRs without re-cabling.
Key specs
- Resolution: 5 MP, max 2560 × 1944
- Video formats: 4-in-1, switchable HD-TVI / AHD / CVI / CVBS
- Lens options: fixed 2.8 mm or 3.6 mm (select for field of view at time of order)
- IR: EXIR 2.0, up to 30 m illumination distance
- Day/night: auto IR-cut filter switching between colour and IR modes
- Housing: IP67-rated turret, indoor/outdoor rated, wall/ceiling mount
Why it fits on a job
The 4-in-1 output means one SKU covers TVI, AHD, CVI or CVBS head-ends — useful for stock consolidation across mixed installed bases. EXIR 2.0 gives 30 m of usable IR range for typical perimeter or entrance coverage without an external illuminator. IP67 sealing means the housing tolerates driving rain and dust ingress on exposed elevations, so no separate weatherproof enclosure is needed.
Ordering note
Lens focal length (2.8 mm or 3.6 mm) is fixed at manufacture — confirm field-of-view requirement before ordering, as it cannot be adjusted on site.
Specifications
- Brand
- Hikvision
- Model
- DS-2CE76H0T-ITMF
- Camera Type
- Analog Camera
- Smart Hybrid Light
- IR Only
- Connection Type
- Analogue
- NVR Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF.
- Lens
- 2.8 Fixed
- FOV
- Up to 103° Horizontal
- IR Range
- 30m
- Protection
- IP67
- Output
- 4-in-1 Signal
- Brackets
- DS-1280ZJ-XS DS-1272ZJ-110-TRS
- Dimensions
- Φ 82.6 mm × 90 mm × 79.37 mm (Φ 3.25" × 3.54" × 3.12")
Technical Specifications
Frequently Asked Questions
What resolution does the DS-2CE76H0T-ITMF support?
It outputs a maximum of 2560 × 1944 (5 MP) over HD-TVI.
Which video formats does it support?
It is 4-in-1, switchable between HD-TVI, AHD, CVI and CVBS, so it works with a wide range of analogue DVRs.
What lens options are available?
It's available with a fixed 2.8 mm or 3.6 mm lens; the focal length must be chosen at order time as it is not adjustable on site.
How far does the infrared illumination reach?
The EXIR 2.0 IR system provides night vision up to 30 metres.
Is this camera suitable for outdoor use?
Yes, the housing is IP67-rated for dust and water resistance, suitable for indoor and outdoor mounting.
