Product Description

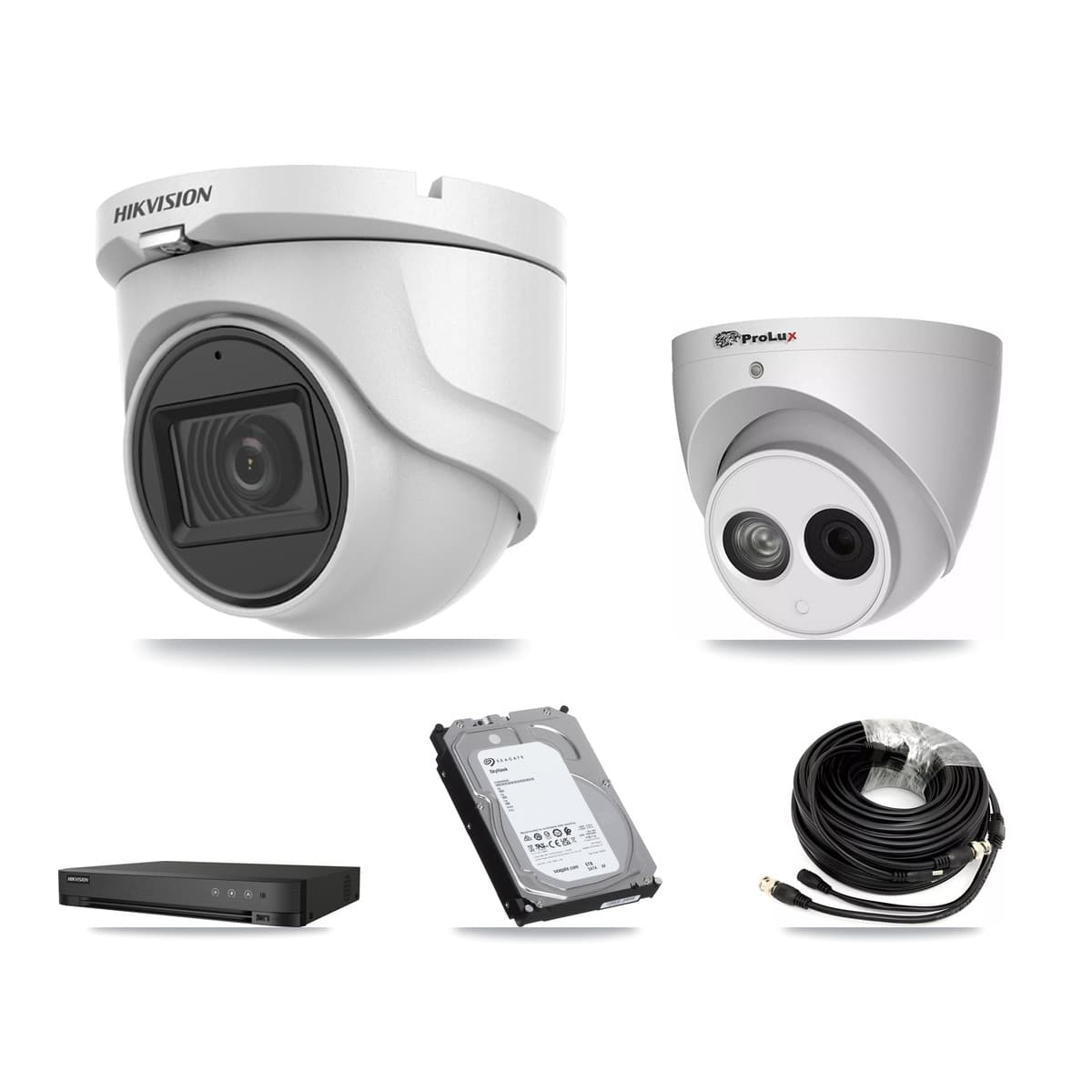

DS-2CE76H0T-ITMFS: 5MP audio-over-coax turret for analogue upgrades
MPN DS-2CE76H0T-ITMFS-2.8MM-W delivers 2560 × 1944 resolution — noticeably sharper than a standard 1080p analogue turret — with a built-in microphone that pushes audio down the same coaxial run as video.
Key specs
- Resolution: 5MP, 2560 × 1944
- Lens: 2.8mm fixed focal length
- IR: Smart IR, up to 30m range, True Day/Night IR-cut switching
- WDR: Digital WDR
- Audio: built-in mic, audio over coax to compatible Hikvision DVRs
- Video output: 4-in-1 switchable — HD-TVI / AHD / CVI / CVBS
- Housing: IP67, indoor/outdoor rated
Why it matters on site
Audio over coax removes the need for a separate audio cable run — useful on retrofit jobs where only coax is already pulled to entrances, reception desks or till points. The 2.8mm angle suits these tighter, closer-range views rather than long corridors or wide perimeters.
The 4-in-1 output means the same unit can be switched to match whatever DVR standard is already on-site — HD-TVI, AHD, CVI or CVBS — rather than stocking separate SKUs per protocol. Note that audio recording only functions when paired with a DVR that specifically supports audio-over-coax; check the head-end before quoting the job.
IP67 rating covers both indoor and exposed outdoor mounting positions without additional housing.
Specifications
- Brand
- Hikvision
- Model
- DS-2CE76H0T-ITMFS
- Camera Type
- Analog Camera
- Smart Hybrid Light
- IR Only
- Day/Night Mode
- Auto/Colour/BW (Black and White)
- Connection Type
- Analogue
- NVR Compatibility
- Hikvision, HiLook, Annke & any Hikvision-made OEM. Also compatible with any other NVR that supports ONVIF.
- Image Sensor
- 5 MP CMOS
- Max Resolution
- 2560 (H) × 1944 (V)
- Lens Type
- 2.8 mm fixed lens
- Wide Dynamic Range (WDR)
- Digital WDR
- Video Outputs
- Switchable TVI/AHD/CVI/CVBS
- Material
- Metal
- Dimensions
- 82.6 mm × 90 mm × 79.37 mm (3.25" × 3.54" × 3.12")
- IR Range
- Up to 30 m
- Protection
- IP67
- Brackets
- DS-1280ZJ-XS , DS-1272ZJ-110-TRS
- Noise Reduction
- 2D DNR
Technical Specifications
Frequently Asked Questions
Does this camera record audio to any DVR?
No — the built-in mic transmits audio over coax only to Hikvision DVRs that specifically support audio-over-coax functionality; a standard analogue DVR without this feature will not capture the audio channel.
What video standards does the DS-2CE76H0T-ITMFS support?
It's a 4-in-1 camera, switchable between HD-TVI, AHD, CVI and CVBS output, so it can match whatever standard the existing DVR uses.
What is the IR range and lens angle?
It uses Smart IR with a range up to 30 metres and ships with a 2.8mm fixed focal lens, suited to entrances, corridors and retail counters rather than long-distance views.
Is this camera suitable for outdoor use?
Yes, the housing is IP67-rated against dust and water ingress, making it suitable for both indoor and exposed outdoor installations.
