Hikvision 16-Channel 4MP – 5MP CCTV Kit — 2 5MP + 2 4MP Bullet Cameras + 6TB Recording
SKU: KIT-IP16-DS7616NXIK21-DS2CD1053G0IX04-6TB-1MCL4Copied!
Built on: Hikvision DS-7616NXI-K2/16P(E) + 2× Hikvision DS-2CD1053G0-IUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL. Keeps about 34 days of continuous footage on the included 6TB surveillance hard drive.
Low Stock
Only 4 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

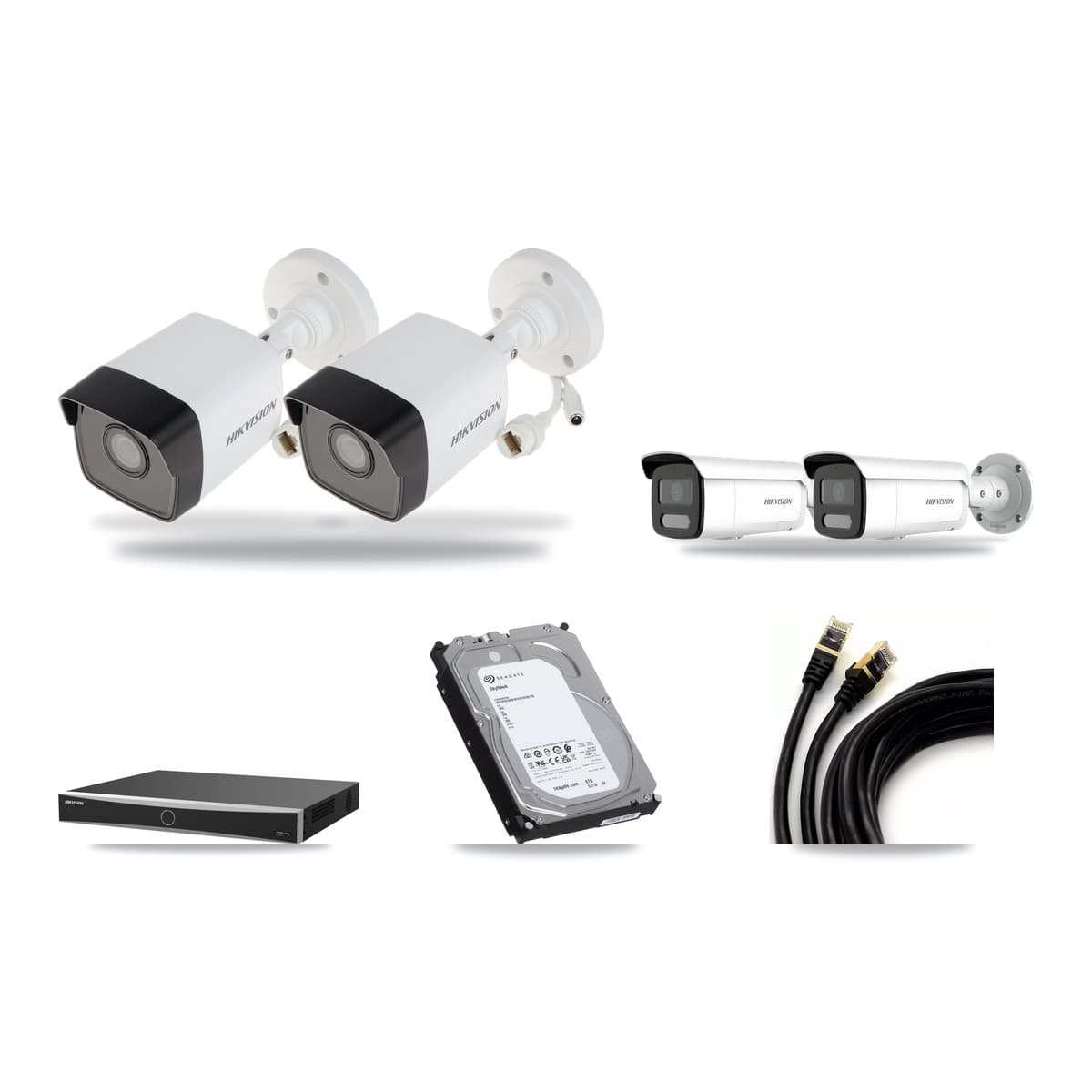

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a house — 4 cameras, keeps about 34 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR
The box that saves everything and runs the app
The cameras× 2
Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic
What goes on the wall
The cameras× 2
Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The cable× 4
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NXI-K2/16P(E) + 2× Hikvision DS-2CD1053G0-IUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL. 4 cameras at 4MP + 5MP — sized for a house or flat. The included 6TB surveillance hard drive holds about 34 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR; 2× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NXI-K2/16P(E) + 2× Hikvision DS-2CD1053G0-IUF + 2× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 16-channel Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR
- Cameras included
- 2× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 4MP + 5MP
- Storage
- 6TB surveillance HDD — about 34 days of footage, recording all 4 cameras continuously at high quality (H.265) — the load is 2× 5MP + 2× 4MP
- Cables & PSU included
- 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision DS-7616NXI-K2/16P(E) 16-Channel PoE AcuSense 4K NVR; 2× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 2× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
