Product Description
Key specs

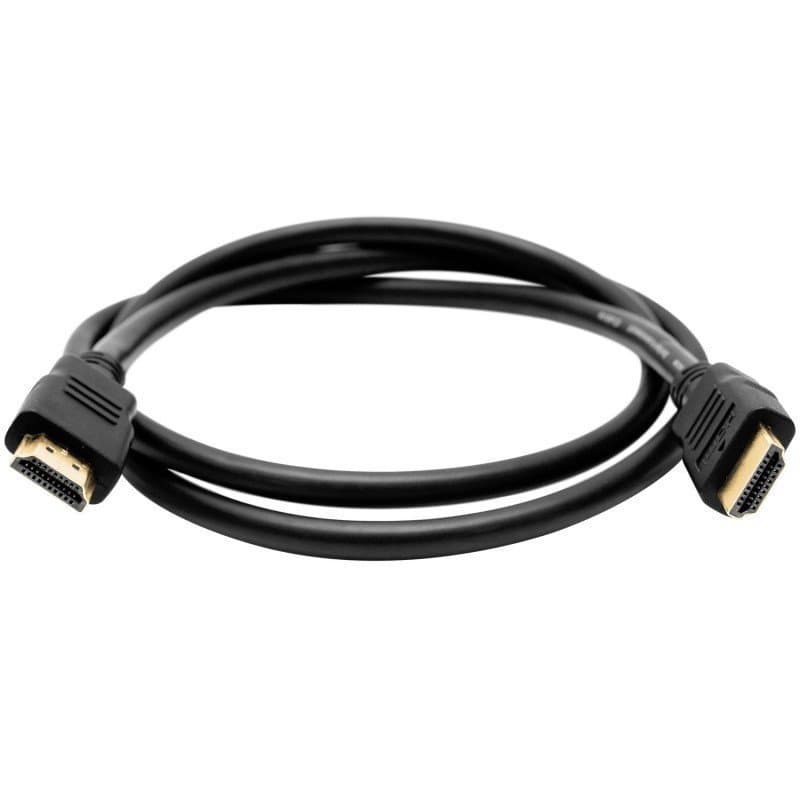

A 5m HDMI Type A male-to-male lead for running NVR/DVR outputs to monitors or projectors in racks and control rooms.
- Certification: High Speed HDMI 1.4b, backward compatible with HDMI 1.3
- Resolution: 4K UHD (3840x2160@30Hz) and 1080p@60Hz
- Bandwidth: 10.2Gbps, with Ethernet channel, ARC and CEC support
- Conductors: 24-26AWG OFC copper, foil + braid double shielding
- Contacts: nickel/gold-plated
- Jacket: PVC, 7-8mm OD; flat or round profile variants
- Content protection: HDCP 1.4 compliant
At 5m this is at the practical limit for a passive HDMI 1.4 run without an active booster or extender — plan accordingly if the recorder and display sit further apart in the rack.
The double shielding and EMI resistance are specified for use in cable trays alongside CCTV PSUs and Cat6 patch panels, where switch-mode noise and Ethernet crosstalk are common. Moulded strain relief is built for repeated reconnection during rack maintenance rather than a one-off domestic install.
Ethernet channel support allows IP-based display control where the connected hardware supports it; ARC returns audio to an AV receiver for operator monitoring; CEC lets compatible displays synchronise power states. HDCP 1.4 covers protected content playback from recorder outputs.
Listed under SKU HDMI-CABLE-5M, also carried as UNB-HDMI-CABLE-5M.
Specifications
- Length
- 5m
- Connector Type
- HDMI
Technical Specifications
Frequently Asked Questions
Does this cable support 4K resolution?
Yes, it's rated High Speed HDMI 1.4b and supports 4K UHD at 3840x2160@30Hz, alongside 1080p@60Hz.
Will 5m run without signal loss on a passive cable?
5m is stated as the practical limit for a passive HDMI 1.4 run — beyond that, an active booster or extender would be needed.
Is it suitable for use near CCTV power supplies and network patch panels?
Yes, it's specified with foil-plus-braid shielding and EMI resistance for installation alongside CCTV PSUs and Cat6 patch panels.
Does it support audio return and content protection?
It includes ARC and CEC support and is HDCP 1.4 compliant for protected content playback.
