Product Description
What it is

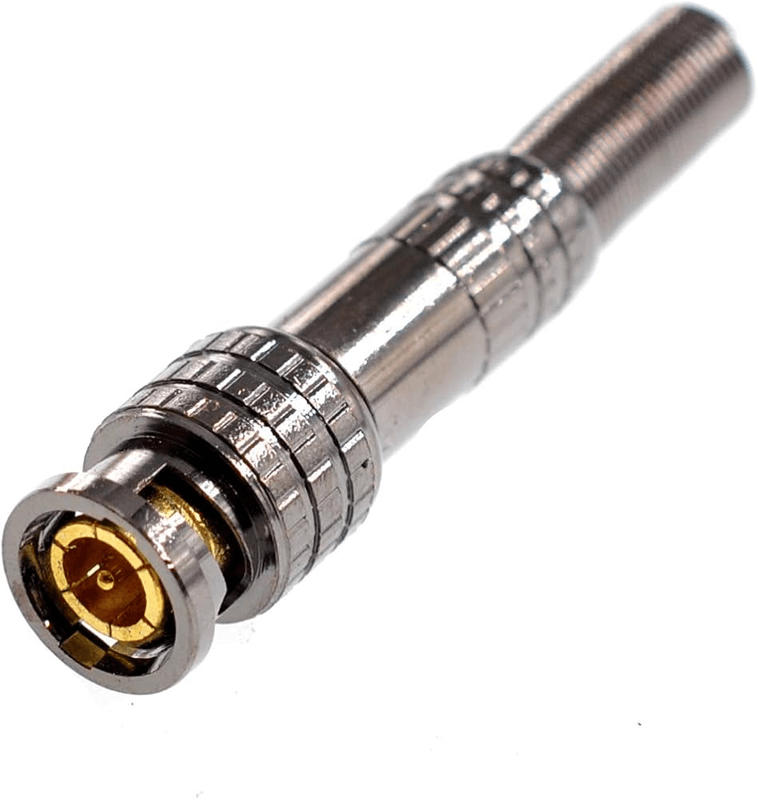

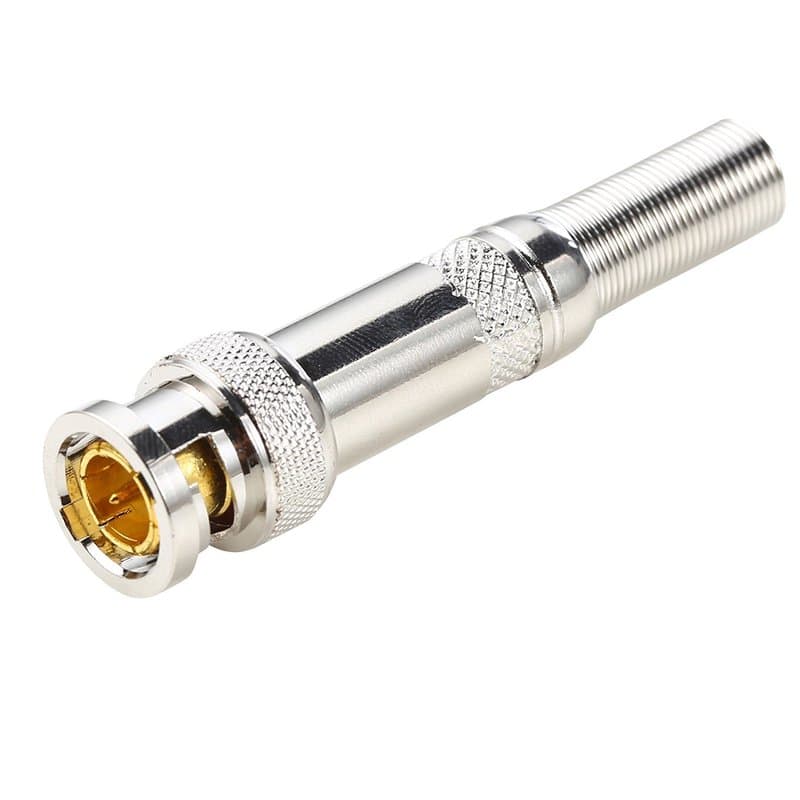

A 3-piece BNC male crimp connector for terminating RG59 coax runs on CCTV jobs — connector body, centre pin, and crimp sleeve, built for crimp tooling rather than screw or twist termination.
Signal path compatibility
It's rated for analogue CCTV and HD-over-coax formats: HD-TVI, AHD, and CVI. That covers the majority of coax-fed camera-to-DVR runs currently in the field, so one connector spec serves mixed-generation installs.
Why crimp over other terminations
Crimp termination gives a secure mechanical and electrical connection, which is what keeps signal integrity consistent over a run — loose or poorly-seated centre pins are a common cause of degraded picture on coax. The precision-machined metal body is built for repeat use across installs rather than one-off jobs.
Where it's used
Terminating RG59 cable ends at cameras, DVRs, and other BNC-compatible video equipment during new cable runs, connector replacement, or fault-finding on existing coax infrastructure.
Key specs
- Termination method: crimp (body, centre pin, crimp sleeve)
- Cable type: RG59 coax
- Format compatibility: analogue, HD-TVI, AHD, CVI
- Construction: precision-machined metal
- Pack: 3-piece connector set
Specifications
- Product Type
- BNC Male Crimp Connector
- Model / SKU
- BNC-MALE-PLUG-3PCS-PRO
- Connector Type
- BNC Male
- Compatible Cable
- RG59 coaxial cable
- Connector Design
- Three-piece construction
- Supported Video Formats
- Analogue CCTV, HD-TVI, AHD and CVI
Frequently Asked Questions
What cable does this BNC connector fit?
It's designed for RG59 coaxial cable, the standard used across most CCTV coax installs.
Does it work with HD-over-coax cameras, or just analogue?
Both — it's compatible with analogue CCTV as well as HD-TVI, AHD, and CVI formats.
How is the connector terminated onto the cable?
By crimping — the set includes the connector body, centre pin, and crimp sleeve, so a crimp tool is needed.
What's included in the 3-piece set?
The connector body, centre pin, and crimp sleeve — the three components needed for one crimp termination.
