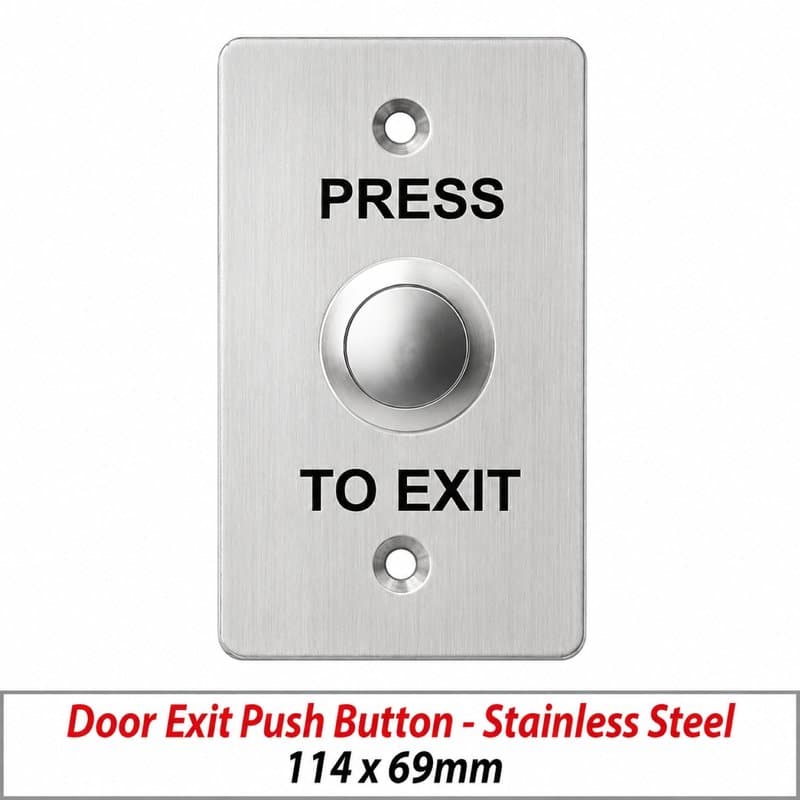

ACM-K14B Stainless Steel Door Exit Push Button 114×69mm

ACM-K14B-DOOR-EXIT is a stainless steel door exit push button for wired access control installs, plate sized approximately 114 × 69 mm.

Key specs

• SKU: ACM-K14B-DOOR-EXIT
• Plate size: approx. 114 × 69 mm, stainless steel construction
• Switch type: momentary contact — signals the controller/lock on press, releases on let-go
• Output compatibility: works with electric strikes, magnetic locks and door controllers used across most access control systems
• Mounting: flush plate design, fits standard wall back boxes or access control mounting plates
• Rating for environment: suitable for indoor and outdoor exit points
• Labelling: marked "PRESS TO EXIT" for clear user guidance in commercial settings

Application notes

On activation, the ACM-K14B-DOOR-EXIT sends a release signal to the connected access control panel or door controller, unlocking the door for egress. Because it's a straightforward momentary contact device, it drops into most existing access control wiring without needing a dedicated interface — check your controller's input spec before final wiring.

The stainless steel faceplate is built to resist wear, vandalism and general environmental exposure, making it a sensible spec for high-traffic commercial doors — offices, warehouses, apartment entrances and other controlled exit points where a robust, low-maintenance exit button is needed.

Use flush mounting into a standard back box for a clean commercial finish, keeping the "PRESS TO EXIT" label visible and unobstructed for compliant emergency egress signage where required.
