8-Channel 5MP – 4K CCTV Kit — 6 4K Turret + 1 5MP Cameras + 14TB Recording
SKU: KIT-HD8-PXD5108HS4KX-DS2CE78U0TLPX07-14TB-ZTYCQCopied!
Built on: Prolux PXD-5108HS-4K/X1 + 6× Hikvision DS-2CE78U0T-LPTS + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 24 days of continuous footage on the included 14TB hard drive.
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

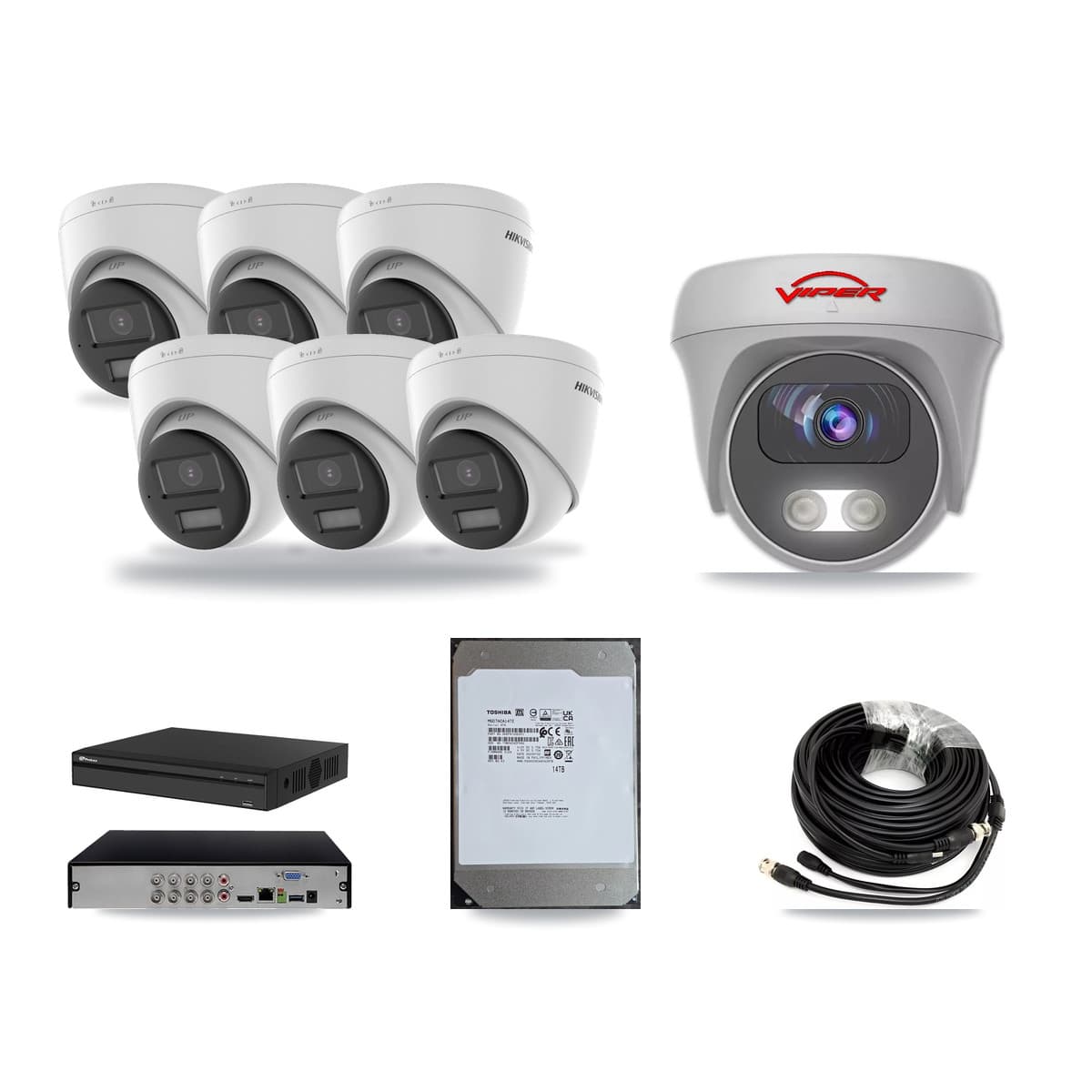

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 7 cameras, keeps about 24 days of footage, it reuses the round coax cable an older system left behind.
The recorder
PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
The box that saves everything and runs the app
The cameras× 6
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 7
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5108HS-4K/X1 + 6× Hikvision DS-2CE78U0T-LPTS + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 7 cameras at 5MP + 4K (8MP) — sized for a shop or small office. The included 14TB hard drive holds about 24 days of continuous recording — the estimate assumes recording all 7 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 6× Hikvision 4K Two Way Audio Fixed Turret; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5108HS-4K/X1 + 6× Hikvision DS-2CE78U0T-LPTS + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR
- Cameras included
- 6× Hikvision 4K Two Way Audio Fixed Turret; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP + 4K (8MP)
- Storage
- 14TB HDD — about 24 days of footage, recording all 7 cameras continuously at high quality (H.265) — the load is 6× 8MP + 1× 5MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× PROLUX PXD-5108HS-4K/X1 / 8 Channel 4K Penta-brid DVR; 6× Hikvision 4K Two Way Audio Fixed Turret; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 7× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
