What's in the box
Full parts list with quantities. Tap a line for its full spec.
4-camera kit · ~11 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
4 cameras supplied, taking 4 of 4 recorder channels. No spare channels — every channel is taken. Going bigger means a recorder with more channels.
Recording storage
1TB storage supplied. Retention: around 11 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The 1TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× XVR-3104HS-5MP-LITE 4-Channel 5MP Lite Digital Video Recorder
Records every channel and runs the app
The cameras
4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× 1TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

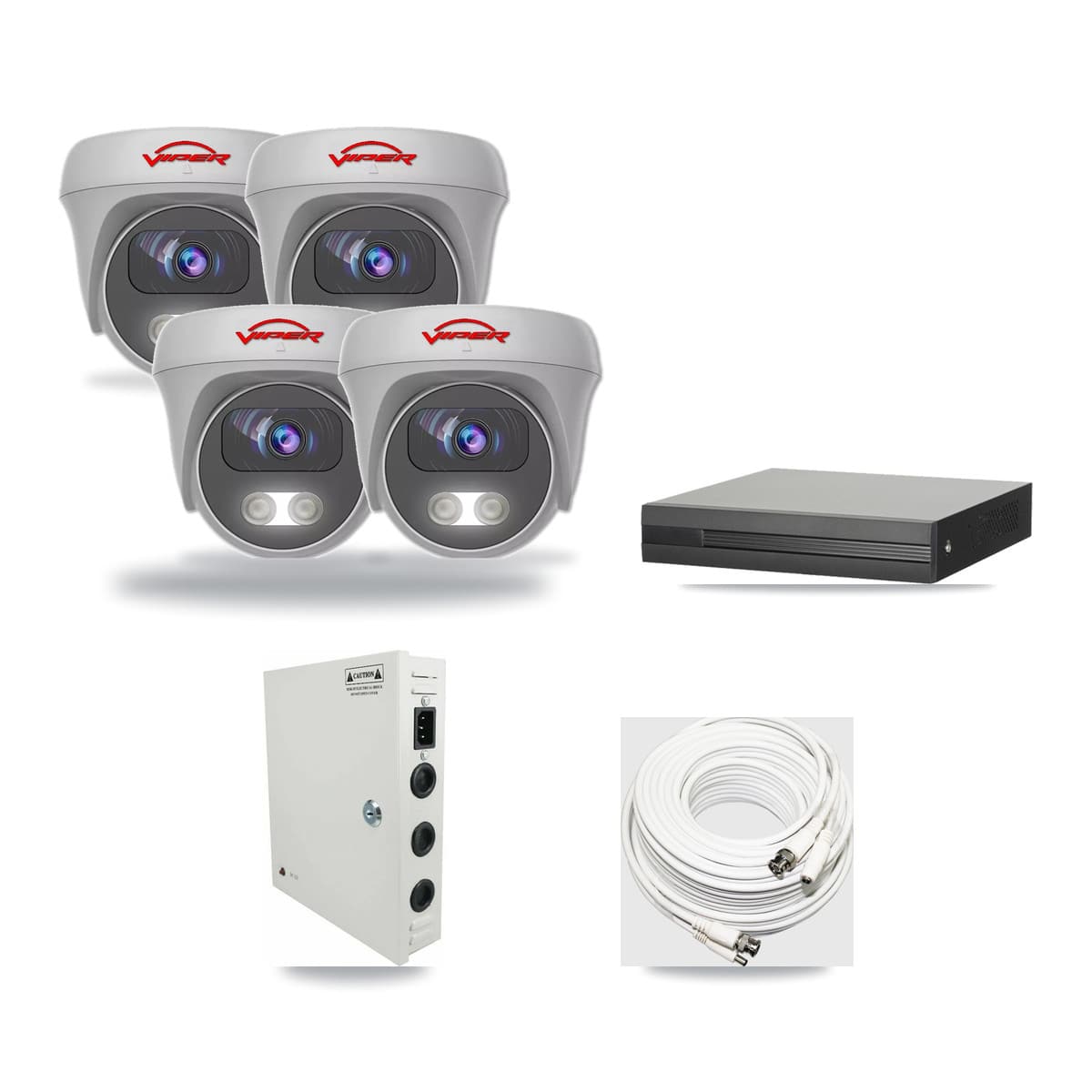

A complete 4-channel HD-over-coax CCTV kit built on the XVR-3104HS-5MP-LITE + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 4 cameras at 5MP — sized for a house or flat. The included 1TB hard drive holds about 11 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× XVR-3104HS-5MP-LITE 4-Channel 5MP Lite Digital Video Recorder; 4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× 1TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- XVR-3104HS-5MP-LITE + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 4-channel XVR-3104HS-5MP-LITE 4-Channel 5MP Lite Digital Video Recorder
- Cameras included
- 4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 1TB HDD — about 11 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× XVR-3104HS-5MP-LITE 4-Channel 5MP Lite Digital Video Recorder; 4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× 1TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
