8-Channel 4MP – 4K CCTV Kit — 4 4K + 1 4MP Turret Cameras + 10TB Recording (DH-XVR5108H Recorder)
SKU: KIT-HD8-DHXVR5108H4K-DS2CE78U0TLPX05-10TB-BXOPLCopied!
Built on: Dahua DH-XVR5108H-4KL-X-8P + 4× Hikvision DS-2CE78U0T-LPTS + 1× Prolux PXC-612C4W-A-POC. Keeps about 25 days of continuous footage on the included 10TB surveillance hard drive.
Low Stock
Only 2 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.

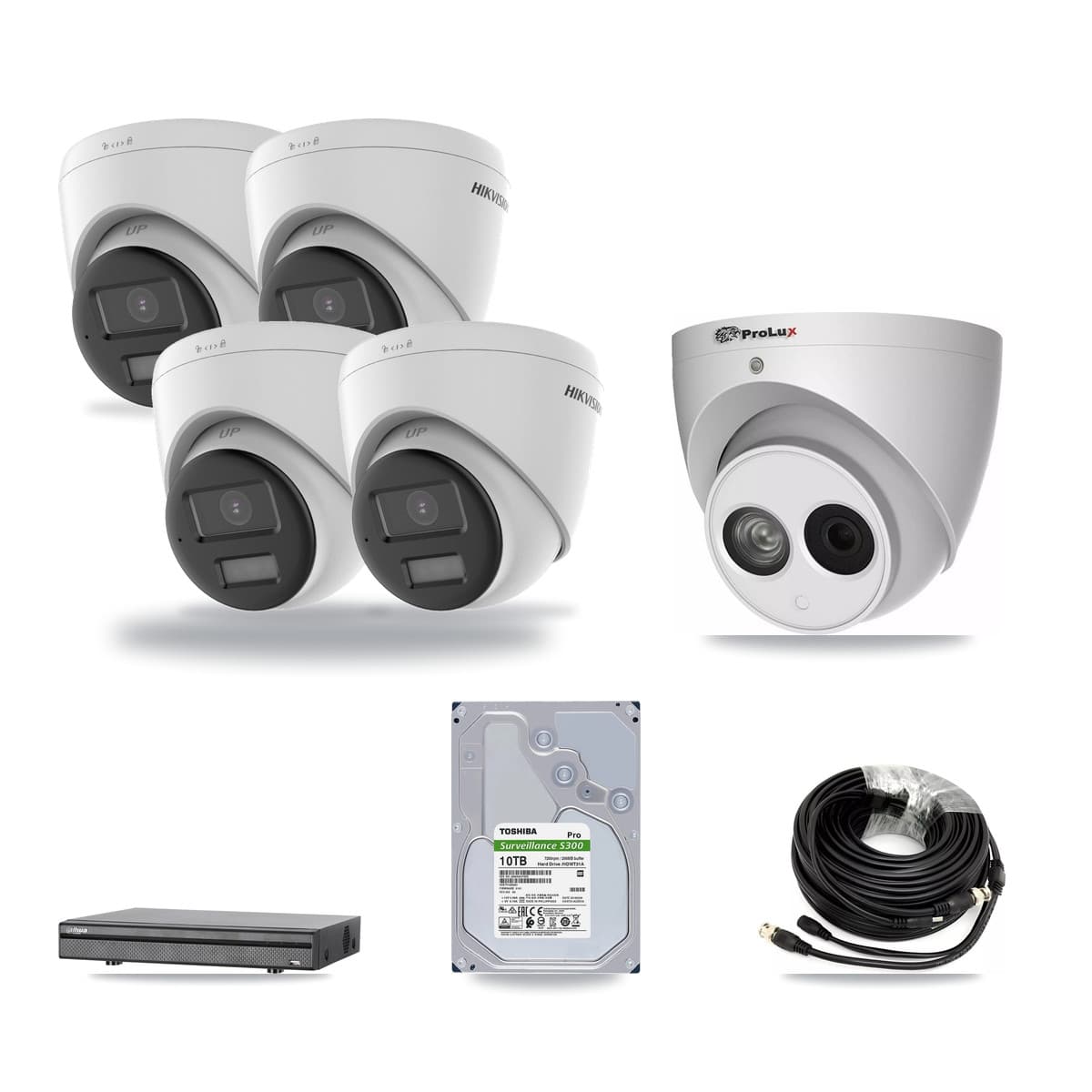

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 5 cameras, keeps about 25 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR
The box that saves everything and runs the app
The cameras× 4
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The hard drive
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 5
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Dahua DH-XVR5108H-4KL-X-8P + 4× Hikvision DS-2CE78U0T-LPTS + 1× Prolux PXC-612C4W-A-POC. 5 cameras at 4MP + 4K (8MP) — sized for a shop or small office. The included 10TB surveillance hard drive holds about 25 days of continuous recording — the estimate assumes recording all 5 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 5× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR; 4× Hikvision 4K Two Way Audio Fixed Turret; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 5× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua DH-XVR5108H-4KL-X-8P + 4× Hikvision DS-2CE78U0T-LPTS + 1× Prolux PXC-612C4W-A-POC
- Recorder
- 8-channel Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR
- Cameras included
- 4× Hikvision 4K Two Way Audio Fixed Turret; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
- Camera resolution
- 4MP + 4K (8MP)
- Storage
- 10TB surveillance HDD — about 25 days of footage, recording all 5 cameras continuously at high quality (H.265) — the load is 4× 8MP + 1× 4MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 5× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× Dahua XVR5108H-4KL-X-8P 8 Channel 4K Penta-brid PoC Hybrid DVR; 4× Hikvision 4K Two Way Audio Fixed Turret; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 1× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 5× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
