8-Channel 2MP – 5MP CCTV Kit — 7 2MP PTZ + 1 White 5MP Cameras + 6TB Recording (PXD-5208AN Recorder)
SKU: KIT-HD8-PXD5208AN4KL-DS2AE4225TAVX08-6TB-125ROCopied!
Built on: Prolux PXD-5208AN-4KL-X-8P + 7× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 30 days of continuous footage on the included 6TB surveillance hard drive.
Low Stock
Only 1 left - order soon!
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

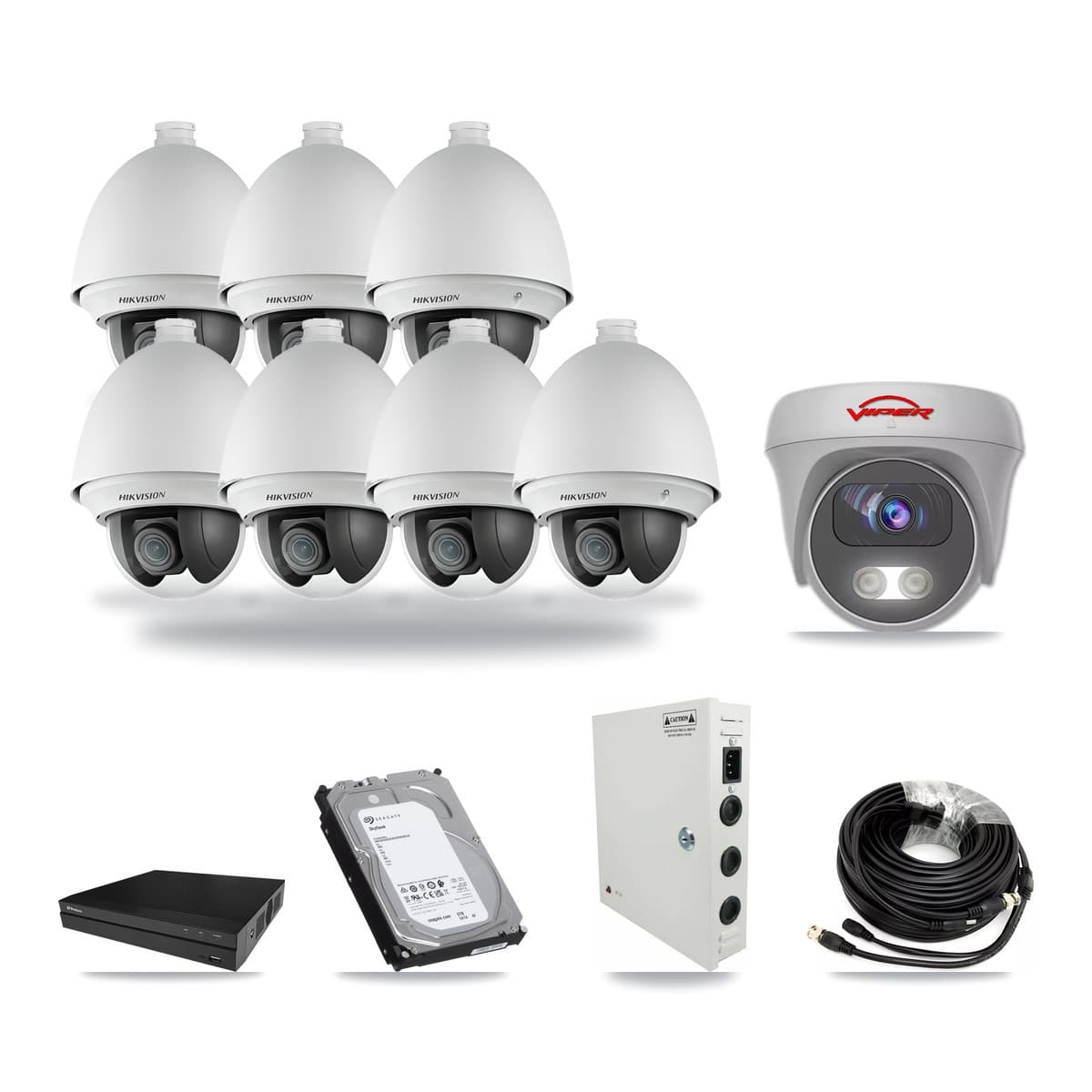

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 8 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
The box that saves everything and runs the app
The cameras× 7
Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
What goes on the wall
The cameras
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
One plug that powers the cameras
The cable× 8
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 7× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 8 cameras at 2MP + 5MP — sized for a shop or small office. The included 6TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 7× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 7× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 7× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 2MP + 5MP
- Storage
- 6TB surveillance HDD — about 30 days of footage, recording all 8 cameras continuously at high quality (H.265) — the load is 7× 2MP + 1× 5MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 7× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
