Product Description

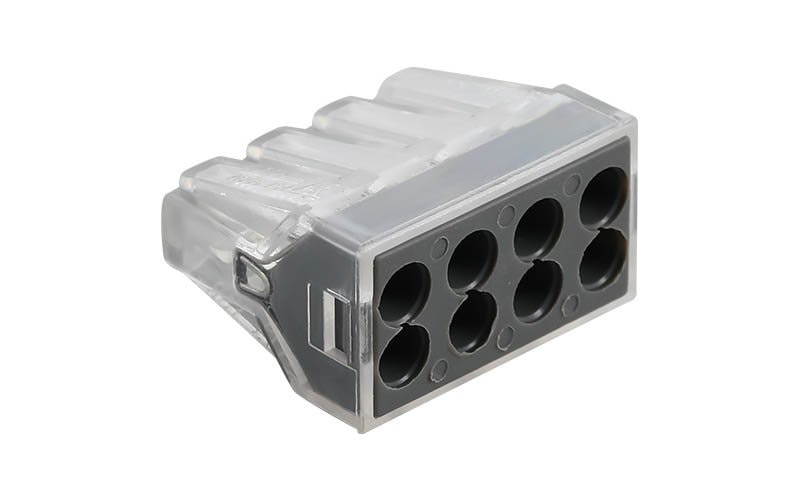

The PCT-108 is an 8-port push-wire inline connector for low-voltage distribution work on CCTV and structured cabling jobs. Spring-clamp termination means each conductor pushes straight in — no screwdriver, no crimp tool, no ferrules to fit.
Key specs
- 8 independent ports per connector body, for splitting power or joining runs in a single enclosure
- Push-in spring clamp termination — tool-free insertion
- Accepts solid and stranded copper conductors, matching typical CCTV power leads, alarm cable and low-voltage control wiring

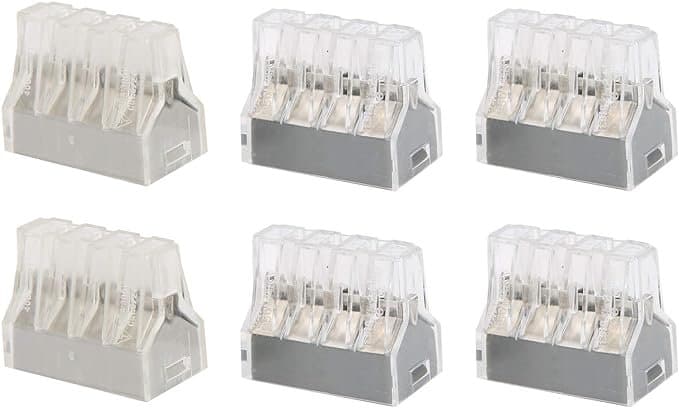

- Transparent housing so insertion depth and conductor contact can be checked visually before closing up the enclosure
- Compact inline body, sized to fit inside junction boxes, camera back-boxes and network enclosures
Where it fits on a job
Use it for distributing 12V/24V power feeds to multiple camera drops from a single incoming supply, joining conductors mid-run, or tidying control wiring inside a housing where space is tight. Because termination is tool-free, it's a fast option for first-fix or retrofit work where re-terminating with crimp connectors would slow the job down.
No stated IP or fire rating is given for this connector — treat it as an indoor/enclosure-housed component rather than a direct outdoor termination, and site it inside a sealed box on external runs.
Technical Specifications
Frequently Asked Questions
How many conductors can one PCT-108 connector terminate?
It has 8 independent push-wire ports, so up to eight conductors can be terminated in a single connector body.
Does the PCT-108 need any special tools to install?
No — it uses push-in spring clamp termination, so conductors are inserted directly without screwdrivers or crimping tools.
What conductor types does it accept?
It's suitable for both solid and stranded copper conductors, as used in typical CCTV power and low-voltage control cabling.
Can I check the connection has been made correctly?
Yes — the housing is transparent, allowing visual confirmation that each conductor is fully inserted and seated.
