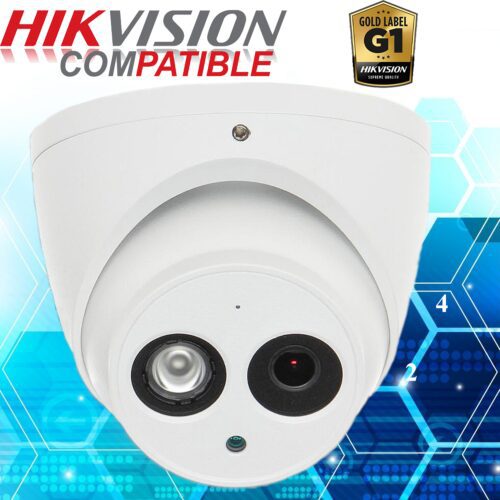

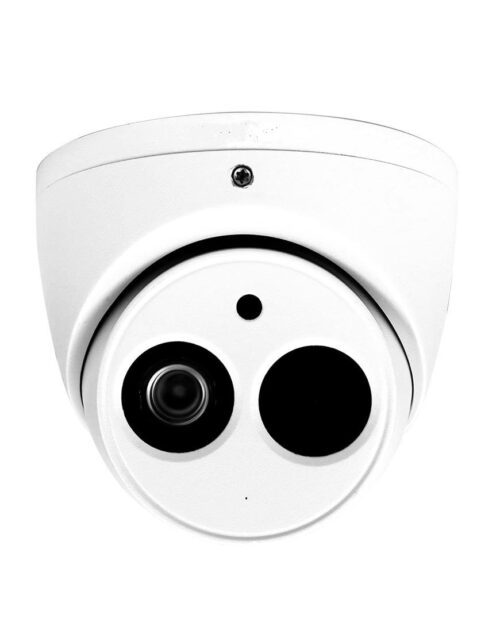

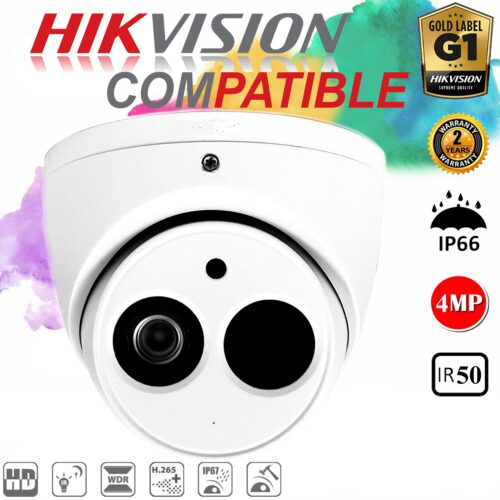

Unbranded – 4MP 3.6mm HD Turret Camera
Model: HDT-4MP-N30DH-WA-POC-3.6mm-W
4 Megapixel CMOS
POC (power over co-ax)
Up to 200m POC transmission distance
Recording 4MP@25fps
Day & Night Camera
3.6mm fixed lens
Up to 50m IR distance depending on conditions
Smart IR – adjusts IR lighting intensity
IP66 Rated – suitable for indoor or outdoor use
Description
About Unbranded – 4MP 3.6mm HD Turret Camera
Experience superior 4MP video and the simplicity of reusing existng coaxial infrastructure with HDCVI. The Lite series 4MP HDCVI camera features a compact design and offers a high quality image with rich details at a friendly price. This model is a PoC camera which can be powered by PoC XVR over a single coaxial cable with video, requiring no separate power supplies. PoC reduces time and cost for users, making it an ideal choice for applications with complex deployment but a tight budget.
Functions
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial
cable simultaneously, i.e. video, audio*, data and power. Dual-way data
transmission allows the HDCVI camera to interact with the HCVR, such as
sending control signal or triggering alarm. Moreover, HDCVI technology
supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees long-distance and real-time transmission
without any loss. It supports up to 700m for 4MP HD video via coaxial
cable, and up to 300m via UTP cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from tradional
analog surveillance system, making itself a best choice for investment
protection. HDCVI system can seamlessly upgrade the traditional ana-
log system without replacing existing coaxial cabling. The plug and
play approach enables full HD video surveillance without the hassle of
configuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight
performance. Smart IR is a technology to ensure brightness uniformity
in B/W image under low illumination. Dahua’s unique Smart IR adjusts to
the intensity of camera’s infrared LEDs to compensate for the distance of
an object, and prevents IR LEDs from overexposing images as the object
come closer to the camera.
HD/SD Switchable
The camera supports switchable HDCVI high definition video output and
CVBS standard definition video output. The two formats can be switched
over through OSD menu or by PFM820(UTC controller). This feature makes
the camera to be compatible with both HCVRs and existing analog DVRs and
also facilitates debugging through analog testers.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings
to meet the requirements of different monitoring scenes. The OSD menu
includes configurations such as backlight mode, day/night, white balance,
privacy mask and motion detect. The camera supports 11 languages for
OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese,
Italian, Japanese, Korean, Russian and Polish.
Protection
The camera’s outstanding reliability is unsurpassed due to its rugged design.
The camera is protected against water and dust with IP67 ranking, making it
suitable for indoor or outdoor environments.
With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the
camera is designed for extreme temperature environments.
Supporting ±25% input voltage tolerance, this camera suits even the
most unstable power supply conditions. Its 4KV lightning racing provides
protection against the camera and its structure from the effects of lightning.
