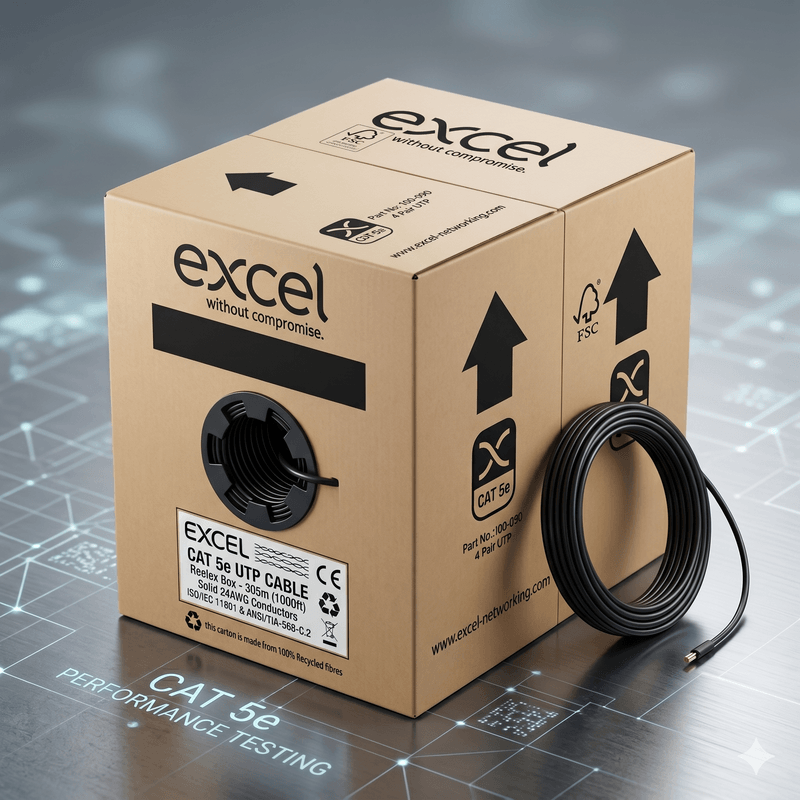

Box Of 305m Excel External Copper Cat5e Network Cable U/UTP Outdoor Euroclass Fca 305m Black
SKU: CAT5e-305M-PE-BLACK-Excel-solid-copperCopied!
Product Name Excel External Copper Cat5e Network Cable U/UTP Outdoor Euroclass Fca 305m Black SKU 011602 EAN 5054338116020 MPN 100-090 Conductor Construction Solid Colour Black Ethernet Version Cat5E Copper Features European, Suitable for CCTV, Suitable for POE, Suitable for VOIP Phones Jacket/Sheath Material PE (Polyethylene) Length 305m Type Cable, External RoHS Compliant Yes
Low Stock
Only 1 left - order soon!
Product Description
Excel Cat5e cable U/UTP PE external Grade Fca are manufactured and tested to ISO 11801 EN 50173 and ANSI/TIA‐C Cat 5e specifications 305m boxes. Each cable consists of 8 colour coded solid copper polyethylene insulated conductors twisted together to form four pairs.
The whole cable is produced in a PE sheath which is metre marked and labelled with part code and DoP information.
Cat5e Solid Copper Cable
U/UTP No Overall Screening
No Conductor Screening
Outer sheath colour Black
Reaction-to-fire class according to EN 13501-6: Fca
24 AWG size conductors
UV Exposure tested in accordance with ASTM G154 & G155
Conductor surface: Bare
AWG size: 24
Conductor category: Class 1 = solid
Total number of cores: 8
Stranding element: Pairs
Specification core insulation: PE
Specifications
- Length
- 305m
- Material
- Copper
- Colour
- Black
