What's in the box
Full parts list with quantities. Tap a line for its full spec.
7-camera kit · ~132 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
7 cameras supplied, taking 7 of 8 recorder channels. 1 channel spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
20TB storage supplied. Retention: around 132 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
Records every channel and runs the app
The cameras
7× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

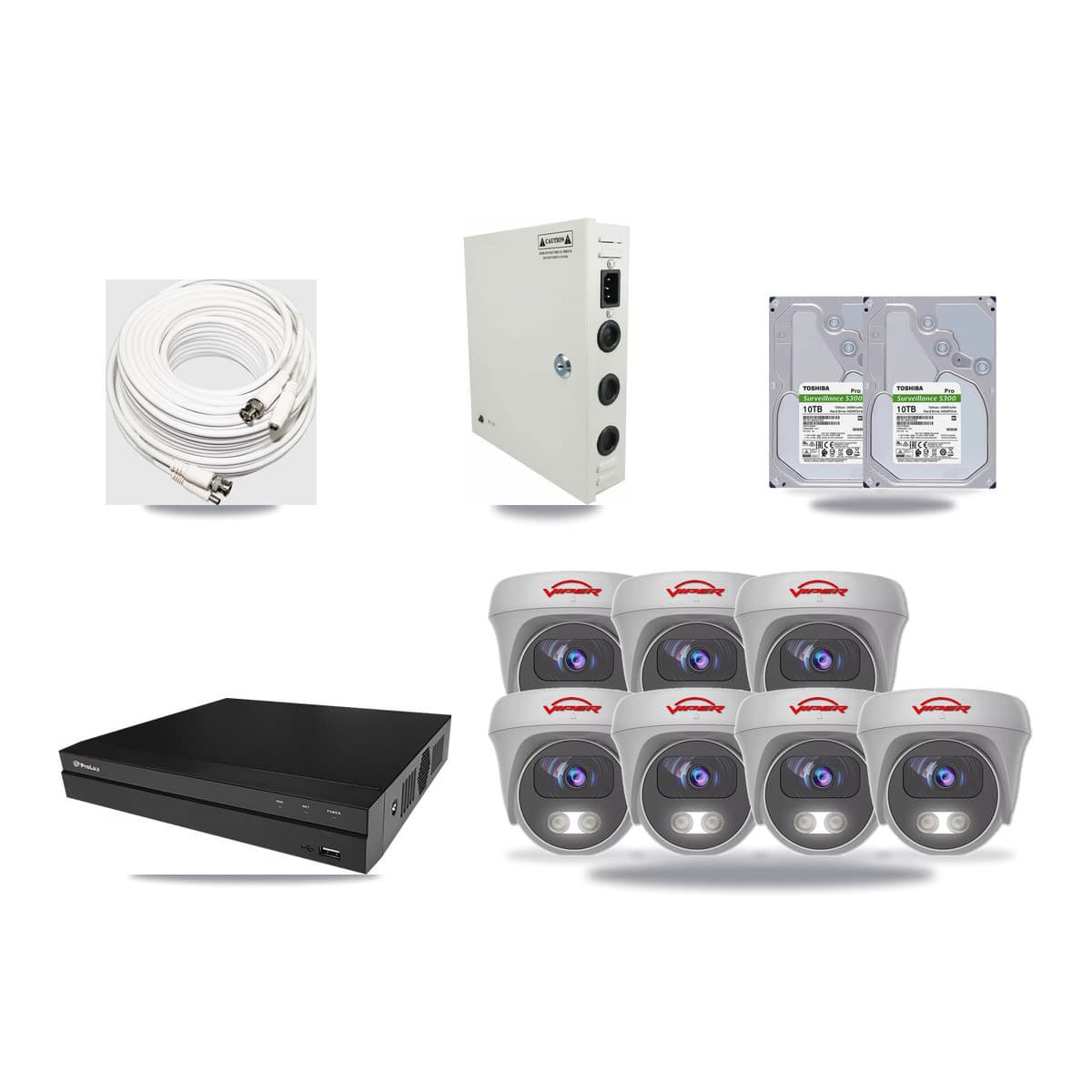

Trade-ready 8ch HD analogue kit — Prolux PXD-5208AN-4KL-X-8P DVR with 7 off Viper VIPER-5MP-3K-AOC-WHITE-2.8MM cameras. 5MP on the cameras, Smart Light for colour at night. 2 off 10TB surveillance HDDs (20TB) supplied: approx 132 days' retention with all 7 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 7 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Complete kit, nothing extra to bring to site. Suits small commercial installs. Kit list: 1 off ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 7 off VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 2 off Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 7 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 7× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 7× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 132 days of footage, recording all 7 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 7× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 7× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
