What's in the box
Full parts list with quantities. Tap a line for its full spec.
4-camera kit · ~57 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
4 cameras supplied, taking 4 of 4 recorder channels. No spare channels — every channel is taken. Going bigger means a recorder with more channels.
Recording storage
5TB storage supplied. Retention: around 57 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
Records every channel and runs the app
The cameras
4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

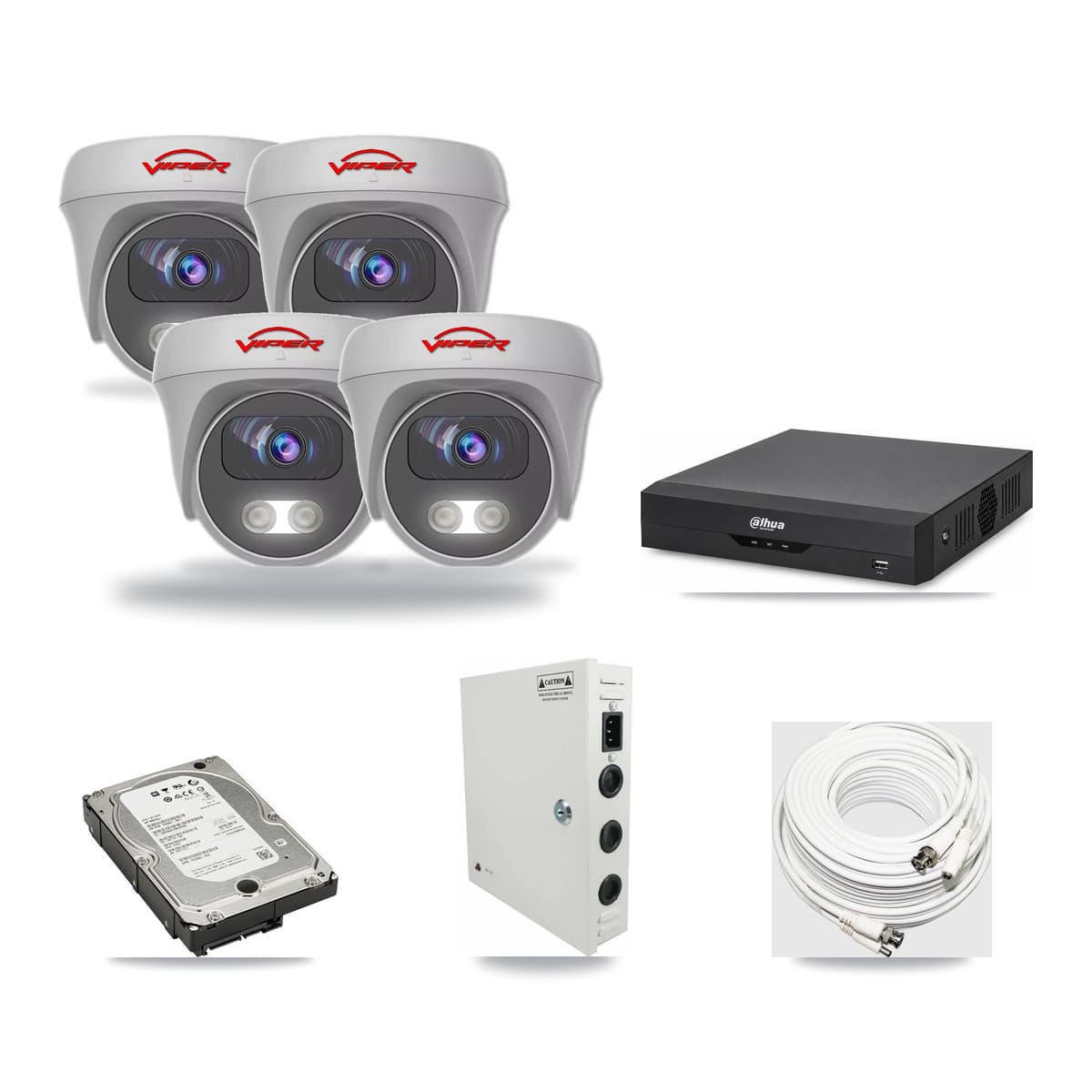

Trade-ready 4ch HD analogue kit — Dahua DH-XVR5104HS-4KL-I2 DVR with 4 off Viper VIPER-5MP-3K-AOC-WHITE-2.8MM cameras. 5MP on the cameras, Smart Light for colour at night, WizSense AI on the recorder. 5TB HDD supplied: approx 57 days' retention with all 4 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 4 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Complete kit, nothing extra to bring to site. Suits domestic installs. Kit list: 1 off Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4 off VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1 off Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. DMSS app compatible for customer handover.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua DH-XVR5104HS-4KL-I2 + 4× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 4-channel Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
- Cameras included
- 4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 5TB HDD — about 57 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 4× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
