Product Description

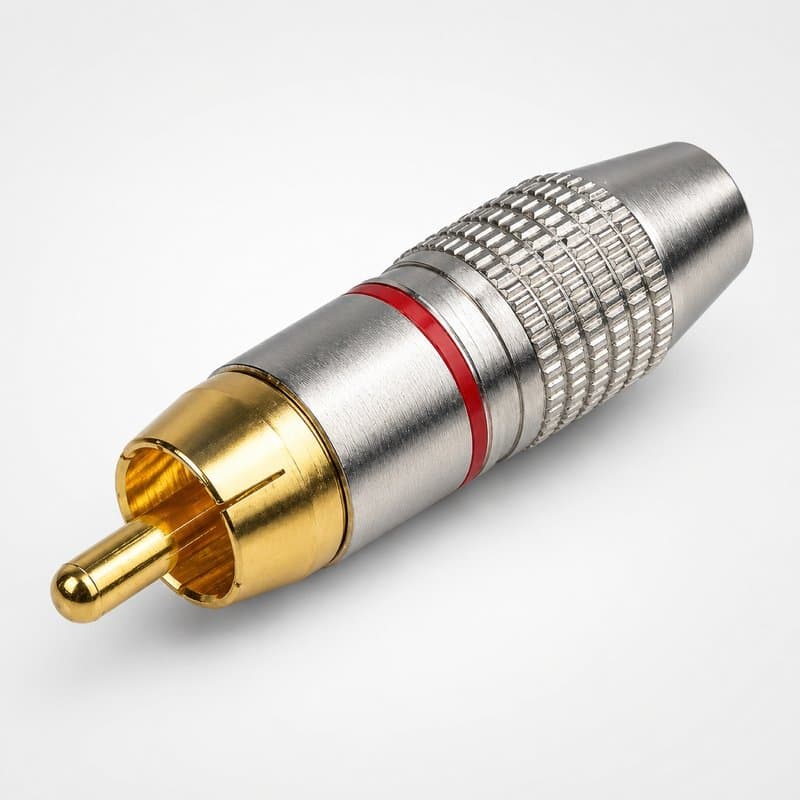

Metal-bodied RCA phono male plug with solder termination, for terminating audio cable on CCTV and AV installs.
Key specs
- Connector type: RCA phono male plug
- Termination: solder (cable conductors soldered to connector contacts)
- Body: metal construction, for mechanical durability and shielding
- Cable compatibility: coaxial and twin-core low-voltage signal cable
- Equipment compatibility: DVR recorders, CCTV microphones, amplifiers and other RCA-compatible AV equipment
Why solder termination
Solder termination gives a permanent, low-resistance joint between the cable conductor and connector contact, which reduces signal loss and interference on the audio run compared with a loose or crimped connection. The metal housing adds shielding around that joint, useful where audio cable runs alongside power or data cabling in a CCTV install.
Use case
This is a bench/field termination part for installers building or repairing audio leads on DVR-based CCTV systems — soldering onto coax or twin-core cable to create a custom-length RCA lead, or replacing a damaged plug on an existing microphone or amplifier cable.
No crimp or screw-terminal option is described for this part — termination is solder only, so a soldering iron and basic cable-prep tools are needed on site.
Specifications
- Product Type
- RCA Phono Male Solder Connector
- Connector Type
- RCA Male (Phono)
- Cable Compatibility
- Coaxial audio and twin-core low-voltage signal cable
Technical Specifications
Frequently Asked Questions
How is this RCA connector terminated?
By solder — the cable conductors are soldered directly to the connector contacts for a permanent, secure joint.
What cable types does it work with?
It's designed for coaxial and twin-core low-voltage audio cable, as used in CCTV audio and AV cable assembly.
What equipment is it compatible with?
DVR recorders, CCTV microphones, amplifiers and other RCA-compatible AV equipment.
Is the body plastic or metal?
Metal — the metal housing is intended to add durability and shielding around the solder joint.
