Hikvision 16-Channel 4MP CCTV Kit — 14 DS-2CD1343G2 Turret Cameras + 2× 10TB Recording
SKU: KIT-IP16-DS7616NIM216-DS2CD1343G2LX14-2X10TB-14UIJCopied!
Built on: Hikvision DS-7616NI-M2/16P + 14× Hikvision DS-2CD1343G2-LIUF/SL. Keeps about 33 days of continuous footage on the included 2× 10TB surveillance hard drives (20TB in total).
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.

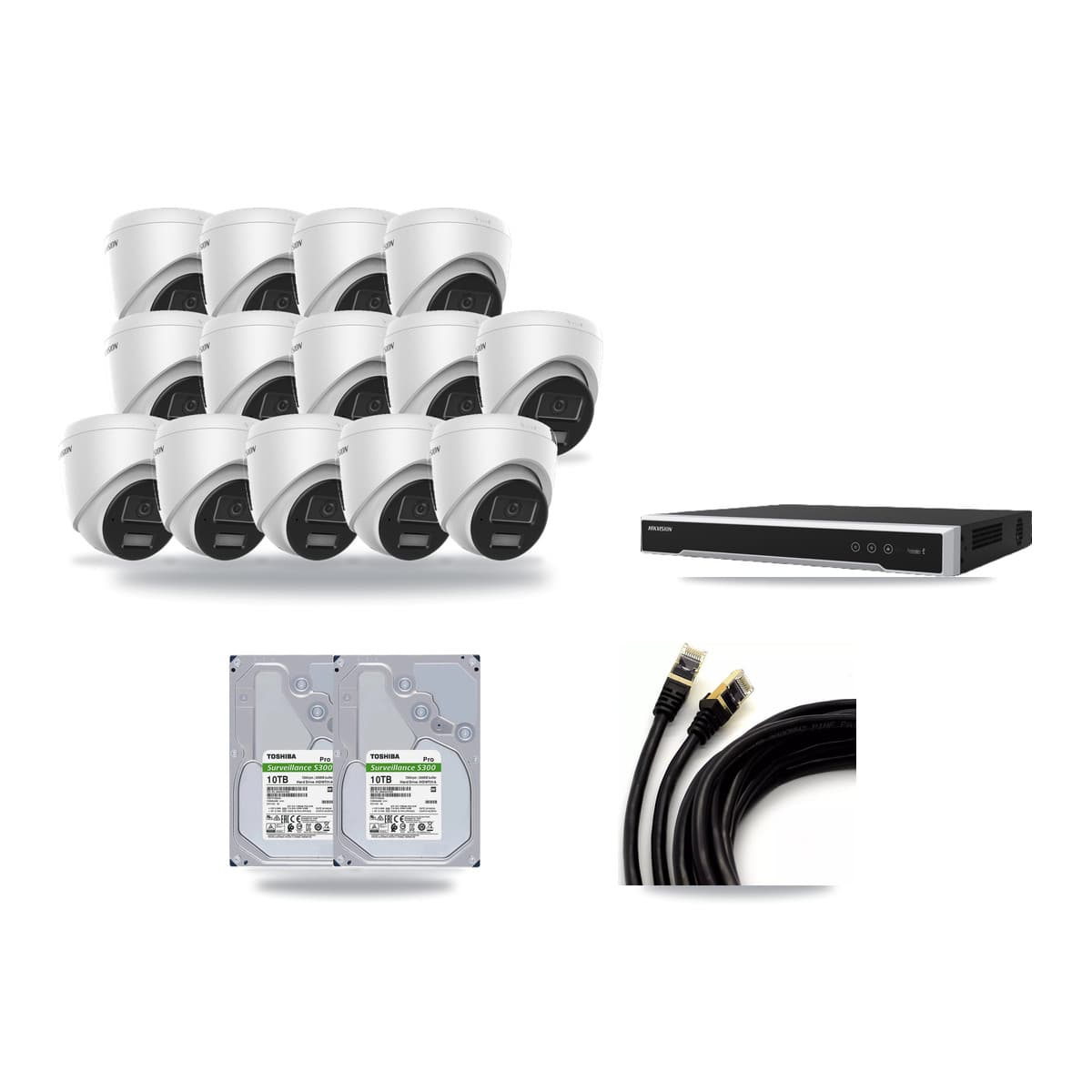

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 14 cameras, keeps about 33 days of footage, one network cable per camera carries the picture and the power.
Price on request
One part of this kit — the Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 14
Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera
What goes on the wall
The hard drive× 2
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The cable× 14
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 14× Hikvision DS-2CD1343G2-LIUF/SL. 14 cameras at 4MP — sized for a larger property or yard. The included 2× 10TB surveillance hard drives (20TB in total) hold about 33 days of continuous recording — the estimate assumes recording all 14 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 14× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 14× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 14× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 14× Hikvision DS-2CD1343G2-LIUF/SL
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 14× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera
- Camera resolution
- 4MP
- Storage
- 2× 10TB (20TB total) surveillance HDD — about 33 days of footage, recording all 14 cameras continuously at high quality (H.265)
- Cables & PSU included
- 14× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 14× Hikvision DS-2CD1343G2-LIUF/SL 4MP Smart Hybrid Light PoE Turret Camera; 2× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 14× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
