Hikvision 16-Channel 4MP – 5MP CCTV Kit — 10 5MP + 5 4MP Bullet Cameras + 14TB Recording
SKU: KIT-IP16-DS7616NIM216-DS2CD1053G0IX15-14TB-1GA1YCopied!
Built on: Hikvision DS-7616NI-M2/16P + 10× Hikvision DS-2CD1053G0-IUF + 5× Hikvision DS-2CD2T47G2H-LISU/SL. Keeps about 21 days of continuous footage on the included 14TB hard drive.
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

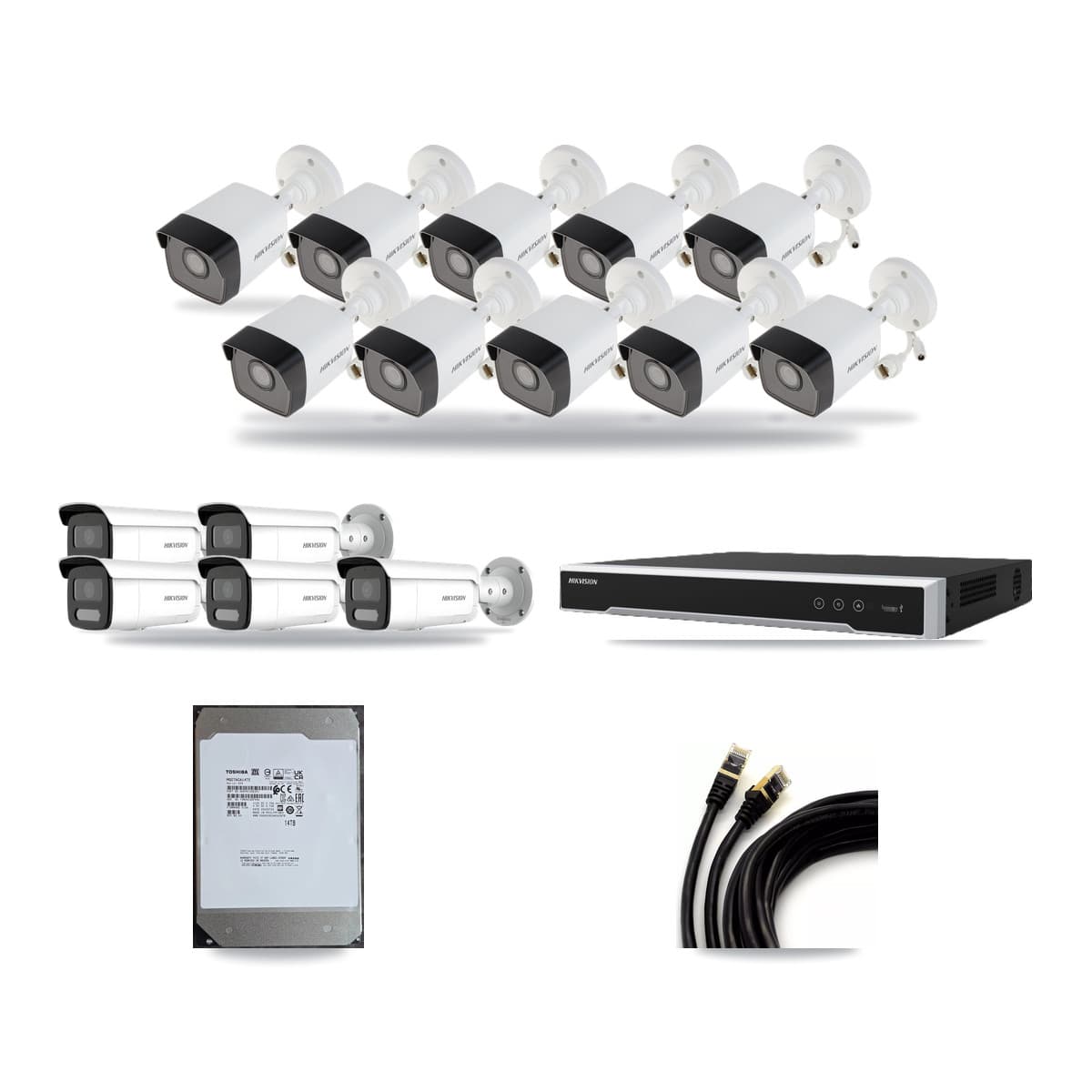

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 15 cameras, keeps about 21 days of footage, one network cable per camera carries the picture and the power.
The recorder
Hikvision 16-ch 1U 16 PoE 8K NVR
The box that saves everything and runs the app
The cameras× 10
Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic
What goes on the wall
The cameras× 5
Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
What goes on the wall
The hard drive
Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM
Where the footage is kept
The cable× 15
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel IP (PoE) CCTV kit built on the Hikvision DS-7616NI-M2/16P + 10× Hikvision DS-2CD1053G0-IUF + 5× Hikvision DS-2CD2T47G2H-LISU/SL. 15 cameras at 4MP + 5MP — sized for a larger property or yard. The included 14TB hard drive holds about 21 days of continuous recording — the estimate assumes recording all 15 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 15× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. In the box: 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 10× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 5× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 15× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7616NI-M2/16P + 10× Hikvision DS-2CD1053G0-IUF + 5× Hikvision DS-2CD2T47G2H-LISU/SL
- Recorder
- 16-channel Hikvision 16-ch 1U 16 PoE 8K NVR
- Cameras included
- 10× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 5× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera
- Camera resolution
- 4MP + 5MP
- Storage
- 14TB HDD — about 21 days of footage, recording all 15 cameras continuously at high quality (H.265) — the load is 10× 5MP + 5× 4MP
- Cables & PSU included
- 15× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 1U 16 PoE 8K NVR; 10× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 5× Hikvision DS-2CD2T47G2H-LISU/SL 4MP ColorVu Hybrid Light PoE Bullet Camera; 1× Toshiba MG07ACA14TE 14TB 3.5" SATA III Enterprise HDD 7200RPM; 15× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
