What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
4 cameras included, keeps about 17 days of footage, uses analogue cameras; check existing coax cable condition and compatibility before reuse.
Recorder capacity
4 included cameras use 4 of the recorder’s 4 channels. All stated channels are occupied. A larger system needs a recorder with additional capacity.
Recording storage
6TB storage is included. Estimated recording time: about 17 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
The recorder
Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
The box that saves everything and runs the app
The cameras× 4
Hikvision 4K Fixed Turret Camera
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

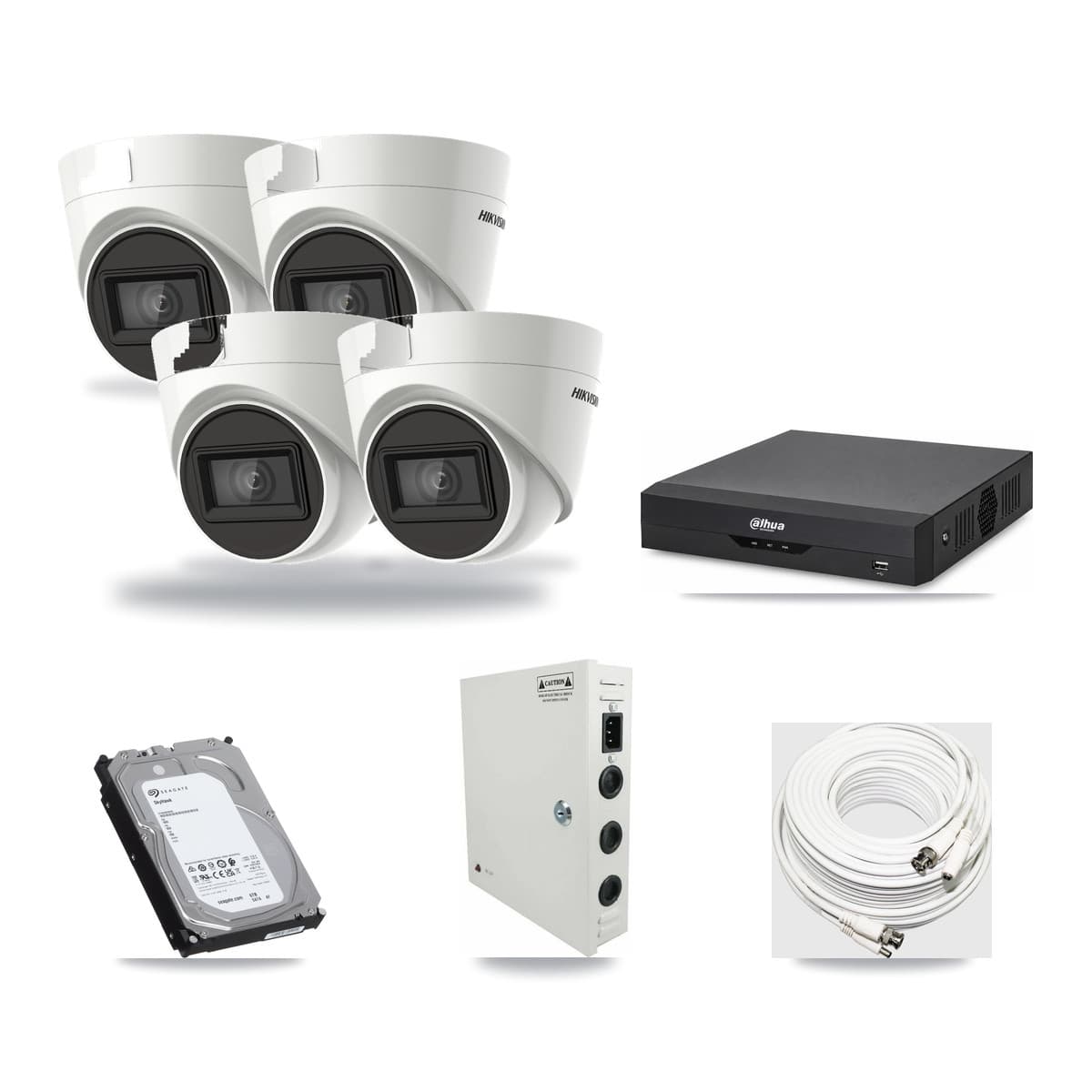

A complete 4-channel HD-over-coax CCTV kit built on the Dahua DH-XVR5104HS-4KL-I2 + 4× Hikvision DS-2CE78U1T-IT3F. 4 cameras at 4K (8MP) — sized for a house or flat. The included 6TB surveillance hard drive holds about 17 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4× Hikvision 4K Fixed Turret Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua DH-XVR5104HS-4KL-I2 + 4× Hikvision DS-2CE78U1T-IT3F
- Recorder
- 4-channel Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
- Cameras included
- 4× Hikvision 4K Fixed Turret Camera
- Camera resolution
- 4K (8MP)
- Storage
- 6TB surveillance HDD — about 17 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4× Hikvision 4K Fixed Turret Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
