Hikvision & Dahua 4-Channel 5MP CCTV Kit — 3 DS-2CE12KF3T Bullet + 1 DS-2CE70K0T Turret Cameras + 6TB Recording
SKU: KIT-HD4-DHXVR5104HS4-DS2CE12KF3TPX04-6TB-1Y02JCopied!
Built on: Dahua DH-XVR5104HS-4KL-I2 + 3× Hikvision DS-2CE12KF3T-PIRXO + 1× Hikvision DS-2CE70K0T-PTLTS. Keeps about 34 days of continuous footage on the included 6TB surveillance hard drive.
In Stock
Ready to ship • 18 available
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

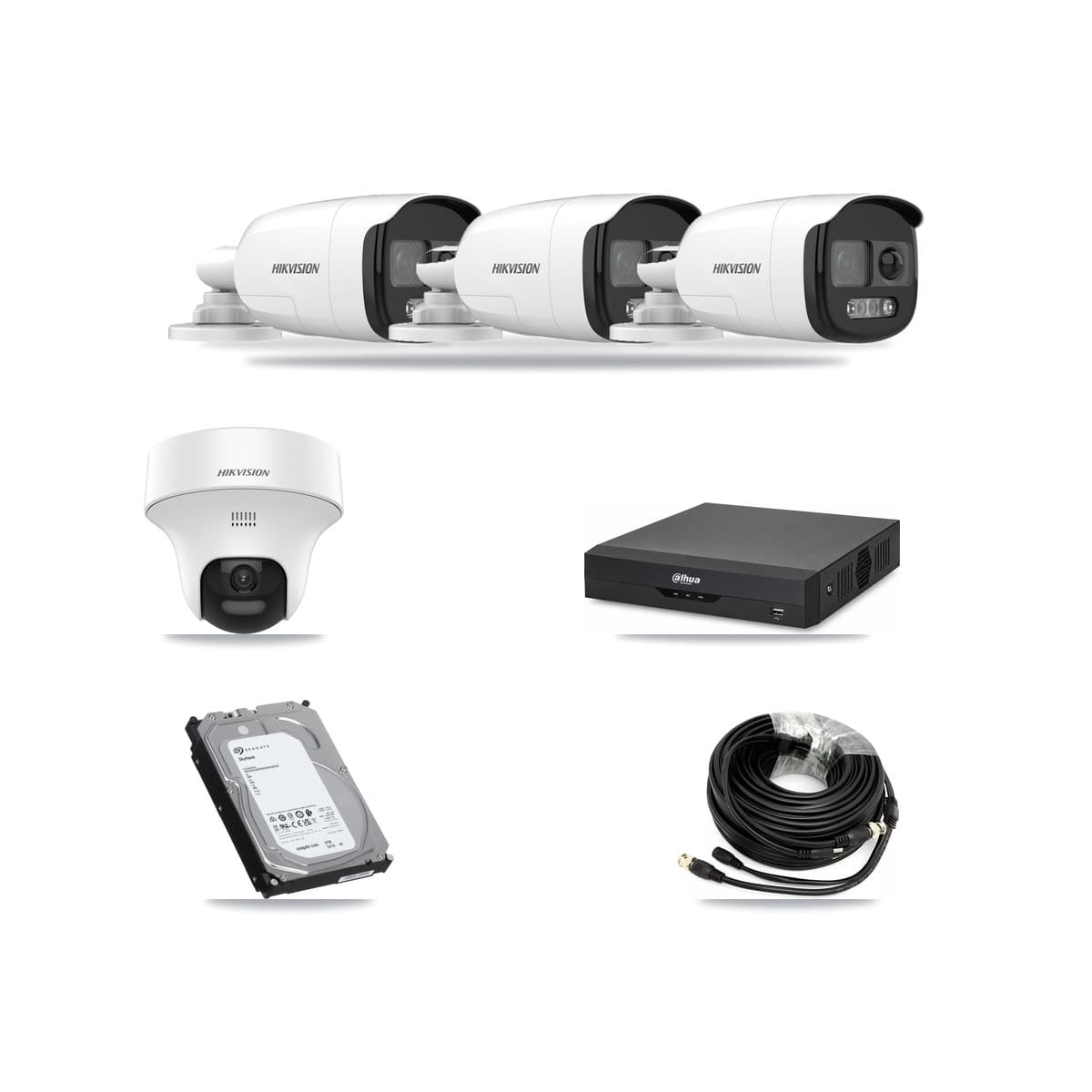

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a house — 4 cameras, keeps about 34 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
The box that saves everything and runs the app
The cameras× 3
HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera
What goes on the wall
The cameras
Hikvision 3K Two Way Audio Fixed PT Turret
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 4-channel HD-over-coax CCTV kit built on the Dahua DH-XVR5104HS-4KL-I2 + 3× Hikvision DS-2CE12KF3T-PIRXO + 1× Hikvision DS-2CE70K0T-PTLTS. 4 cameras at 5MP — sized for a house or flat. The included 6TB surveillance hard drive holds about 34 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 3× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× Hikvision 3K Two Way Audio Fixed PT Turret; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua DH-XVR5104HS-4KL-I2 + 3× Hikvision DS-2CE12KF3T-PIRXO + 1× Hikvision DS-2CE70K0T-PTLTS
- Recorder
- 4-channel Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
- Cameras included
- 3× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× Hikvision 3K Two Way Audio Fixed PT Turret
- Camera resolution
- 5MP
- Storage
- 6TB surveillance HDD — about 34 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 3× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 1× Hikvision 3K Two Way Audio Fixed PT Turret; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
