Product Description

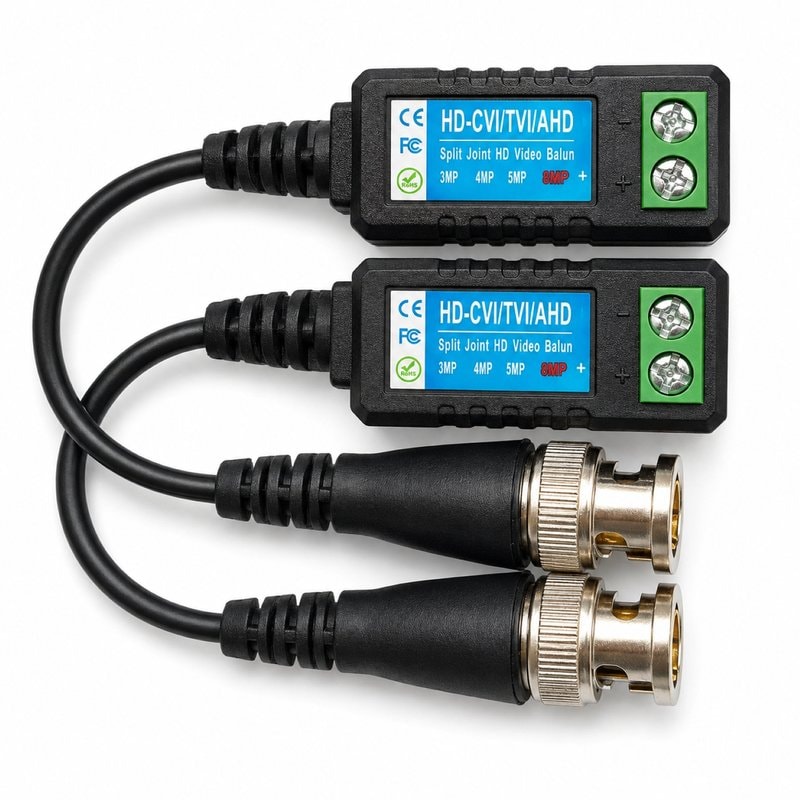

A passive video balun for pulling HD-over-coax signal down Cat5e/Cat6 UTP instead of RG59 — one unit at the camera, one at the DVR/NVR end, no local power needed.
Key specs
- Formats: HD-TVI, AHD, CVI and standard analog, up to 8MP (4K) resolution
- Connection: BNC male for camera or DVR/NVR input
- Termination: screw terminal block for the twisted-pair leg — no crimp connectors needed
- Cable: designed for Cat5e or Cat6
- Power: passive, no external supply required
Why it matters on site
Running Cat5e/Cat6 instead of coax cuts cable cost and bulk on multi-camera pulls, and the screw terminal means a quick termination on site rather than fitting a specific connector type. Because it's passive, transmission distance and signal stability depend on cable quality, run length and the resolution/format in use — check against your DVR/NVR's supported input format before specifying at 8MP.
Sold as a single unit: for a working link you'll need a matched pair, one at each end of the run. Suitable for new-build HD-TVI/AHD/CVI/analog installs and for retrofits where existing Cat5e/Cat6 infrastructure is being reused instead of pulling fresh coax.
Specifications
- Resolution
- 8MP
- Colour
- Black
- Connector Type
- BNC
Frequently Asked Questions
Which video formats does this balun support?
HD-TVI, AHD, CVI and standard analog, at resolutions up to 8MP (4K), per the unit's stated compatibility.
Do I need power for this balun?
No — it's a passive design with no external power supply required.
What cable should I run it over?
It's designed for Cat5e or Cat6 twisted pair cable rather than coax.
Do I need one balun or two per camera run?
You need a matched pair — one at the camera end and one at the DVR/NVR end — to complete the video link.
