Product Description

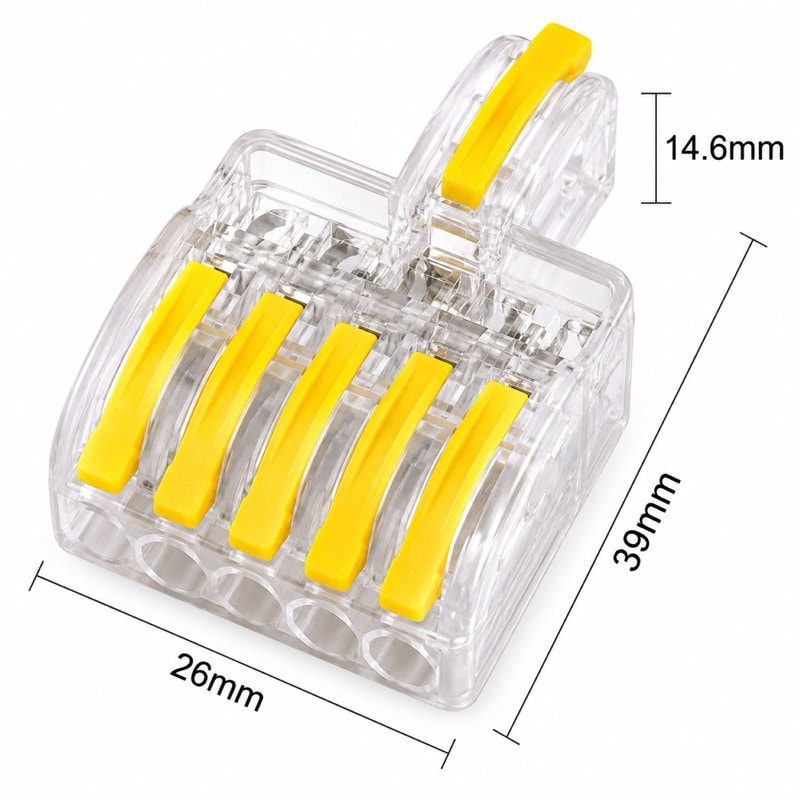

The SPL-1-5-CL is a 1-in, 5-out lever wire connector for splitting a single supply or signal feed to five outputs within a junction box, lighting fixture or panel. Housing is transparent, so conductor seating can be checked visually before closing the enclosure.
Key specs
- Ports: 1 input, 5 outputs
- Termination: lever-lock clamping, no screwdriver or crimp tool needed
- Conductor types: solid, stranded and flexible
- Housing: insulated plastic with conductive metal contacts, transparent
- Reusable: lever releases the conductor for rewiring without replacing the connector
Installation
Lift the lever, insert the stripped conductor, press the lever down to clamp it. The same action releases the wire, so a connector can be reused if a circuit is re-terminated during fault-finding or a rewire.
Where it fits
Compact enough for junction boxes, lighting fixtures, electrical cabinets and control panels — useful on lighting circuits or any point where one feed needs to be distributed to multiple runs.
On-site check
Because the housing is transparent, an installer can confirm full conductor insertion and correct clamping by eye, which speeds up troubleshooting during maintenance visits without opening the connector.
Specifications
- Model
- SPL-1-5-CL
- Product Type
- Lever wire connector / splicing terminal
- Input Terminals
- 1
- Output Terminals
- 5
Frequently Asked Questions
Does the SPL-1-5-CL require any tools to wire?
No — it uses a lever-lock clamp, so conductors are fitted by lifting and pressing the lever, without a screwdriver or crimp tool.
Can the connector be reused if I need to rewire a circuit?
Yes, the lever releases the conductor, so the connector can be opened and reused for wiring modifications.
What conductor types does it accept?
Solid, stranded and flexible conductors are all suitable for this connector.
Can I check the wiring without opening the enclosure?
The housing is transparent, so full conductor insertion and secure clamping can be confirmed visually.
