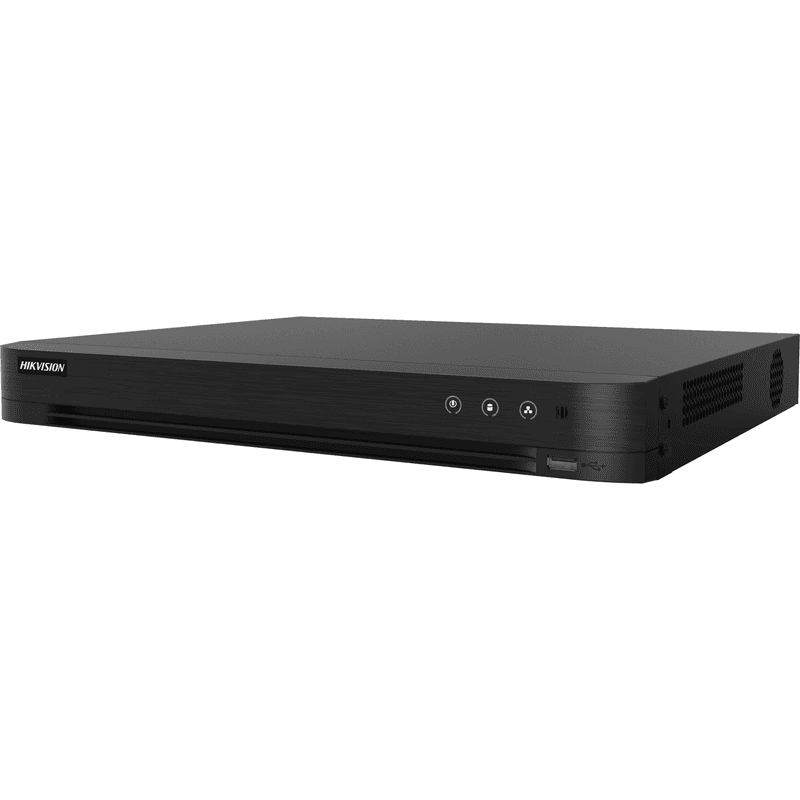

Hikvision 16-ch 1080p 1U H.265 DVR

The Hikvision DS-7216HGHI-M1 is a 16-channel Turbo HD DVR designed for hybrid CCTV systems requiring reliable recording across analog and IP camera environments. It supports multiple video input formats including HDTVI, AHD, CVI, CVBS, and IP cameras, allowing seamless integration with existing coaxial infrastructure while enabling expansion using modern IP surveillance cameras. The recorder supports 16 analog channels and can expand up to 18 IP channels in hybrid mode, supporting IP camera resolutions up to 5MP. The recorder uses H.265 Pro+ compression technology to significantly reduce storage requirements and bandwidth usage while maintaining stable recording performance. Motion Detection 2.0 provides human and vehicle classification, reducing false alarms caused by environmental factors such as shadows, rain, or moving vegetation. Video output is available via HDMI and VGA interfaces, supporting simultaneous output for monitoring displays with resolutions up to 1920 × 1080. Audio is supported via RCA input and output and can also be transmitted over coaxial cable from compatible cameras. Network connectivity is provided via a 10/100 Mbps Ethernet interface, enabling remote viewing, playback, and configuration through Hik-Connect and compatible software platforms. The recorder supports one SATA hard drive with up to 10TB capacity and is suitable for residential, commercial, and retail CCTV installations requiring stable hybrid recording and efficient video management.
