Product Description

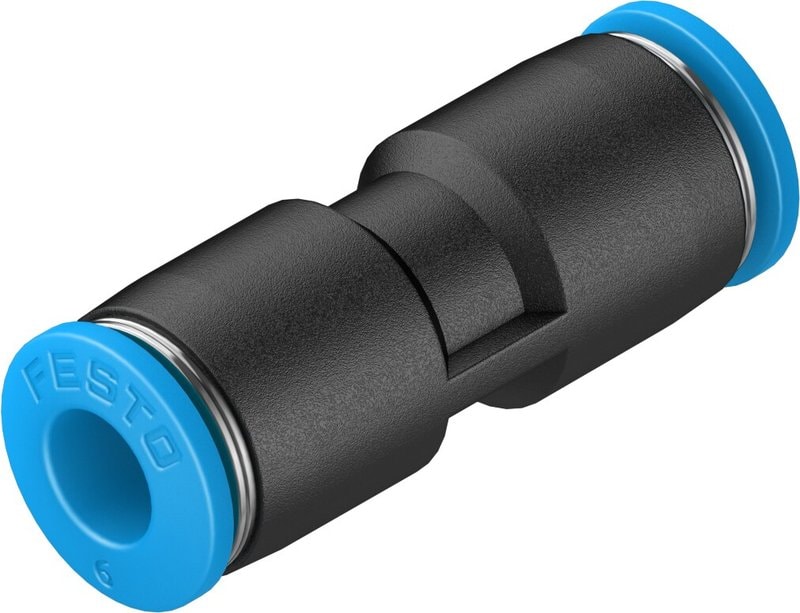

The Festo QS-6 is a straight push-in connector that joins two pneumatic tubes of 6mm outside diameter in line. Supplied under SKU FESTO-QS-6, it is a fitting for compressed-air tube, not for cable.
Key specs
- Model: Festo QS-6
- Configuration: straight, tube to tube
- Tube size: 6mm outside diameter
- Connection system: push-pull
- Housing: PBT
- Seals: NBR
- Tube gripping components: stainless steel
- Release: blue release rings
On the job
The push-pull connection system allows quick tube installation and release. That suits compressed-air installations, automation equipment and maintenance work, where a tube run may need to be joined or re-made.
The blue release rings make disconnection straightforward. The compact body is designed for installations where space is limited, and the PBT housing keeps the fitting light.
Specify 6mm outside-diameter tube at both ends when ordering for a job.
Specifications
- Product Type
- Straight push-in tube connector
- Brand / Model
- Festo QS-6
- Part Number
- 153032
- Tube Connections
- 6mm outside diameter at both ends
- Nominal Bore
- 4.3mm
- Tube Insertion Depth
- 17mm
- Operating Pressure
- −0.95 to 6 bar across the full temperature range
- Temperature-Dependent Pressure
- Up to 14 bar, subject to temperature
Technical Specifications
Frequently Asked Questions
What tube size does the Festo QS-6 take?
It joins two pneumatic tubes with a 6mm outside diameter.
What is the QS-6 made from?
The housing is PBT, the seals are NBR and the tube gripping components are stainless steel.
How do you release the tube?
The push-pull connection system uses blue release rings to make disconnection straightforward.
Is this a wiring connector?
No. It is a straight push-in connector for pneumatic tube in compressed-air installations, automation equipment and maintenance work.
