Hikvision & Prolux 8-Channel 2MP – 4K CCTV Kit — 2 2MP PTZ + 2 4K Bullet Cameras + 6TB Recording
SKU: KIT-HD8-PXD5208AN4KL-DS2AE5225TIAX04-6TB-EJ77KCopied!
Built on: Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2AE5225TI-A-E + 2× Hikvision DS-2CE12UF3T-E. Keeps about 27 days of continuous footage on the included 6TB surveillance hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

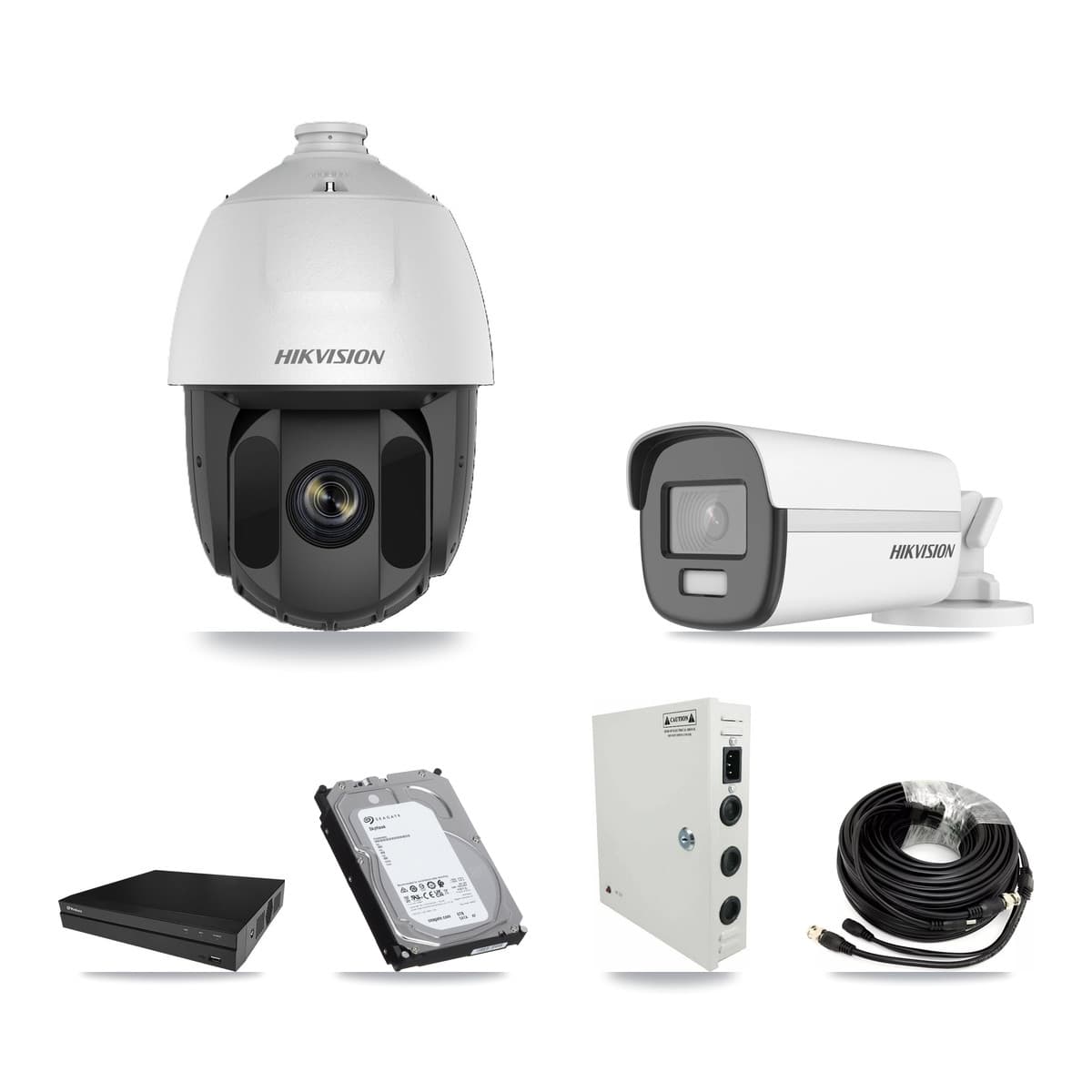

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a house — 4 cameras, keeps about 27 days of footage, it reuses the round coax cable an older system left behind.
The recorder
ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
The box that saves everything and runs the app
The cameras× 2
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The cameras× 2
Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2AE5225TI-A-E + 2× Hikvision DS-2CE12UF3T-E. 4 cameras at 2MP + 4K (8MP) — sized for a house or flat. The included 6TB surveillance hard drive holds about 27 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 2× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 2× Hikvision DS-2AE5225TI-A-E + 2× Hikvision DS-2CE12UF3T-E
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 2× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 2× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
- Camera resolution
- 2MP + 4K (8MP)
- Storage
- 6TB surveillance HDD — about 27 days of footage, recording all 4 cameras continuously at high quality (H.265) — the load is 2× 2MP + 2× 8MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 2× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 2× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
