What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
3 cameras included, keeps about 30 days of footage, uses network cameras; check the listed power equipment and cable requirements.
Recorder capacity
3 included cameras use 3 of the recorder’s 4 channels. 1 channel remains for expansion. Before adding cameras, check supported resolution, recording bandwidth and available power or PoE ports.
Recording storage
4TB storage is included. Estimated recording time: about 30 days with continuous H.265 recording. The estimate uses 2 Mbps per camera up to 2MP, 4 Mbps up to 5MP and 8 Mbps above 5MP, summed for mixed camera models. Actual retention depends on settings, scene activity and usable drive capacity; motion-only recording varies with activity.
Before installation
Check the component list below for included cables, power supplies and mounting accessories. Choose cable lengths and camera positions for your layout; camera count alone does not establish coverage. Confirm lens field of view, lighting and weather protection for each position.
Price on request
One part of this kit — the Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR
The box that saves everything and runs the app
The cameras× 3
Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic
What goes on the wall
The hard drive
Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM
Where the footage is kept
The cable× 3
Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description

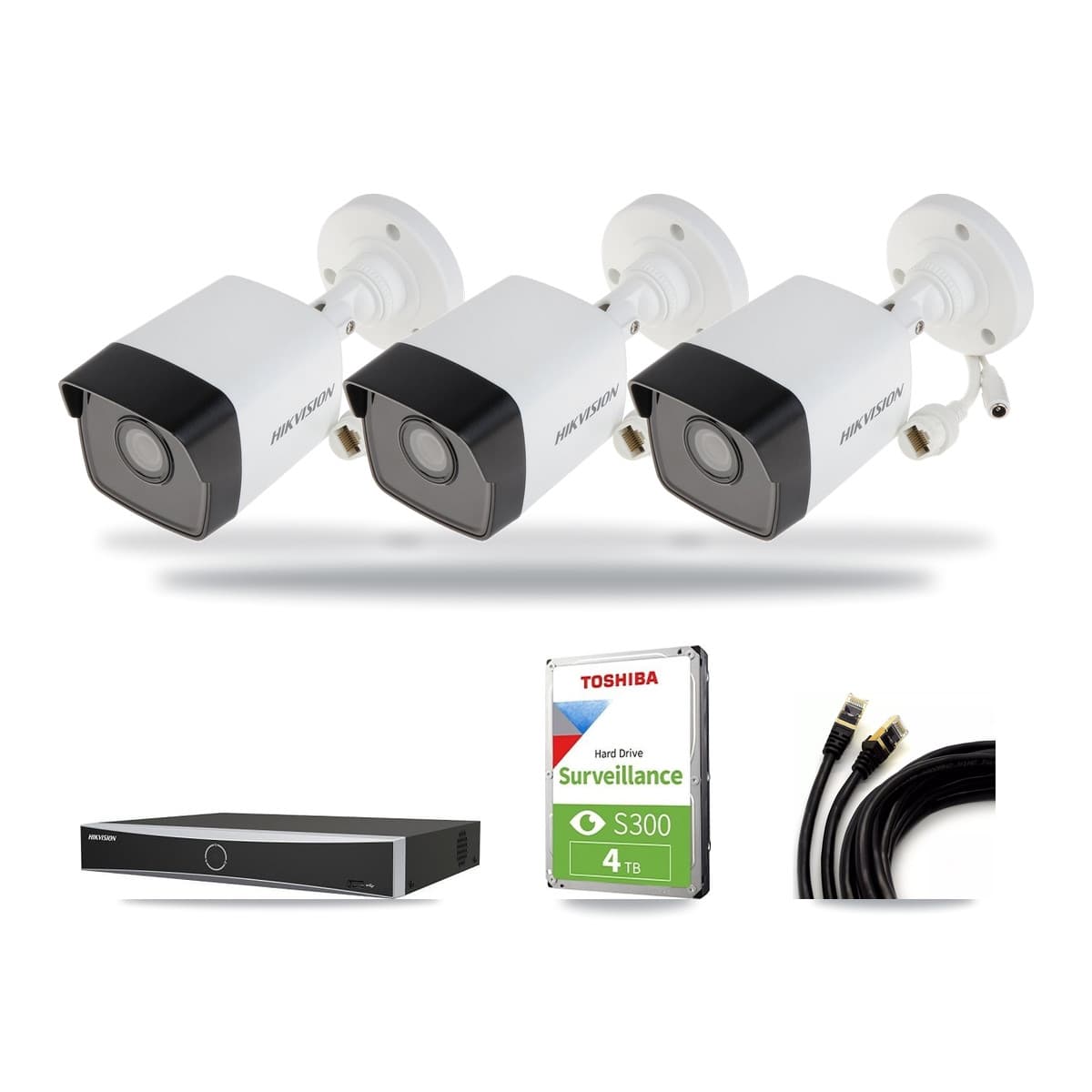

A complete 4-channel IP (PoE) CCTV kit built on the Hikvision DS-7604NXI-K1/4P + 3× Hikvision DS-2CD1053G0-IUF. 3 cameras at 5MP — sized for a house or flat. The included 4TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 3 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR; 3× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- IP (network)
- Built on
- Hikvision DS-7604NXI-K1/4P + 3× Hikvision DS-2CD1053G0-IUF
- Recorder
- 4-channel Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR
- Cameras included
- 3× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic
- Camera resolution
- 5MP
- Storage
- 4TB surveillance HDD — about 30 days of footage, recording all 3 cameras continuously at high quality (H.265)
- Cables & PSU included
- 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 4-ch PoE 1U K Series AcuSense 4K NVR; 3× Hikvision 5MP Fixed Bullet Network Camera - H.265+, IP67, WDR, EXIR 2.0, Built-In Mic; 1× Toshiba S300 4TB Surveillance Hard Drive 3.5" SATA 5400RPM; 3× Cat6 Ethernet Cable, Gigabit RJ45 20m, Black - High-Speed LAN Patch Cable
