Hikvision & Dahua 4-Channel 5MP CCTV Kit — 4 DS-2CE70K0T Turret Cameras + 2TB Recording
SKU: KIT-HD4-DHXVR5104HS4-DS2CE70K0TPTX04-2TB-1XLKWCopied!
Built on: Dahua DH-XVR5104HS-4KL-I2 + 4× Hikvision DS-2CE70K0T-PTLTS. Keeps about 11 days of continuous footage on the included 2TB hard drive.
In Stock
Ready to ship • 18 available
How many cameras?
Same recorder and same cameras — just more of them.
How long should it keep footage?
When the drive fills, the recorder writes over the oldest day.

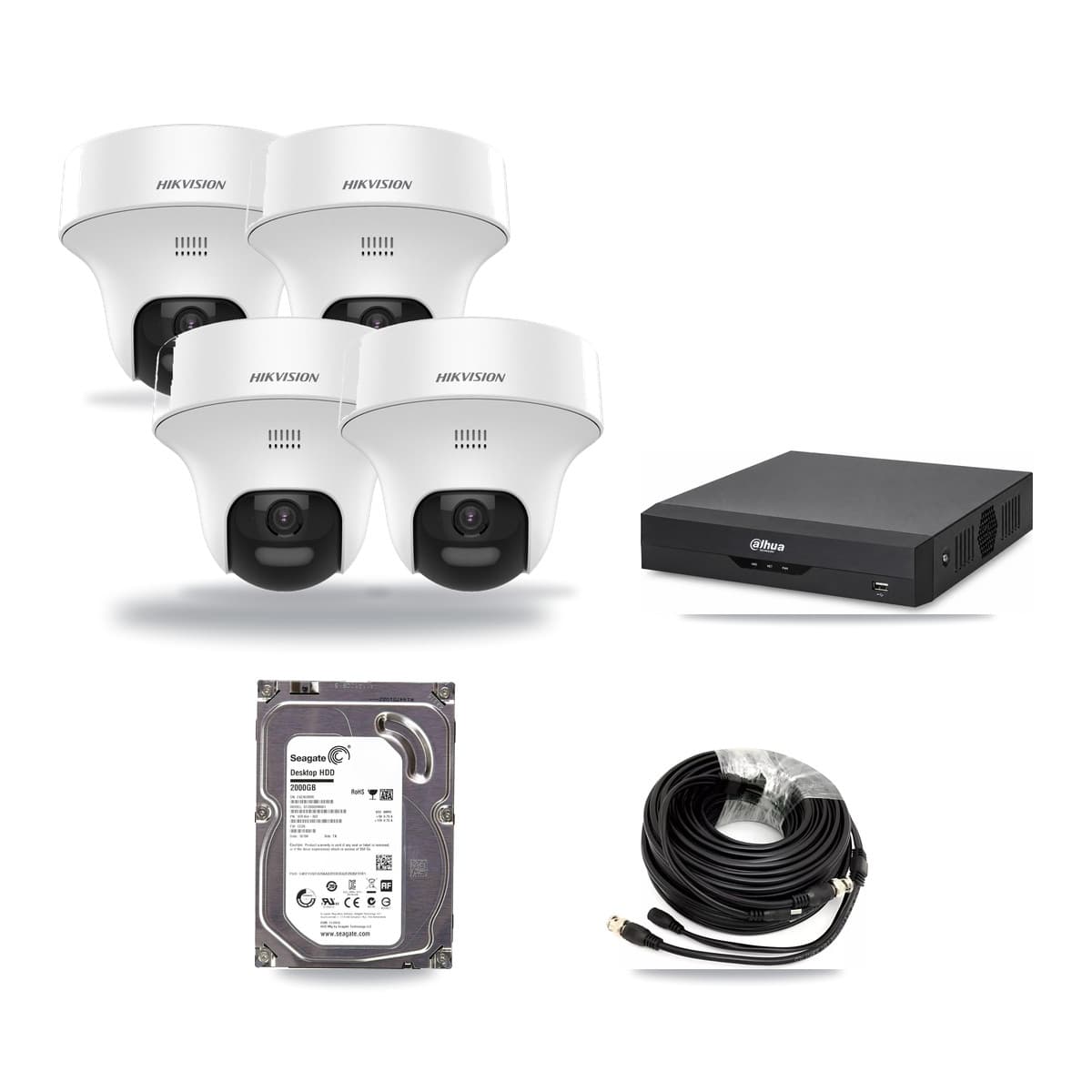

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a house — 4 cameras, keeps about 11 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Seagate 2TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
The box that saves everything and runs the app
The cameras× 4
Hikvision 3K Two Way Audio Fixed PT Turret
What goes on the wall
The hard drive
Seagate 2TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 4
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 4-channel HD-over-coax CCTV kit built on the Dahua DH-XVR5104HS-4KL-I2 + 4× Hikvision DS-2CE70K0T-PTLTS. 4 cameras at 5MP — sized for a house or flat. The included 2TB hard drive holds about 11 days of continuous recording — the estimate assumes recording all 4 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4× Hikvision 3K Two Way Audio Fixed PT Turret; 1× Seagate 2TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Free DMSS app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Dahua DH-XVR5104HS-4KL-I2 + 4× Hikvision DS-2CE70K0T-PTLTS
- Recorder
- 4-channel Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR
- Cameras included
- 4× Hikvision 3K Two Way Audio Fixed PT Turret
- Camera resolution
- 5MP
- Storage
- 2TB HDD — about 11 days of footage, recording all 4 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free DMSS app (iOS / Android) for live view and playback
- What's in the box
- 1× Dahua WizSense XVR5104HS-I3 4 Channel 4K AI Penta-brid CCTV DVR; 4× Hikvision 3K Two Way Audio Fixed PT Turret; 1× Seagate 2TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 4× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
