Hikvision & ANNKE 4-Channel 2MP – 4K CCTV Kit — 2 4K Turret + 1 White 2MP Dome Cameras + 6TB Recording
SKU: KIT-HD4-ANDV48MPD941-DS2CE78U0TLPX03-6TB-1EKQECopied!
Built on: ANNKE AN-DV4-8MP-D941BB + 2× Hikvision DS-2CE78U0T-LPTS + 1× HDT-2MP-N20W-2.8MM. Keeps about 30 days of continuous footage on the included 6TB surveillance hard drive.
In Stock
Ready to ship • 16 available
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

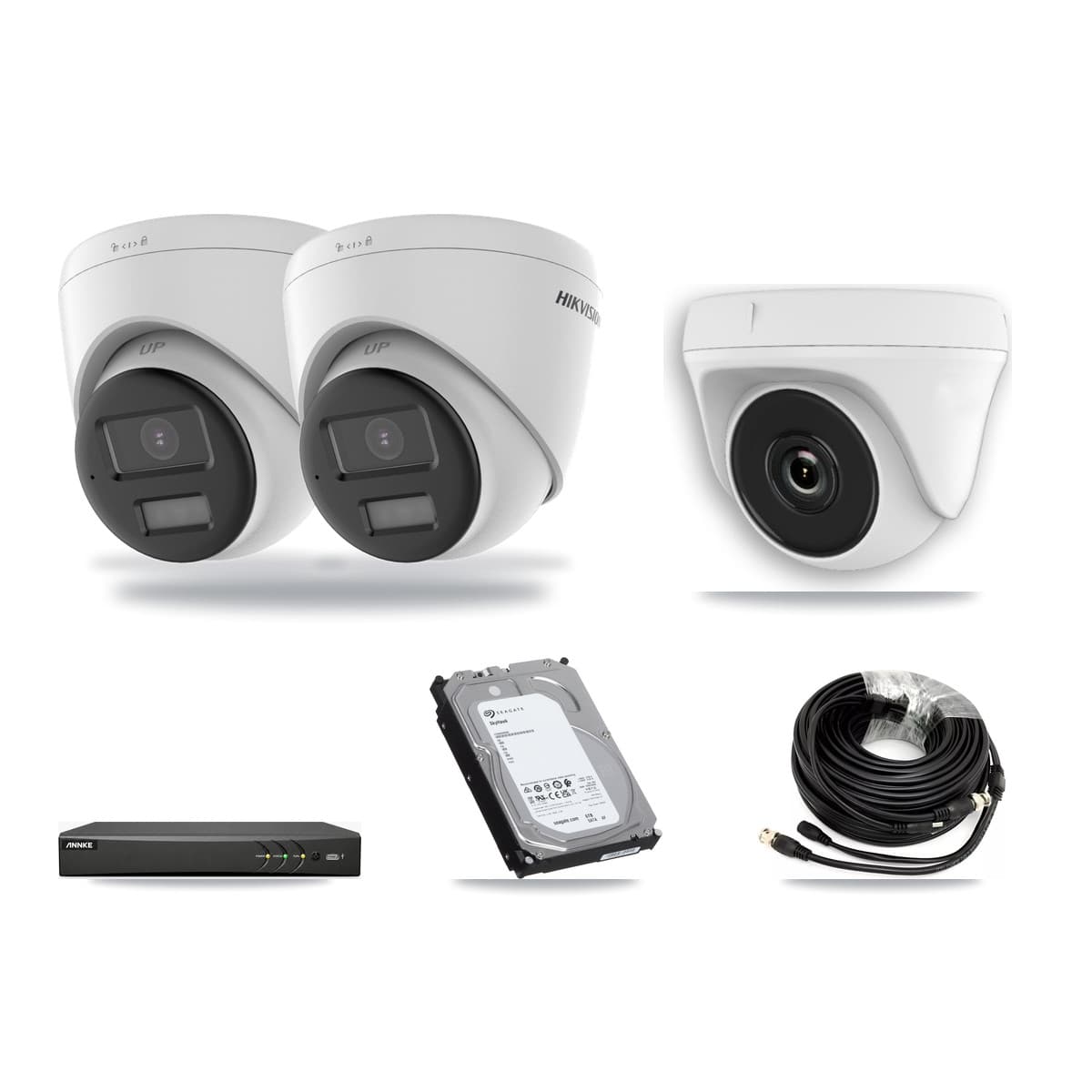

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a house — 3 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
The box that saves everything and runs the app
The cameras× 2
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The hard drive
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
One plug that powers the cameras
The cable× 3
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 4-channel HD-over-coax CCTV kit built on the ANNKE AN-DV4-8MP-D941BB + 2× Hikvision DS-2CE78U0T-LPTS + 1× HDT-2MP-N20W-2.8MM. 3 cameras at 2MP + 4K (8MP) — sized for a house or flat. The included 6TB surveillance hard drive holds about 30 days of continuous recording — the estimate assumes recording all 3 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 3× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 2× Hikvision 4K Two Way Audio Fixed Turret; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 3× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug.
Specifications
- System type
- Analog (HD over coax)
- Built on
- ANNKE AN-DV4-8MP-D941BB + 2× Hikvision DS-2CE78U0T-LPTS + 1× HDT-2MP-N20W-2.8MM
- Recorder
- 4-channel ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
- Cameras included
- 2× Hikvision 4K Two Way Audio Fixed Turret; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White)
- Camera resolution
- 2MP + 4K (8MP)
- Storage
- 6TB surveillance HDD — about 30 days of footage, recording all 3 cameras continuously at high quality (H.265) — the load is 2× 8MP + 1× 2MP
- Cables & PSU included
- 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug; 3× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 2× Hikvision 4K Two Way Audio Fixed Turret; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White); 1× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 3× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 3A CCTV Power Supply Adapter 4 Way Splitter UK Plug
