Product Description

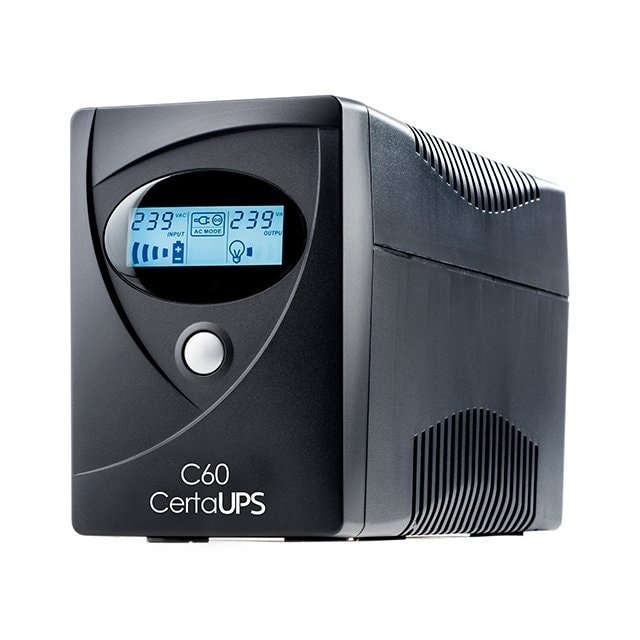

The CertaUPS C60-800 480W 800VA UPS – Battery Backup is a line interactive unit (VI topology) for holding NVRs, DVRs, switches and other network gear through mains dropouts and voltage swings.
Key specs
- Output: 800VA / 480W, simulated sinewave, with automatic voltage regulation (AVR) to correct minor sags/surges without dropping to battery
- Input/output: 220–240VAC, single phase
- Outlets: 3 × battery-backed IEC C13, 1 × surge-protected IEC (no battery backup)
- Battery: internal 12V sealed lead-acid, approx. 3-minute runtime at load
- Monitoring: USB port for intelligent monitoring software, enabling automatic shutdown on extended outages
- Form factor: compact tower, LCD status display, cold start function (able to power up from battery without mains present)
AVR handles small fluctuations in-line, so the battery is reserved for genuine outages — this reduces switch-to-battery cycles and helps preserve battery life over the unit's service life. The three battery-backed C13 outlets let an installer split load across an NVR, PoE switch and a media converter, while the fourth surge-only outlet suits equipment that doesn't need runtime, such as a monitor.
Its compact tower case is sized for network cabinets, comms rooms and control room racks where floor and shelf space is tight. This is a short-runtime UPS by design: the roughly 3-minute battery window is intended to ride through brief mains interruptions or allow a controlled shutdown, not to run equipment through extended power cuts.
Specifications
- Brand
- CertaUPS
- Model
- C60-800
- UPS Type
- Line Interactive
- Power Capacity VA
- 800
- Power Capacity W
- 480
- Input Voltage
- 220–240VAC
- Output Voltage
- 220–240VAC
- Output Waveform
- Simulated Sinewave
- Output Phase
- Single Phase
- Battery Voltage
- 12V DC
- Backup Runtime
- Approx. 3 minutes
- Output Connections
- 3 × IEC C13 Battery, 1 × IEC C13 Surge
- Communication Interface
- USB
- Protection Features
- AVR, Surge Protection, Cold Start
- Display Type
- LCD
- Form Factor
- Tower
- Width
- 100
- Depth
- 285
- Height
- 142
- Weight
- 4.9
- Application
- CCTV, Network Equipment, EPOS, IT Systems
Technical Specifications
Frequently Asked Questions
How long will the C60-800 run connected equipment on battery?
The internal 12V sealed lead-acid battery gives approximately 3 minutes of runtime at load, intended to bridge brief outages or allow a controlled shutdown rather than extended operation.
Does the C60-800 protect against voltage fluctuations without using the battery?
Yes — its automatic voltage regulation (AVR) corrects minor over- or under-voltage conditions in-line, without switching to battery power.
How many devices can be connected with battery backup?
Three devices can be plugged into the battery-backed IEC C13 outlets; a fourth IEC outlet is surge-protected only, with no battery backup.
Can the C60-800 be monitored from a connected PC?
Yes, it has an integrated USB port supporting intelligent monitoring software for status monitoring and automatic shutdown during power events.
