8-Channel 5MP – 4K CCTV Kit — 1 4K Turret + 7 5MP Cameras + 2× 6TB Recording
SKU: KIT-HD8-PXD5208AN4KL-DS2CE78U0TLPX08-2X6TB-1HY1OCopied!
Built on: Prolux PXD-5208AN-4KL-X-8P + 1× Hikvision DS-2CE78U0T-LPTS + 7× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 30 days of continuous footage on the included 2× 6TB surveillance hard drives (12TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

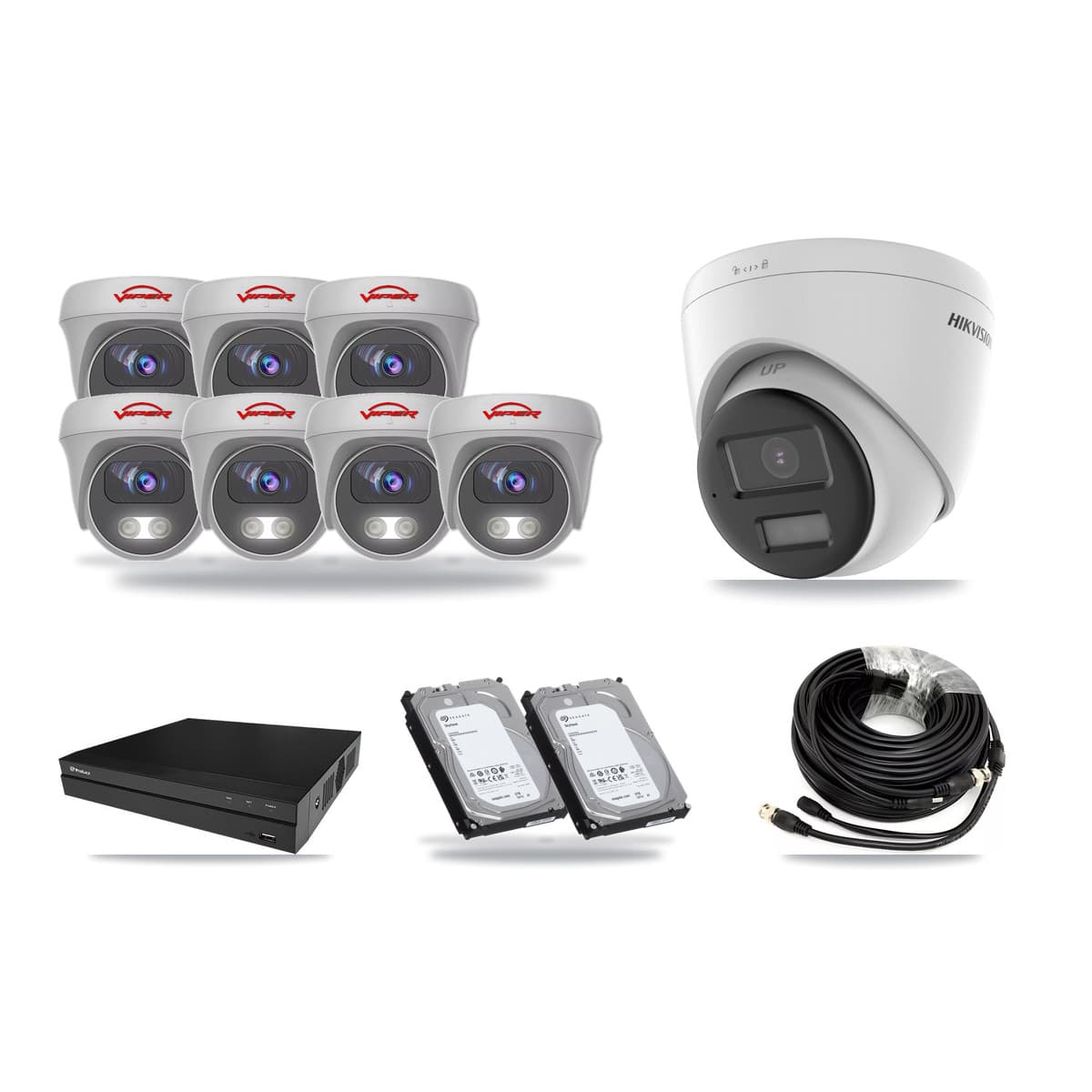

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 8 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
The recorder
ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
The box that saves everything and runs the app
The cameras
Hikvision 4K Two Way Audio Fixed Turret
What goes on the wall
The cameras× 7
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive× 2
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 8
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Prolux PXD-5208AN-4KL-X-8P + 1× Hikvision DS-2CE78U0T-LPTS + 7× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 8 cameras at 5MP + 4K (8MP) — sized for a shop or small office. The included 2× 6TB surveillance hard drives (12TB in total) hold about 30 days of continuous recording — the estimate assumes recording all 8 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 1× Hikvision 4K Two Way Audio Fixed Turret; 7× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 2× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Prolux PXD-5208AN-4KL-X-8P + 1× Hikvision DS-2CE78U0T-LPTS + 7× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder
- Cameras included
- 1× Hikvision 4K Two Way Audio Fixed Turret; 7× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP + 4K (8MP)
- Storage
- 2× 6TB (12TB total) surveillance HDD — about 30 days of footage, recording all 8 cameras continuously at high quality (H.265) — the load is 1× 8MP + 7× 5MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- What's in the box
- 1× ProLux PXD-5208AN-4KL-X/8P 8 Channel 4K Hybrid DVR PoC H.265+ Recorder; 1× Hikvision 4K Two Way Audio Fixed Turret; 7× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 2× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 8× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
