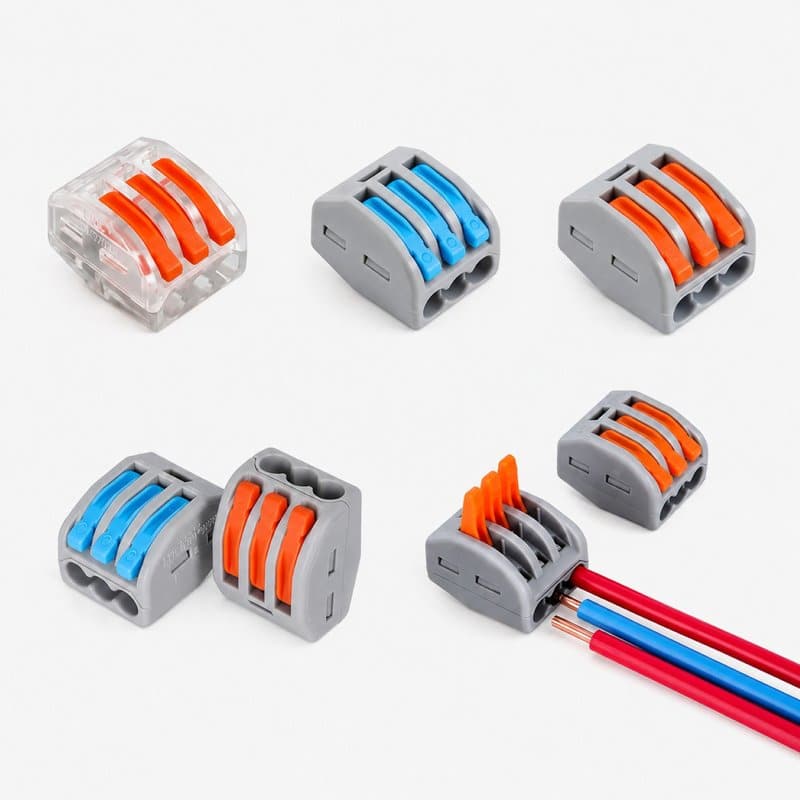

3 Way Lever Wire Connector Terminal Block for CCTV Power Distribution

The 3-Way Lever Wire Connector Terminal Block (3-WAY-TERMINAL-BLOCK-GREY) terminates three conductors without tools, using a lever-actuated clamp instead of screw terminals or crimps. On a job this saves time at every junction box and cuts down on the crimp tool clutter in the van.

Key specs

• Ports: 3-way lever connector
• Conductor types: solid and stranded copper
• Rated voltage use: 12V DC and 24V DC CCTV power distribution
• Termination method: tool-free lever clamp, reusable
• Housing: compact insulated body for junction boxes, cabinets and camera enclosures

Because it accepts both solid and stranded copper, the 3-WAY-TERMINAL-BLOCK-GREY works whether you're extending a run of solid-core power cable from a centralised PSU or joining stranded pigtails inside a camera enclosure — no need to carry separate block types for each conductor form.

The lever mechanism is designed for repeated use: pop the lever, pull the conductor, re-terminate elsewhere if a camera position changes or a cable needs re-routing during snagging or maintenance. That reusability matters on multi-camera installs where power runs get adjusted after first fix.

Typical applications include distributing 12V/24V DC from a central power supply to multiple cameras, extending power or signal cable runs, and general low-voltage junction work in alarm and control wiring alongside CCTV. Keep an eye on cable length and gauge on long DC runs — voltage drop at the camera end is a common cause of night-time IR flicker, independent of the connector itself.
