Product Description

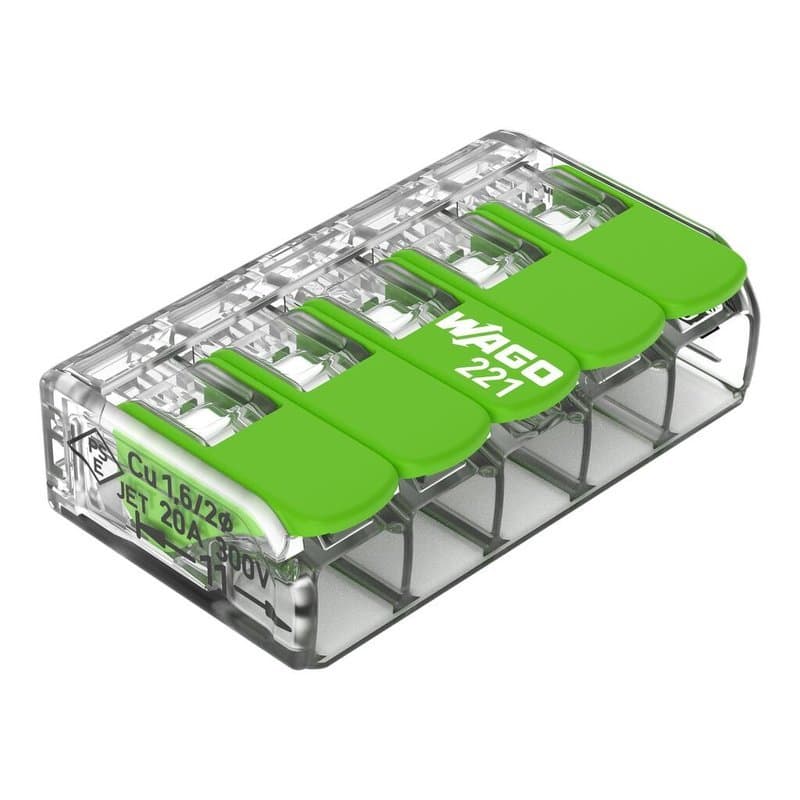

WAGO 221-425 — 5-port lever connector, pack of 25
Splices up to five conductors per connector without a crimp tool. On CCTV work this covers joining camera power leads, extending signal runs, or terminating multiple tails in a back box or junction enclosure.
Key specs
- Ports: 5 per connector
- Conductor range: 0.14–4 mm², solid, stranded and fine-stranded
- Rating: up to 32A / 450V
- Housing: transparent, for visual check of insertion depth
- Operation: tool-free — lift lever, insert conductor, close lever
- Pack quantity: 25 connectors
Fit-check before ordering
Match the conductor gauge on your job to the 0.14–4 mm² range before buying — a connector that's too loose or too tight on the wire won't seat properly under the lever. The transparent body lets you confirm each conductor is pushed fully home before closing the back box or enclosure lid, which is worth checking on any run you won't be able to get back to easily.
Where it's used
Junction boxes, lighting circuits and general distribution wiring are the stated applications — on a CCTV install that translates to splicing PSU tails, extending power runs to cameras, or consolidating multiple conductors at a single termination point inside an enclosure.
Supplied as a pack of 25, suitable for professional electrical installation work.
Specifications
- Voltage
- 450V
- Current
- 32A
- Pack Size
- 25
Technical Specifications
Frequently Asked Questions
What conductor sizes does the 221-425 accept?
0.14 to 4 mm², covering solid, stranded and fine-stranded conductors.
How many conductors fit per connector?
Each connector has 5 ports, so up to five conductors can be joined in one unit.
Do I need a crimping tool to use these?
No — installation is tool-free: lift the lever, insert the conductor, then close the lever to secure it.
What's the voltage and current rating?
The connector is rated up to 32A and 450V.
