What's in the box
Full parts list with quantities. Tap a line for its full spec.
2-camera kit · ~115 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
2 cameras supplied, taking 2 of 4 recorder channels. 2 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
5TB storage supplied. Retention: around 115 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954 in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
Records every channel and runs the app
The cameras
2× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954
Footage storage
The power supply
1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
Single-plug camera power
The cable
2× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

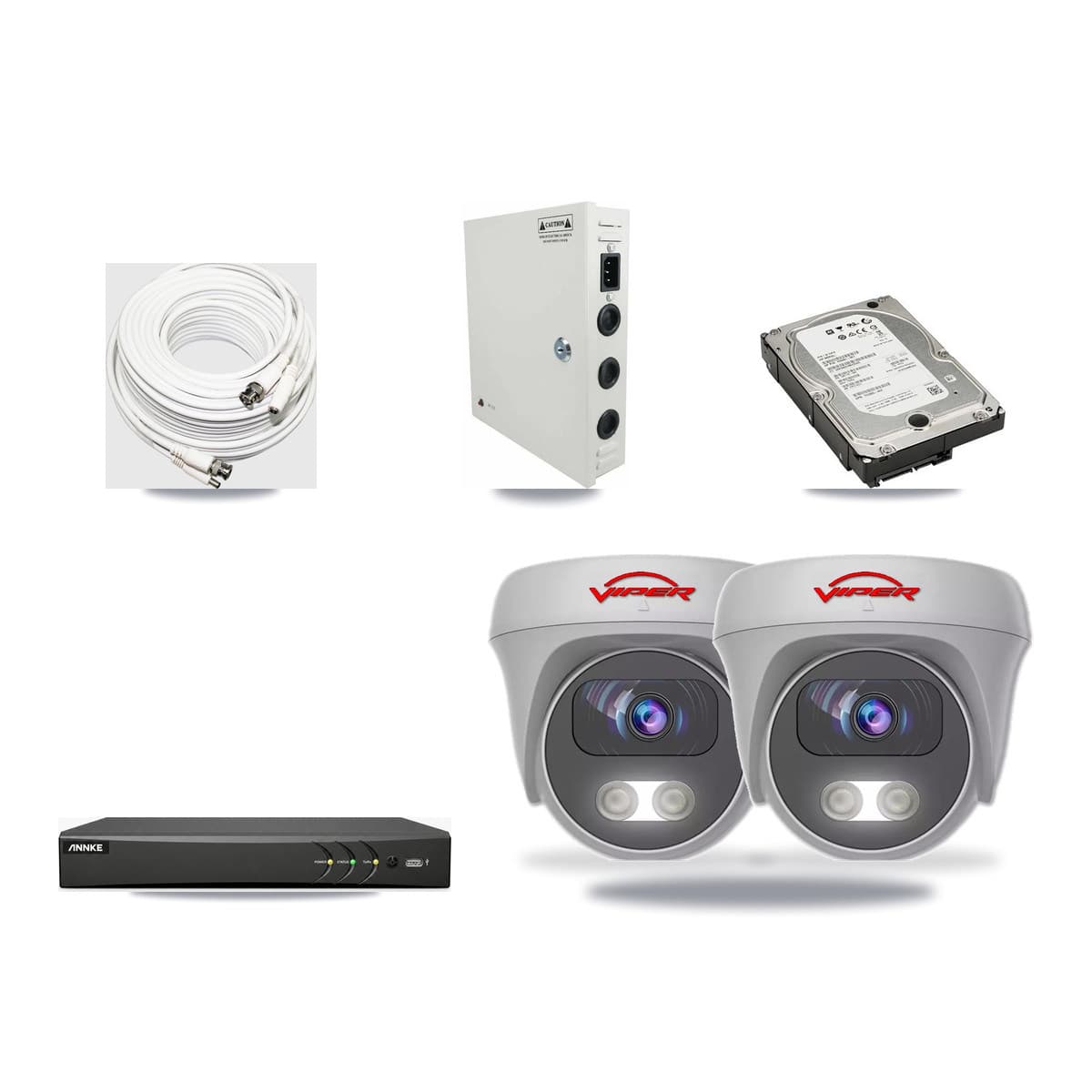

Trade-ready 4ch HD analogue kit — ANNKE AN-DV4-8MP-D941BB DVR with 2 off Viper VIPER-5MP-3K-AOC-WHITE-2.8MM cameras. 5MP on the cameras, Smart Light for colour at night. 5TB HDD supplied: approx 115 days' retention with all 2 channels on continuous H.265, then it overwrites the oldest. PSU/cabling in the kit — 2 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Complete kit, nothing extra to bring to site. Suits domestic installs. Kit list: 1 off ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 2 off VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1 off Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 2 off Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1 off 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit.
Specifications
- System type
- Analog (HD over coax)
- Built on
- ANNKE AN-DV4-8MP-D941BB + 2× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 4-channel ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
- Cameras included
- 2× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 5TB HDD — about 115 days of footage, recording all 2 cameras continuously at high quality (H.265)
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 2× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 2× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× Lenovo ThinkServer 5TB 7.2K SATA 3.5" HDD 00LA954; 2× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
