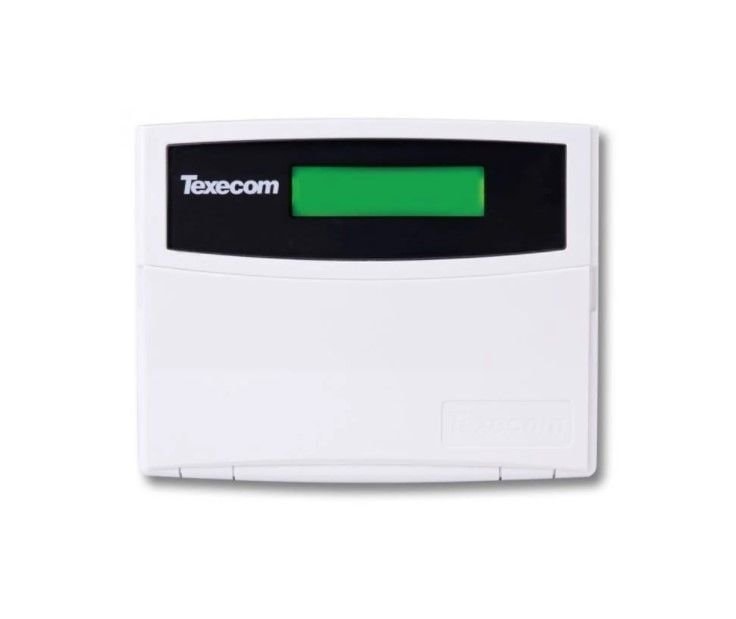

Texecom CGA-0001 Premier Elite 12-W Control Panel

Name: Texecom CGA-0001 Premier Elite 12-W Control Panel
Brand: Texecom
SKU: TEXECOM-CGA-0001
Availability: InStock

SKU: TEXECOM-CGA-0001

The Texecom CGA-0001 Premier Elite 12-W is a professional-grade intruder alarm control panel designed for small to medium security installations. Offering powerful performance in a compact enclosure, it supports both wired and wireless expandability, making it a flexible solution for residential and commercial security systems. The panel is compatible with the full range of Texecom Premier Elite accessories and integrates seamlessly into modern smart security setups.

Trade pricing — apply free in 2 minutesExisting customer? Sign in

Low Stock

Only 1 left - order soon!

How to buy: add to your basket, then check out securely by card — or contact Sales for larger quantities.

Free UK DeliveryOn orders over £100

Secure Payment256-bit SSL encryption

14-Day ReturnsChange your mind, no reason needed

Product Description

The Texecom Premier Elite 12-W Control Panel CGA-0001 is an EN50131 Grade 2 compliant intruder alarm panel built for small to medium installations, sized for jobs where wired and wireless devices need to sit on one controller.

Key specs

Zones: 8 on-board, expandable to 12
Outputs: 2 on-board, expandable up to 22
Power: 1.5A regulated PSU, with support for a 7Ah sealed lead-acid backup battery
Certification: EN50131 Grade 2, Environmental Class II
Dimensions: 243 × 205 × 85 mm
Communication: compatible with Texecom communicators and the SmartCom IP module

Expansion and compatibility

The CGA-0001 takes Premier Elite expanders and Ricochet wireless devices, so an installer can start on 8 zones and scale to 12 without swapping the panel. The 2 on-board outputs expand to 22, giving enough headroom for staged output control across a growing site.

Programming and diagnostics run through Wintex software, standard across the Premier Elite range, which keeps commissioning and fault-finding consistent for engineers already working with other Elite panels.

Suited to

Residential systems
Small business and retail premises
Offices and commercial sites
Upgrades or expansions of existing Premier Elite installations

Grade 2 certification and the compact 243 × 205 × 85 mm housing make this a panel for installers who need EN50131 compliance without the footprint of a larger multi-zone system.
