Product Description

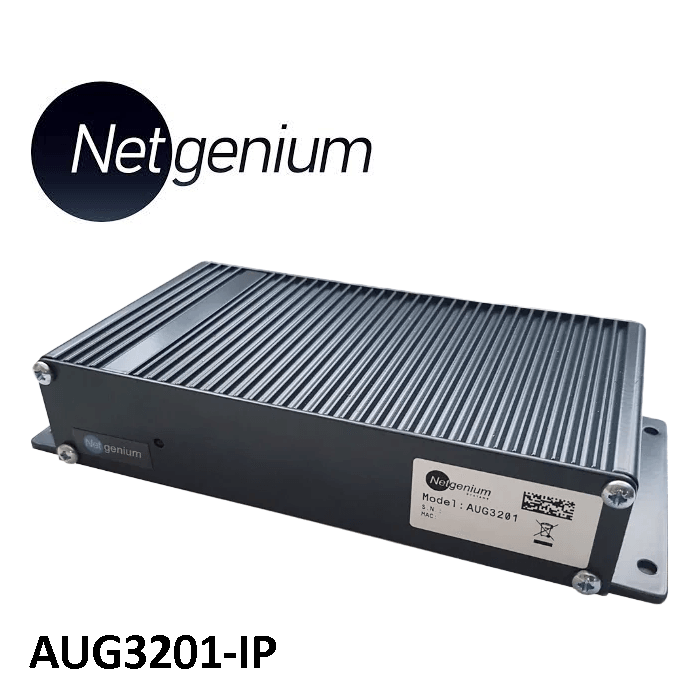

The AUG3201-IP is a bidirectional analogue-to-IP audio gateway: it takes analogue audio in and puts an IP stream out, and does the reverse too.
What it converts
- Analogue in → IP out: accepts audio from microphones, NVR audio outputs or other analogue sources and converts it to a digital stream for transport over an IP LAN.
- IP in → analogue out: receives audio streams from IP-based PA, scheduled announcement or pre-recorded broadcast applications, then outputs to a standard amplifier or 8 Ohm speaker.
Where it fits on a job
- Downstream side: compatible with IP PoE speaker networks for distributed announcements, alerts or monitoring across a building or site.
- Upstream side: supports integration with SIP IP telephony systems, so voice comms and broadcast audio can run over the same network platform.
- Existing analogue sound systems can stay in place — the gateway outputs to traditional amps/8 Ohm speakers rather than requiring a full IP speaker replacement.
Typical deployments
Public address and announcement systems, security installations needing audio alongside video, and building communication systems bridging legacy analogue kit with an IP audio backbone.
For integrators this is the part that lets a mixed estate — some analogue mic/speaker runs, some IP PoE speakers, plus a SIP telephony platform — sit on one audio network without ripping out working analogue infrastructure.
Frequently Asked Questions
Can the AUG3201-IP output to speakers I already have installed?
Yes — when receiving an IP audio stream it outputs to a traditional amplifier or 8 Ohm speaker, so existing analogue sound systems don't need replacing.
Does the AUG3201-IP work with IP PoE speaker networks?
Yes, it's compatible with IP PoE speakers and audio systems for streaming converted audio across an IP LAN.
Can it integrate with a SIP telephony platform?
Yes, the gateway supports integration with SIP IP telephony systems for voice communication and audio broadcasting.
What analogue sources can feed into the gateway?
Sources such as microphones, NVR systems or other analogue audio devices can be converted to an IP stream by the AUG3201-IP.
