Product Description

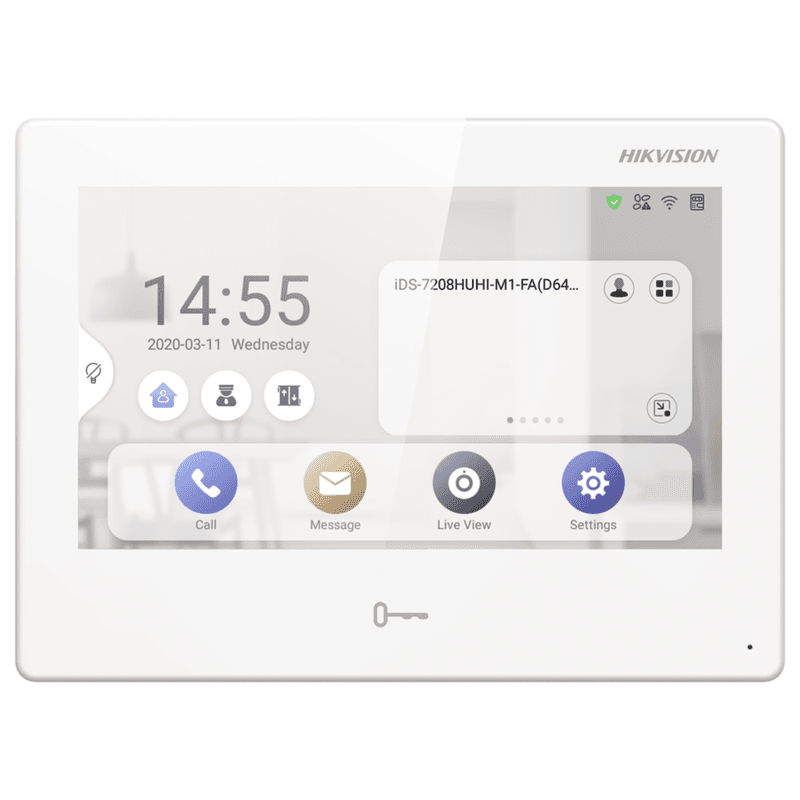

Hikvision DS-KH9310-WTE1(B) — 7″ Indoor Android Station
A curved-screen Android indoor station for Hikvision video door entry systems, built for installers who need alarm I/O and flexible power on the same unit.
Key specs
- Display: 7″ curved LCD, touch screen
- Connectivity: WiFi built in, for network flexibility alongside wired options
- Alarm I/O: 8 inputs / 2 outputs — enough for door contacts, PIRs and auxiliary relay switching without a separate expansion module
- Power: 12VDC or PoE — lets you run it from a local 12V supply or a single Cat5e/6 run from a PoE switch, cutting cable count on new installs
- Warranty: 3 year manufacturer warranty
Specifying notes
On PoE, confirm your switch or injector budget covers this station alongside any other PoE devices on the same run — voltage sag over long cable runs can affect performance, so keep runs within recommended limits and use quality cable. The 8/2 alarm I/O suits sites needing extra local inputs beyond a standard door release circuit, such as tamper contacts or gate sensors wired directly into the station rather than back to a panel.
Confirm compatibility with the rest of your Hikvision video intercom range (door stations, master/sub stations) before specifying on a job, as intercom systems are typically matched by series.
Specifications
- Operating System
- Android 10.1
- Screen Size
- 7-inch
- Operation Method
- Capacitive touch screen
- Type
- Colourful TFT
- Max Resolution
- 1024 × 600
- Audio Input
- 1 built-in omnidirectional microphone
- Audio Compression
- G.711U, G.711A
- Audio Output
- 1 built-in loudspeaker
- Audio Compression Bitrate
- 64 Kbps
- Audio Quality
- Noise suppression and echo cancellation
- Volume Adjustment
- Adjustable
- Message Capacity
- 200 captured pictures, 200 alarm records
- Notice Capacity
- 200
- Network Protocol
- TCP/IP, SIP, RTSP
- Wi-Fi
- 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- Network Interface
- 1 RJ-45 10/100 Mbps self-adaptive
- TF Card
- Support TF card, up to 128 G
- Lock Control
- 1 relay, Max. 30 VDC 0.3 A, and 1 high/low level relay (3.3 V/0V)
- Installation
- Surface mounting
- Operating Temperature
- -10 °C to 50 °C (14 °F to 122 °F)
- Operating Humidity
- 10% to 90% (no-condensing)
- Dimensions
- 187 mm × 137 mm × 25.7 mm (7.36" × 5.39" × 1.01")
- Power Supply
- 12 VDC, 1 A, IEEE802.3af, standard PoE
- Application Environment
- Indoor
- Max Power Consumption
- ≤ 12 W
Technical Specifications
Frequently Asked Questions
What power options does the DS-KH9310-WTE1(B) support?
It can be powered by 12VDC or PoE, so you can run a local supply or a single network cable from a PoE switch.
How many alarm inputs and outputs does it have?
It has 8 alarm inputs and 2 outputs on board.
Does the DS-KH9310-WTE1(B) have WiFi?
Yes, WiFi is built in alongside its wired connectivity options.
What warranty comes with this unit?
It carries a 3 year manufacturer warranty.
