Product Description
Kit contents (SKU: DS-PWA64-KIT-WE)
| Part number | Function | Qty |
|---|---|---|
| DS-PWA64-L-WE | AX PRO wireless alarm hub | 1 |
| DS-PDP15P-EG2-WE | Wireless PIR detector, up to 15m range, pet immune | 1 |
| DS-PDMC-EG2-WE | Wireless magnetic door/window contact | 1 |

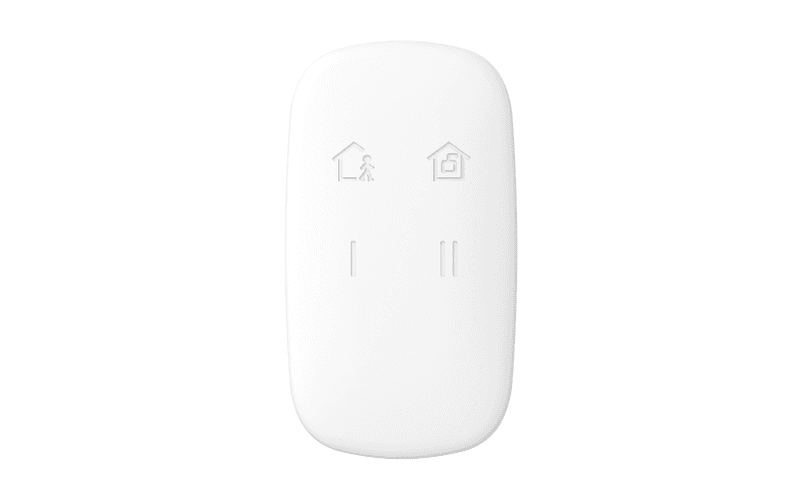

| DS-PKF1-WE | Wireless keyfob (arm/disarm) | 1 |

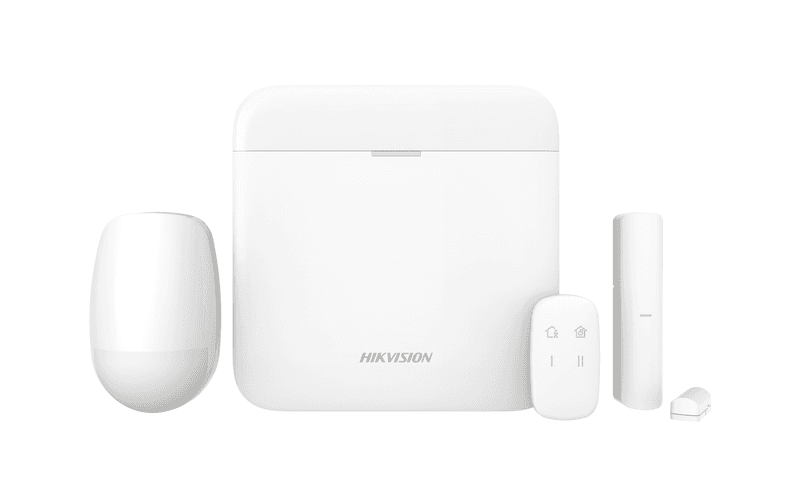

The DS-PWA64-Kit-WE is Hikvision's AX PRO starter bundle, built on the 868 MHz band rather than 2.4 GHz Wi-Fi. That frequency choice is the point for installers: it sits clear of typical domestic Wi-Fi/Bluetooth congestion and the range specifies anti-jamming transmission, which matters on sites with dense RF traffic.
Hub (DS-PWA64-L-WE): the central controller — pairs and manages all connected sensors and the keyfob, and handles the link to Hik-Connect for remote arm/disarm, status monitoring and push notifications.
Detection: the DS-PDP15P-EG2-WE PIR covers up to 15 metres with pet immunity, suited to a hallway or open room. The DS-PDMC-EG2-WE contact is a straightforward door/window trigger for perimeter entry points.
Fit: as supplied this is a single-hub, one-zone-plus-perimeter kit — one motion sensor, one door/window contact — sized for a small residential install or a compact commercial unit (single entry point, single open area). The hub supports adding further AX PRO detectors and keyfobs for expansion beyond this base configuration.
Configuration and ongoing monitoring run through the Hik-Connect app, with remote access to system status and alerts once the hub is commissioned.
Specifications
- Brand
- Hikvision
- Tag
- 32
- Area
- 16
- Zones
- 64 (up to 48 PIRCAMs)
- Installer
- 1
- User
- 30
- Admin
- 1
- Voice Prompt
- Supported
- Keyfob
- 32

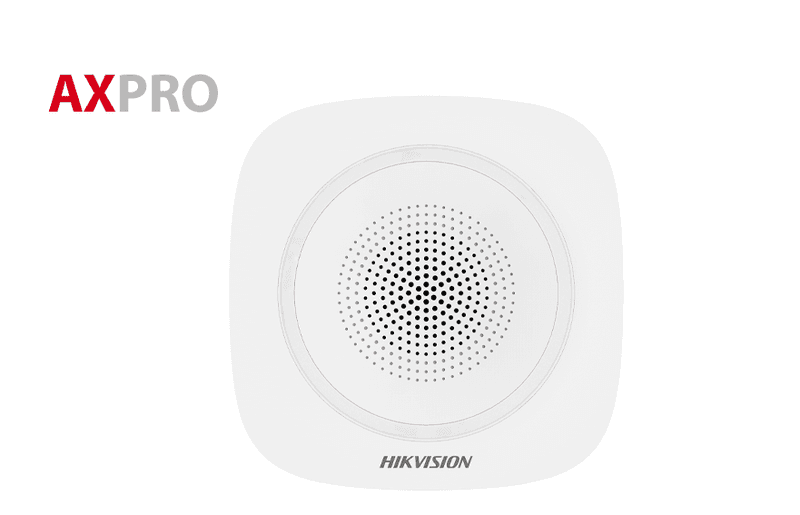

- Wireless Sounder
- 4 (2 internal+2 External)
- Keypad
- 8 (Including Tag reader)
- Wireless Repeater
- 2
- Multi Transmitter
- 4
- PIR Cam
- Supported
- Power supply
- Built in power supply
- Battery Type
- Built in on board Battery Li
- Battery Life Span
- Up to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)
- Manufacturer
- Hikvision
Technical Specifications
Frequently Asked Questions
What does the DS-PWA64-Kit-WE include?
One DS-PWA64-L-WE wireless alarm hub, one DS-PDP15P-EG2-WE PIR detector, one DS-PDMC-EG2-WE magnetic door/window contact, and one DS-PKF1-WE keyfob.
What is the detection range of the included PIR?
The DS-PDP15P-EG2-WE PIR detector covers up to 15 metres and includes pet immunity.
Can the system be expanded beyond the kit contents?
Yes, the hub supports adding further AX PRO wireless detectors and keyfobs beyond the devices supplied in this base kit.
Does the kit work with the Hik-Connect app?
Yes, the hub communicates with Hik-Connect for remote configuration, status monitoring and alarm notifications.
Why does this kit use 868MHz instead of Wi-Fi?
The 868 MHz band offers secure, stable wireless communication with enhanced resistance to signal interference, aided by the system's anti-jamming transmission.
