Product Description

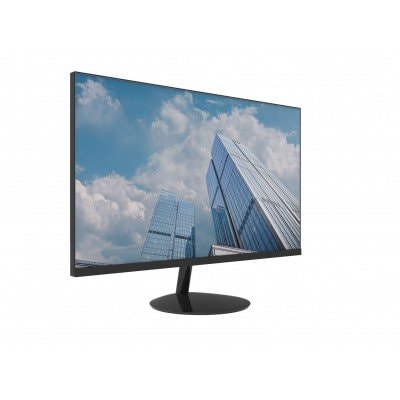

Dahua DHI-LM22-A200D 22" FHD VA CCTV Monitor
A 21.45" VA-panel monitor for control room and NVR/DVR local-display duty, delivering 1920×1080 at up to 100Hz refresh with an OD 5ms response time.
Key specs
- Panel: VA, E-LED backlight, 16:9, 250 nits, 3000:1 contrast, 16.7M colours
- Viewing angle: 178°(H)/178°(V)
- Inputs: HDMI×1, VGA×1 — no output, so no daisy-chain to a second monitor
- Power: 12V DC, 2A external supply; 22W max consumption, ≤0.5W standby
- Mounting: 75×75mm VESA, plastic base included
- Dimensions (no base): 492.7(W)×280.9(H)×50.8(D)mm
- Weight: 2.88kg net / 3.78kg gross
- Operating range: 0–40°C, 10–85% humidity
Control is via physical buttons on the bezel — no OSD remote. The ultra-narrow bezel and plastic housing keep it light for rack-adjacent or desk installs where footprint and weight matter more than build mass. Supplied with HDMI cable, power adapter and base, ready to pair with a compatible NVR/DVR HDMI or VGA output.
For integrators speccing a guard-desk or reception monitor bank, note there's a single HDMI and single VGA input only — plan matrix or switcher hardware separately if more than one source needs to feed this display.
Technical Specifications
Frequently Asked Questions
What inputs does the DHI-LM22-A200D support?
One HDMI and one VGA input, with no output for daisy-chaining a second monitor.
What power supply does it need?
An external 12V DC, 2A adapter, with maximum consumption of 22W and standby draw of ≤0.5W.
Can it be wall or arm mounted?
Yes, it has a 75×75mm VESA mount, and it also ships with a plastic base for desk placement.
What resolution and refresh rate does the panel run?
1920×1080 on a VA panel with E-LED backlight, supporting up to 100Hz refresh and an OD 5ms response time.
