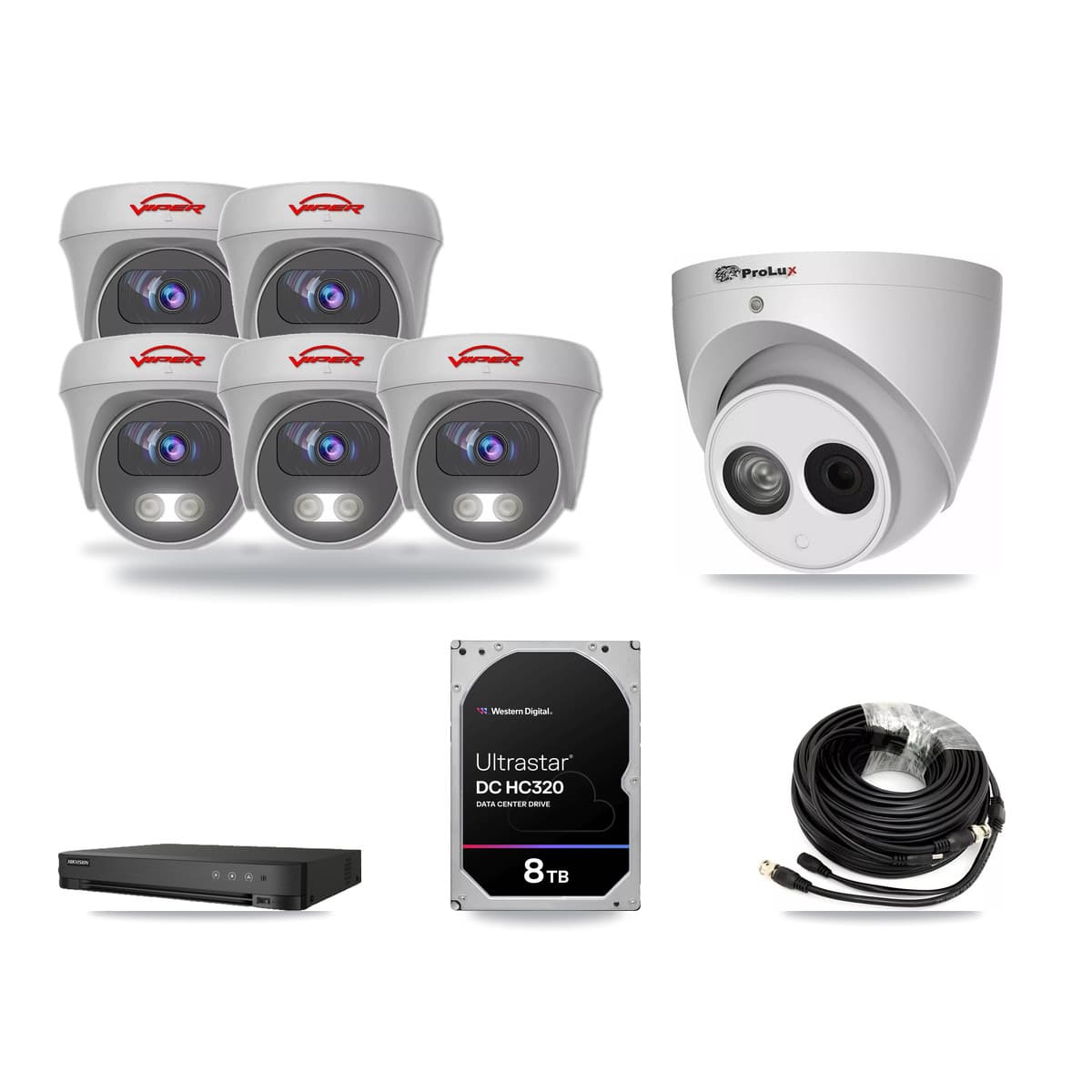

8-Channel 4MP – 5MP CCTV Kit — 1 4MP Turret + 5 5MP Cameras + 8TB Recording
SKU: KIT-HD8-IDS7208HUHIM-PXC612C4WAPOX06-8TB-1LUNACopied!
Built on: Hikvision IDS-7208HUHI-M1/E + 1× Prolux PXC-612C4W-A-POC + 5× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 30 days of continuous footage on the included 8TB hard drive.
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a shop or small business — 6 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 8-ch 8MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The cameras× 5
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
One plug that powers the cameras
The cable× 6
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 8-channel HD-over-coax CCTV kit built on the Hikvision IDS-7208HUHI-M1/E + 1× Prolux PXC-612C4W-A-POC + 5× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 6 cameras at 4MP + 5MP — sized for a shop or small office. The included 8TB hard drive holds about 30 days of continuous recording — the estimate assumes recording all 6 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 8-ch 8MP 1U H.265 AcuSense DVR; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 5× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision IDS-7208HUHI-M1/E + 1× Prolux PXC-612C4W-A-POC + 5× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 8-channel Hikvision 8-ch 8MP 1U H.265 AcuSense DVR
- Cameras included
- 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 5× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 4MP + 5MP
- Storage
- 8TB HDD — about 30 days of footage, recording all 6 cameras continuously at high quality (H.265) — the load is 1× 4MP + 5× 5MP
- Cables & PSU included
- 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 8-ch 8MP 1U H.265 AcuSense DVR; 1× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 5× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 6× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 12V 5A Power Supply with Built-in 8-Way Splitter – UK Plug, Boxed
