Product Description

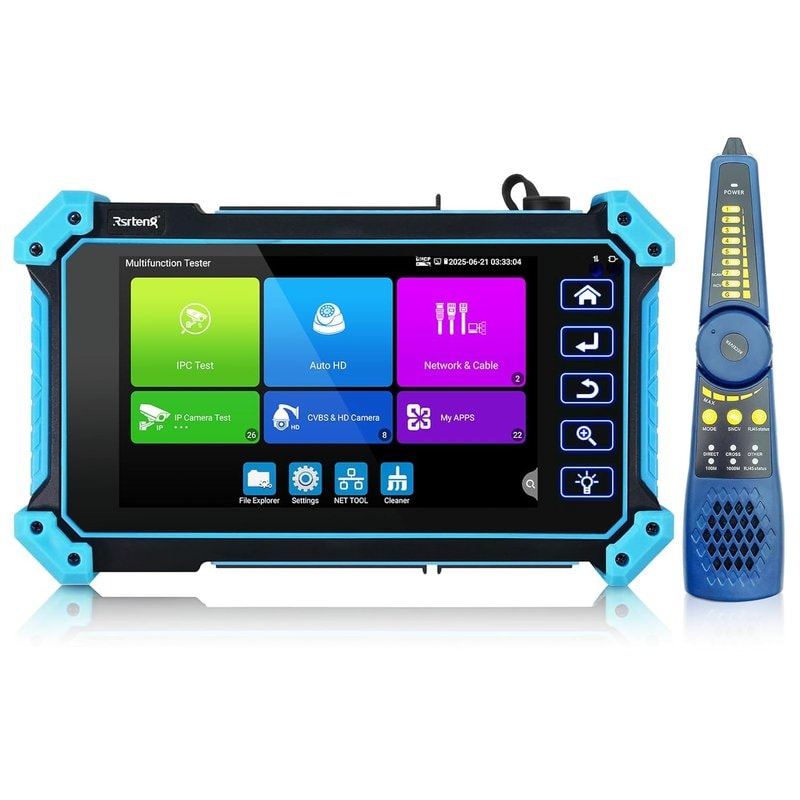

The Rsrteng IPC-5100C Plus is a portable CCTV camera tester designed for professional installation and maintenance of surveillance systems. The device features a 5.4-inch colour display that allows installers to view live camera feeds directly during setup and troubleshooting.
The tester supports multiple CCTV video technologies including IP cameras and analog high-definition formats such as HD-TVI, AHD, CVI and standard CVBS cameras. This multi-format compatibility makes the unit suitable for testing both modern IP surveillance systems and traditional coax-based CCTV installations.
The device includes PoE output capability, allowing installers to power compatible IP cameras directly from the tester during installation or diagnostics without requiring a network switch. This feature is particularly useful when configuring cameras on site.
An integrated cable tracer function enables technicians to identify and test network or CCTV cabling during installation and maintenance work. Additional interfaces such as HDMI and VGA output allow the tester to connect to external monitors for extended testing or system verification.
The compact handheld design makes the IPC-5100C Plus suitable for field engineers and CCTV installers who require a portable all-in-one tool for testing, configuring and troubleshooting surveillance equipment.
Specifications
- Brand
- Rsrteng
- Model
- IPC-5100C Plus
- Display
- 5 inch IPS touch screen, 1920x1080 resolution
- 12MP 4K IP camera test
- IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK Rapid Video: Auto view the video, create testing report For HIKVISION test tool: support batch activate HIKVISION cameras and modify IP address, modify password etc. Self-defined modify channel name, open wide dynamic mode. Factory restore, etc. For DAHUA test tool: support batch activate DAHUA cameras and modify IP address,username and password. Self-defined modify channel name. For Axis test tool amd others brand camera test: After the tester connects to the network, install the dedicated test tool APP of the corresponding brand through online update. Brands that do not have a dedicated test APP can be tested through the test pro tool.
