What's in the box
Full parts list with quantities. Tap a line for its full spec.
1-camera kit · ~138 days recording · analogue cameras — survey any existing coax for condition and compatibility before reusing it.
Recorder capacity
1 camera supplied, taking 1 of 4 recorder channels. 3 channels spare for expansion. Adding cameras? Confirm the recorder takes their resolution, has the bandwidth to record them and has power/PoE ports free.
Recording storage
3TB storage supplied. Retention: around 138 days on continuous H.265. Based on 1 Mbps to 2MP, 2 Mbps to 5MP and 4 Mbps over 5MP — per camera, summed across mixed models. On site, retention moves with recorder settings, scene activity and usable HDD capacity; with motion-only recording, expect it to vary with activity.
Before installation
Check the box list for supplied cables, PSUs and mounting accessories. Size cable runs and camera positions to the site — camera count alone doesn't establish coverage. Per position: lens field of view, lighting, weather protection — confirm all three.
Price on request
The 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording in this kit is a quoted line, so the kit is priced on application rather than with a published total. Remaining parts listed below.
The recorder
1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
Records every channel and runs the app
The cameras
1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
The units that go on the wall
The hard drive
1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording
Footage storage
The power supply
1× MOSO Power Unit 12V 1.5A
Single-plug camera power
The cable
1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
Camera-to-recorder runs
Need other cameras, a larger HDD or longer cable runs? Open the kit in the builder to swap parts as required — every swap gets re-checked against the full spec, so you can't build a parts list that won't work together.
Product Description

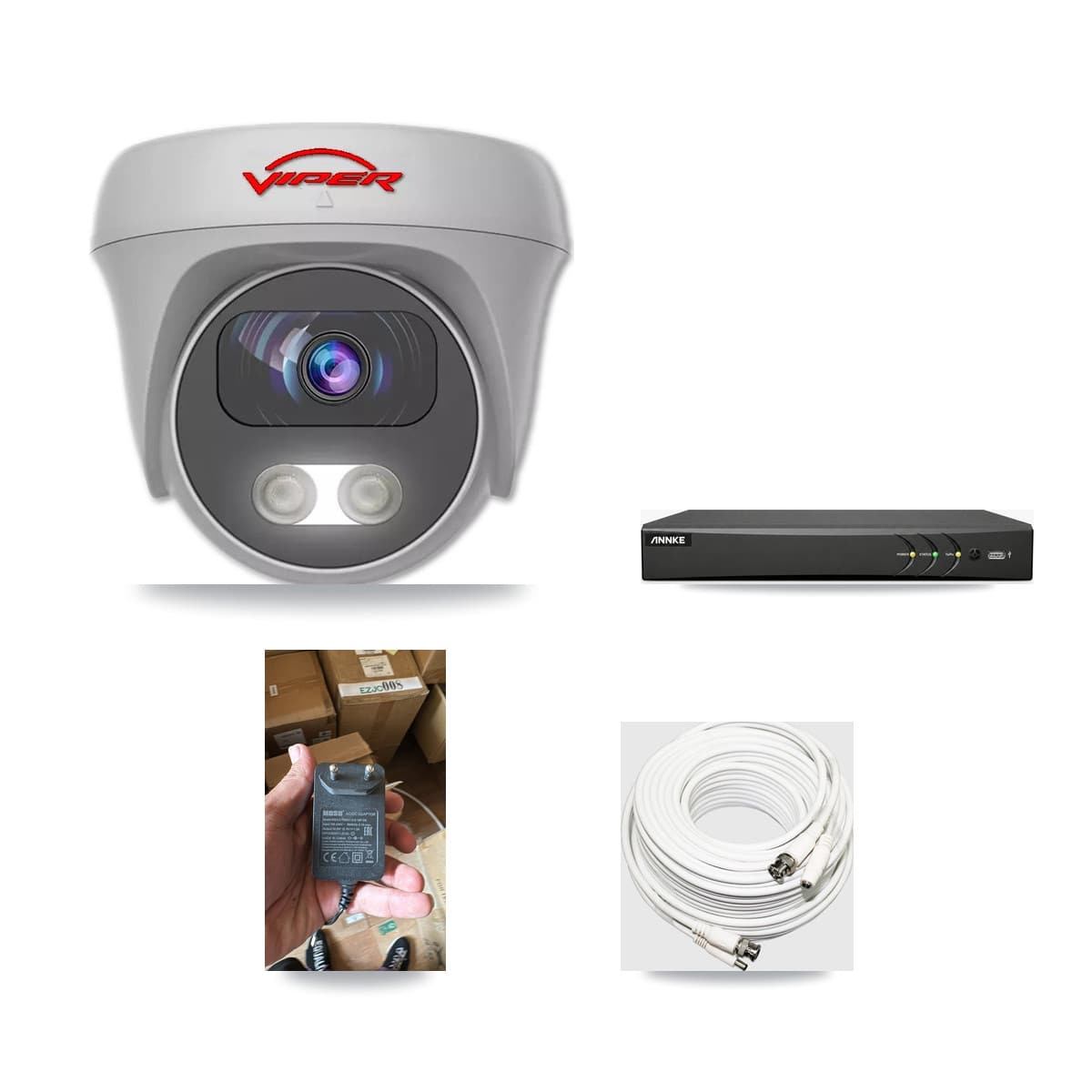

A complete 4-channel HD-over-coax CCTV kit built on the ANNKE AN-DV4-8MP-D941BB + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. One camera at 5MP — sized for a house or flat. The included 3TB hard drive holds about 138 days of continuous recording — the estimate assumes recording the camera continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores, 1× MOSO Power Unit 12V 1.5A. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× MOSO Power Unit 12V 1.5A.
Specifications
- System type
- Analog (HD over coax)
- Built on
- ANNKE AN-DV4-8MP-D941BB + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 4-channel ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR
- Cameras included
- 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 5MP
- Storage
- 3TB HDD — about 138 days of footage, recording the camera continuously at high quality (H.265)
- Cables & PSU included
- 1× MOSO Power Unit 12V 1.5A; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- What's in the box
- 1× ANNKE D941BB – 8MP 4K 4-Channel 5-in-1 DVR; 1× VIPER PRO 5MP 3K Camera - 24-Hour Smart Light CCTV; 1× 3TB - HDD 3.5" SATA Hard Drives – Free Installation with Any CCTV Kit or Package -Ideal for 24/7 continuous recording; 1× Unbranded – 20M RG59 Coaxial Camera Cable with Power Cores; 1× MOSO Power Unit 12V 1.5A
