Hikvision 32-Channel 2MP CCTV Kit — 20 PTZ + 1 Dome Cameras + 2× 6TB Recording
SKU: KIT-HD32-DS7332HQHIK4-DS2AE5225TIAX21-2X6TB-194KJCopied!
Built on: Hikvision DS-7332HQHI-K4 + 20× Hikvision DS-2AE5225TI-A-E + 1× HDT-2MP-N20W-2.8MM. Keeps about 26 days of continuous footage on the included 2× 6TB surveillance hard drives (12TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.

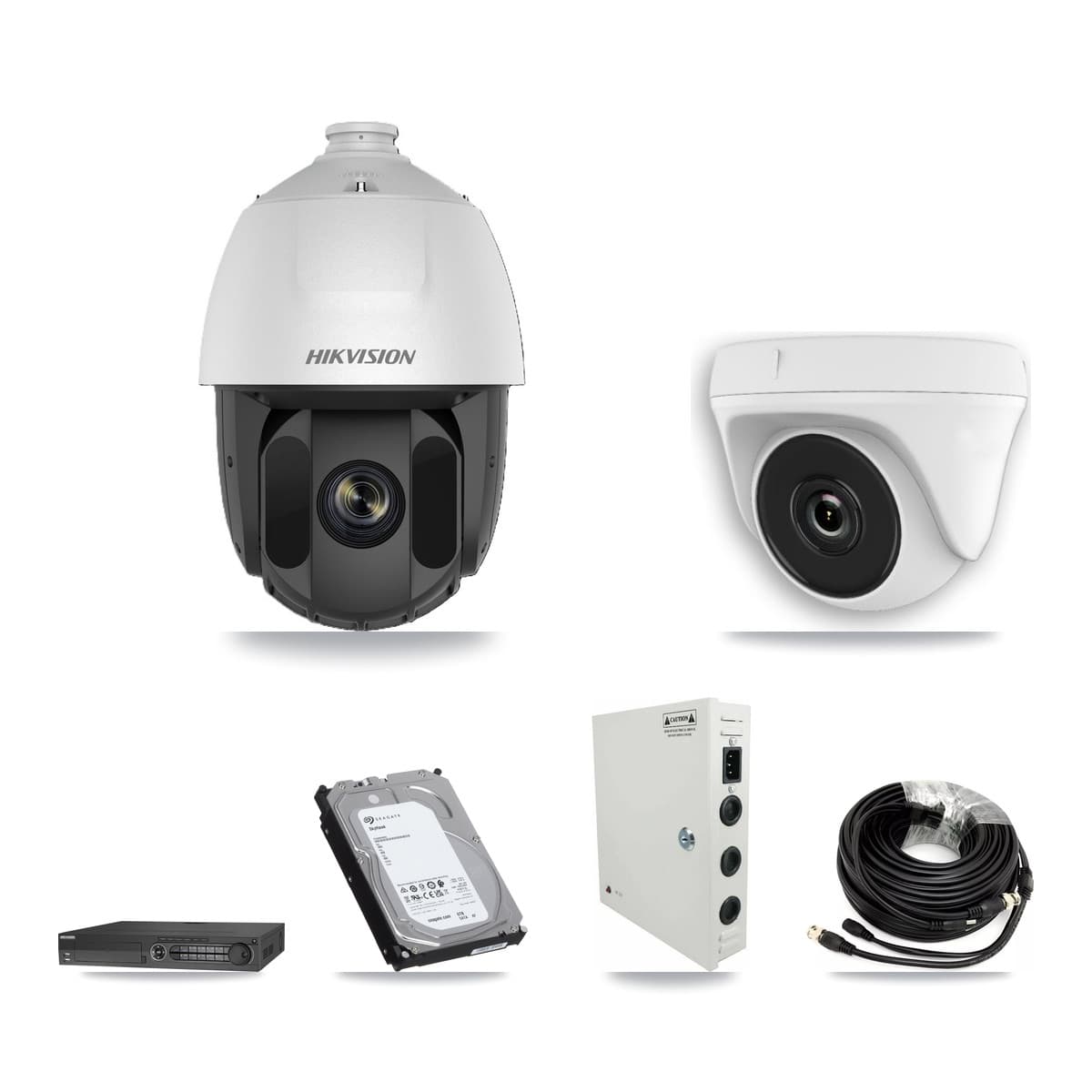

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a commercial site — 21 cameras, keeps about 26 days of footage, it reuses the round coax cable an older system left behind.
The recorder
Hikvision 32-ch 5mp 1.5U H.265 DVR
The box that saves everything and runs the app
The cameras× 20
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The cameras
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The hard drive× 2
Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
One plug that powers the cameras
The cable× 21
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision DS-7332HQHI-K4 + 20× Hikvision DS-2AE5225TI-A-E + 1× HDT-2MP-N20W-2.8MM. 21 cameras at 2MP — sized for a commercial site. The included 2× 6TB surveillance hard drives (12TB in total) hold about 26 days of continuous recording — the estimate assumes recording all 21 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 21× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 20× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White); 2× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 21× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision DS-7332HQHI-K4 + 20× Hikvision DS-2AE5225TI-A-E + 1× HDT-2MP-N20W-2.8MM
- Recorder
- 32-channel Hikvision 32-ch 5mp 1.5U H.265 DVR
- Cameras included
- 20× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White)
- Camera resolution
- 2MP
- Storage
- 2× 6TB (12TB total) surveillance HDD — about 26 days of footage, recording all 21 cameras continuously at high quality (H.265)
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit; 21× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 5mp 1.5U H.265 DVR; 20× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 1× 2MP HD 4in1 Dome Camera (2.8mm/ White); 2× Seagate SkyHawk 6TB Surveillance HDD SATA 6Gb/s 3.5in; 21× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
