Hikvision 32-Channel 2MP – 4K CCTV Kit — 9 4K Bullet + 9 2MP Dome Cameras + 3× 10TB Recording
SKU: KIT-HD32-IDS7332HUHIM-DS2CE12UF3TEX18-3X10TB-NEMZTCopied!
Built on: Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2CE12UF3T-E + 9× HDT-2MP-N20W-2.8MM. Keeps about 30 days of continuous footage on the included 3× 10TB surveillance hard drives (30TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.

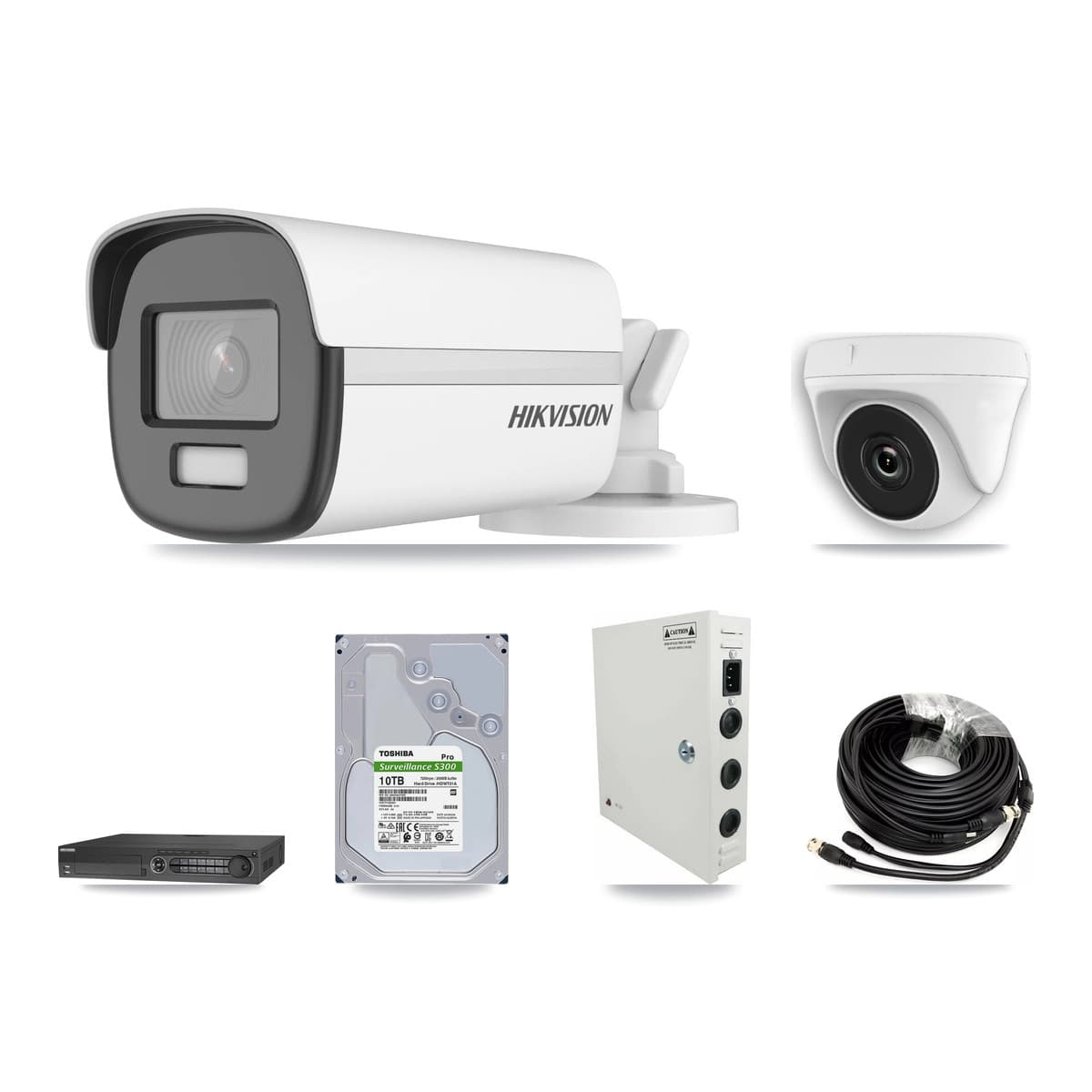

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a commercial site — 18 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 9
Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
What goes on the wall
The cameras× 9
2MP HD 4in1 Dome Camera (2.8mm/ White)
What goes on the wall
The hard drive× 3
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 18
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2CE12UF3T-E + 9× HDT-2MP-N20W-2.8MM. 18 cameras at 2MP + 4K (8MP) — sized for a commercial site. The included 3× 10TB surveillance hard drives (30TB in total) hold about 30 days of continuous recording — the estimate assumes recording all 18 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 18× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 9× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 9× 2MP HD 4in1 Dome Camera (2.8mm/ White); 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 18× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7332HUHI-M4/S + 9× Hikvision DS-2CE12UF3T-E + 9× HDT-2MP-N20W-2.8MM
- Recorder
- 32-channel Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Cameras included
- 9× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 9× 2MP HD 4in1 Dome Camera (2.8mm/ White)
- Camera resolution
- 2MP + 4K (8MP)
- Storage
- 3× 10TB (30TB total) surveillance HDD — about 30 days of footage, recording all 18 cameras continuously at high quality (H.265) — the load is 9× 8MP + 9× 2MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 18× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 9× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 9× 2MP HD 4in1 Dome Camera (2.8mm/ White); 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 18× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
