32-Channel 4MP – 5MP CCTV Kit — 7 4MP Turret + 16 5MP Cameras + 3× 10TB Recording
SKU: KIT-HD32-IDS7332HUHIM-PXC612C4WAPOX23-3X10TB-1J4ZECopied!
Built on: Hikvision iDS-7332HUHI-M4/S + 7× Prolux PXC-612C4W-A-POC + 16× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 30 days of continuous footage on the included 3× 10TB surveillance hard drives (30TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.

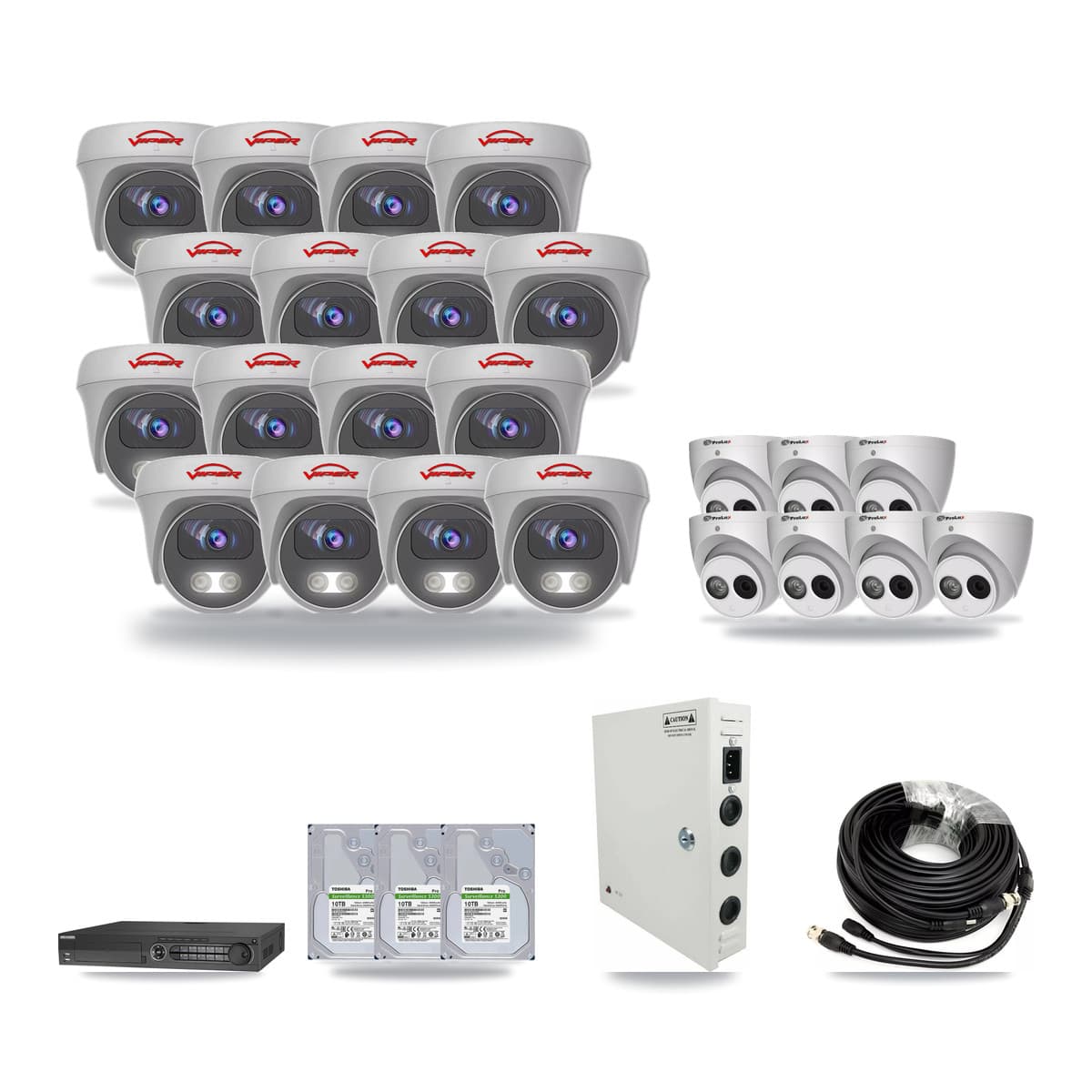

What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a commercial site — 23 cameras, keeps about 30 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 7
Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible
What goes on the wall
The cameras× 16
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive× 3
Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 23
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7332HUHI-M4/S + 7× Prolux PXC-612C4W-A-POC + 16× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 23 cameras at 4MP + 5MP — sized for a commercial site. The included 3× 10TB surveillance hard drives (30TB in total) hold about 30 days of continuous recording — the estimate assumes recording all 23 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 23× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 7× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 16× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 23× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7332HUHI-M4/S + 7× Prolux PXC-612C4W-A-POC + 16× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 32-channel Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Cameras included
- 7× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 16× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 4MP + 5MP
- Storage
- 3× 10TB (30TB total) surveillance HDD — about 30 days of footage, recording all 23 cameras continuously at high quality (H.265) — the load is 7× 4MP + 16× 5MP
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 23× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 7× Prolux 4MP PoC Audio Eyeball Camera 2.8mm 50m IR Hikvision Compatible; 16× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 3× Toshiba S300 Pro 10TB Surveillance Hard Drive 3.5" SATA 7200RPM; 23× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
