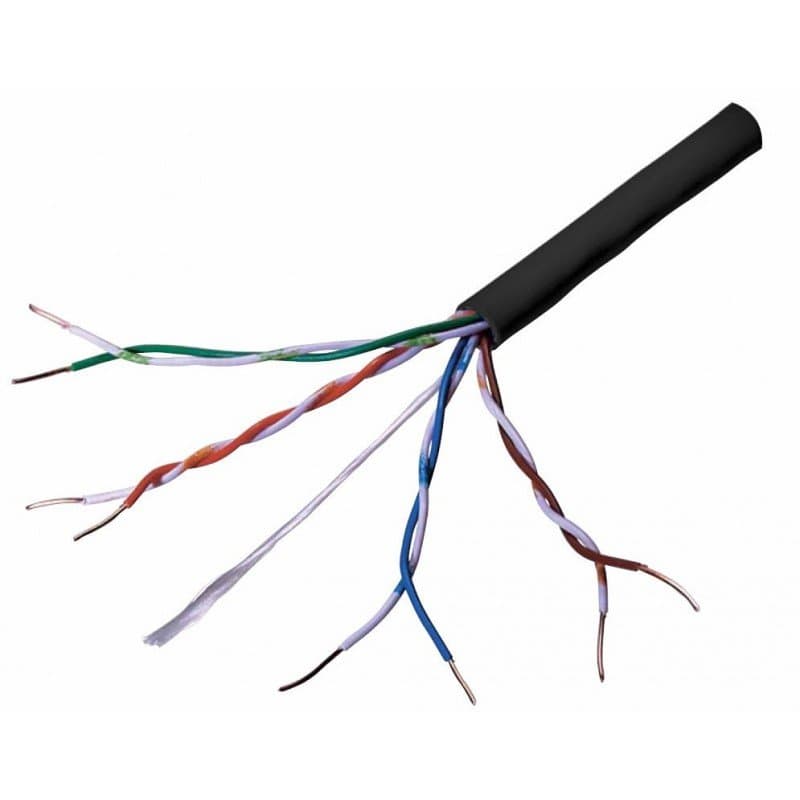

Connectix External Cat5e UTP Solid Cable 305m Black LDPE Outdoor Pull Box

The Connectix External Cat5e UTP Solid Cable in 305m pull box format provides a robust outdoor-rated solution for permanent horizontal and backbone cabling in IP CCTV, LAN extension and access control systems. Constructed as Enhanced Category 5e unshielded twisted pair with 24AWG solid bare copper conductors, it is verified to exceed ANSI/TIA-568-C.2 performance parameters including return loss, insertion loss, NEXT and PSNEXT across the full 1-100MHz frequency range required for 1000Base-T operation over all four pairs.

The black LDPE/PE compound outer sheath delivers weatherproofing against UV degradation, moisture ingress and temperature extremes typical of external deployments, enabling direct exposure on building exteriors, aerial catenary suspension or external conduit/duct routings compliant with local mechanical support regulations. With an overall diameter around 4.8-5.0mm and CPR Fca fire classification, the cable prioritises external durability over internal plenum or riser flame retardancy requirements. Metre-by-metre sequential printing on the sheath facilitates accurate run length documentation during installation, Fluke testing and future maintenance activities.

This cable integrates seamlessly into structured cabling topologies when terminated using precision Cat5e RJ45 crimp plugs, IDC patch panels or keystone jacks from Connectix or equivalent vendors, forming end-to-end channels certified for Gigabit Ethernet, PoE-powered IP cameras, HDBaseT extenders and VoIP telephony. The solid core construction minimises insertion loss on runs up to 90m permanent link length, making it ideal for linking remote NVR enclosures, field PoE injectors or outdoor wireless bridges back to central equipment rooms across campus or multi-building sites.
