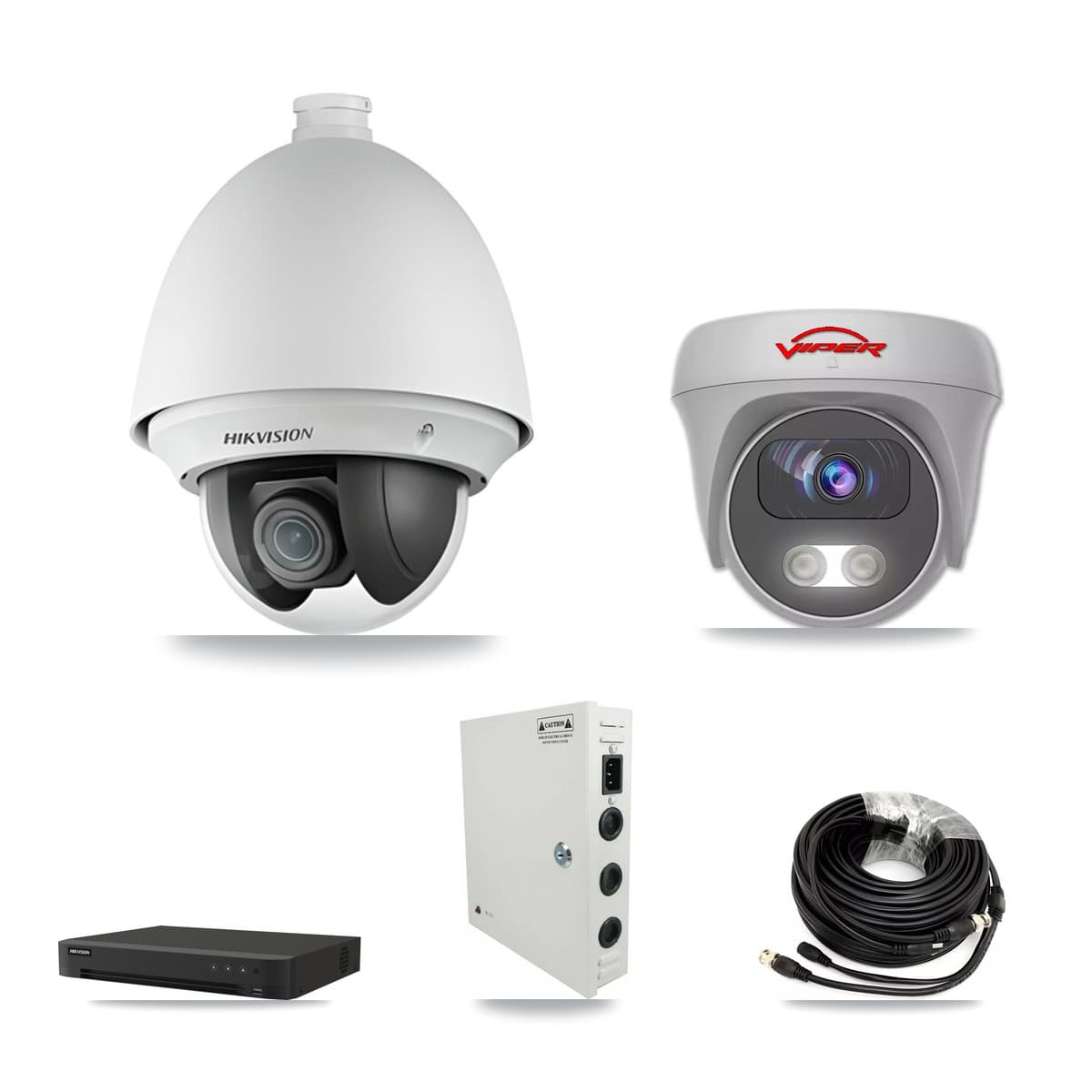

Hikvision & Viper 16-Channel 2MP – 5MP CCTV Kit — 11 2MP PTZ + 1 White 5MP Cameras + 8TB Recording (IDS-7216HQHI Recorder)
SKU: KIT-HD16-IDS7216HQHIM-DS2AE4225TAVX12-8TB-1PVFYCopied!
Built on: Hikvision IDS-7216HQHI-M1/XT + 11× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. Keeps about 28 days of continuous footage on the included 8TB hard drive.
Low Stock
Only 1 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
What's in the box
Every part in this kit and how many of each you get. Tap a part to see its full specification.
Enough for a large property or yard — 12 cameras, keeps about 28 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 16-ch 5MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 11
Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome
What goes on the wall
The cameras
VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
What goes on the wall
The hard drive
Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
One plug that powers the cameras
The cable× 12
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision IDS-7216HQHI-M1/XT + 11× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM. 12 cameras at 2MP + 5MP — sized for a larger property or yard. The included 8TB hard drive holds about 28 days of continuous recording — the estimate assumes recording all 12 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when the drive fills. Power and cabling are covered: 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 5MP 1U H.265 AcuSense DVR; 11× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision IDS-7216HQHI-M1/XT + 11× Hikvision DS-2AE4225T-A + 1× Viper VIPER-5MP-3K-AOC-WHITE-2.8MM
- Recorder
- 16-channel Hikvision 16-ch 5MP 1U H.265 AcuSense DVR
- Cameras included
- 11× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV
- Camera resolution
- 2MP + 5MP
- Storage
- 8TB HDD — about 28 days of footage, recording all 12 cameras continuously at high quality (H.265) — the load is 11× 2MP + 1× 5MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 5MP 1U H.265 AcuSense DVR; 11× Hikvision 4-inch 2 MP 25X Powered by DarkFighter Analog Speed Dome; 1× VIPER PRO 5MP 3K ColorVu Camera - 24-Hour Smart Light CCTV; 1× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 12× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 30A Distribution Unit
