Hikvision 32-Channel 5MP – 4K CCTV Kit — 5 5MP Bullet + 10 Black 4K Turret Cameras + 4× 8TB Recording
SKU: KIT-HD32-IDS7332HUHIM-DS2CE12KF3TPX15-4X8TB-P3JRNCopied!
Built on: Hikvision iDS-7332HUHI-M4/S + 5× Hikvision DS-2CE12KF3T-PIRXO + 10× Hikvision DS-2CE78U0T-LTS-Black. Keeps about 29 days of continuous footage on the included 4× 8TB hard drives (32TB in total).
Low Stock
Only 9 left - order soon!
How many cameras?
Same recorder and same cameras — just more of them.
Which camera styles?
The same kit, split differently between camera styles.
How long should it keep footage?
When the drive fills, the recorder writes over the oldest day.

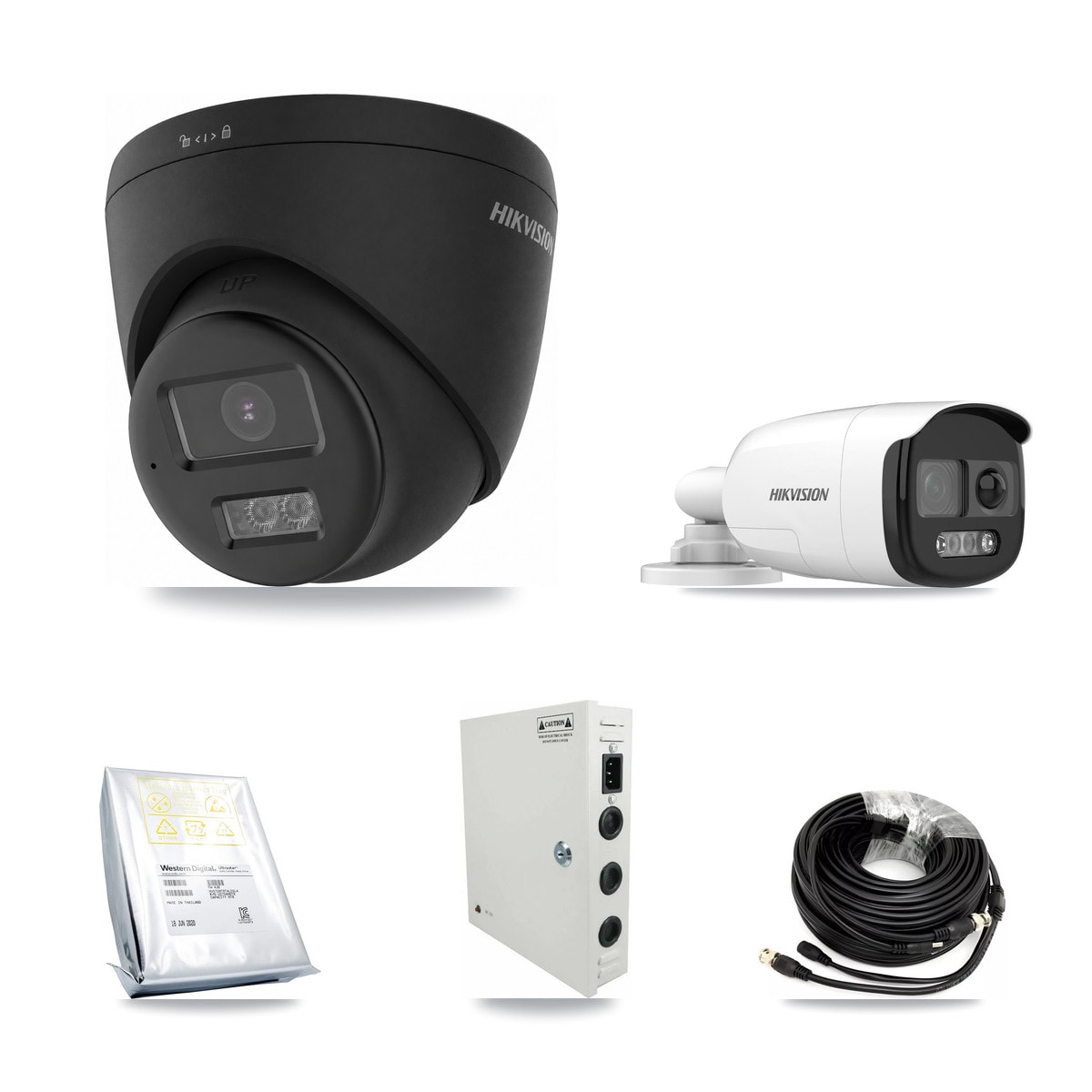

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 15 cameras, keeps about 29 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 5
HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera
What goes on the wall
The cameras× 10
HIKVISION 4K Two Way Audio Fixed Turret
What goes on the wall
The hard drive× 4
Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive
Where the footage is kept
The power supply
18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
One plug that powers the cameras
The cable× 15
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 32-channel HD-over-coax CCTV kit built on the Hikvision iDS-7332HUHI-M4/S + 5× Hikvision DS-2CE12KF3T-PIRXO + 10× Hikvision DS-2CE78U0T-LTS-Black. 15 cameras at 5MP + 4K (8MP) — sized for a larger property or yard. The included 4× 8TB hard drives (32TB in total) hold about 29 days of continuous recording — the estimate assumes recording all 15 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 15× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 5× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 10× HIKVISION 4K Two Way Audio Fixed Turret; 4× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 15× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7332HUHI-M4/S + 5× Hikvision DS-2CE12KF3T-PIRXO + 10× Hikvision DS-2CE78U0T-LTS-Black
- Recorder
- 32-channel Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR
- Cameras included
- 5× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 10× HIKVISION 4K Two Way Audio Fixed Turret
- Camera resolution
- 5MP + 4K (8MP)
- Storage
- 4× 8TB (32TB total) HDD — about 29 days of footage, recording all 15 cameras continuously at high quality (H.265) — the load is 5× 5MP + 10× 8MP
- Cables & PSU included
- 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit; 15× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 32-ch 8MP 1.5U H.265 AcuSense DVR; 5× HIKVISION 3K ColorVu PIR Siren Fixed Bullet Camera; 10× HIKVISION 4K Two Way Audio Fixed Turret; 4× Western Digital Ultrastar 8TB Enterprise SATA 3.5" Hard Drive; 15× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 1× 18 Channel CCTV Power Supply Box 12V DC 15A Fused Distribution Unit
