Hikvision DS-PWA64-KIT2-WE AX PRO 64 Zone Alarm Kit
SKU: DS-PWA64-Kit2-WECopied!
AX PRO wireless intruder alarm kit supplied with 1 hub, 2 PIR detectors, 1 keypad, 1 magnetic contact and 1 external siren. DS-PWA64-L-WE hub supports up to 64 wireless zones or outputs, including up to 48 PIRCAMs. Supports TCP/IP, WiFi and GPRS network communication for alarm connectivity. 868 MHz Tri-X/Cam-X wireless protocol with two-way communication and AES-128 encryption. Includes 2 x DS-PDP15P-EG2-WE PIR detectors with 15 m detection range and 85.9° detection angle. DS-PK1-E-WE wireless keypad supports stay/away arming, disarming, LED backlight and app configuration. DS-PS1-E-WE external sounder provides 110 dB buzzer output and IP65 protection.
Available to order
Add to basket or call us — our team will arrange it
Documents & Manuals
How to buy this item: add it to your basket and send us a pricing request, or contact our sales team directly.
Product Description

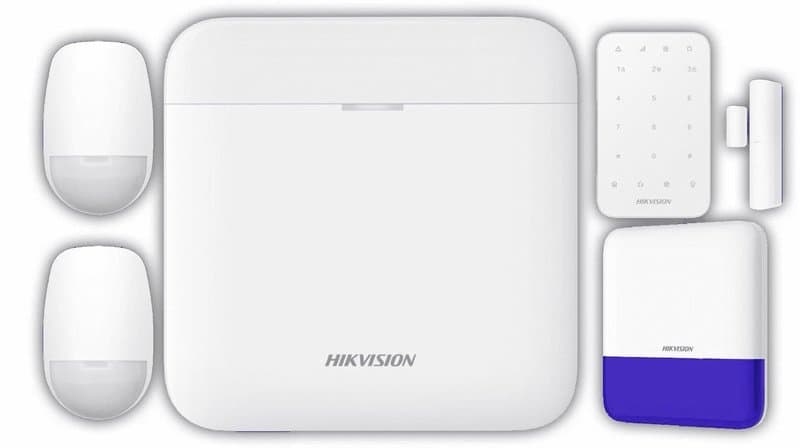

DS-PWA64-KIT2-WE is a boxed AX PRO wireless alarm kit built around the DS-PWA64-L-WE hub, ready for a domestic or small commercial install straight out of the case.
What's in the box
- 1 x DS-PWA64-L-WE L-Level hub — up to 64 wireless zones/outputs, including up to 48 PIRCAMs
- 2 x DS-PDP15P-EG2-WE PIR detectors — 15 m range, 85.9° detection angle
- 1 x DS-PK1-E-WE wireless keypad — stay/away arming, disarming, LED backlight, app configuration
- 1 x magnetic contact for door/window opening detection
- 1 x DS-PS1-E-WE external sounder — 110 dB buzzer, IP65 rated
Hub and connectivity
The hub carries the AX PRO 868 MHz Tri-X/Cam-X protocol with two-way communication and AES-128 encryption, supporting up to 30 users plus installer and administrator accounts. Network connectivity covers TCP/IP, WiFi and GPRS, so the panel can report over LAN, WiFi or cellular backup depending on site conditions.
Configuration platforms
System setup and management runs through Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200 or Convergence Cloud, giving installers a choice of app or cloud route depending on the client's access requirements and how the job is being managed remotely.
Suitable as a self-contained starting point for wireless AX PRO deployments across homes, offices, shops and other small premises — expandable up to the hub's 64-zone limit as further PIRCAMs, contacts or sirens are added.
Specifications
- Manufacturer
- Hikvision
Technical Specifications
Frequently Asked Questions
How many wireless zones does the DS-PWA64-L-WE hub support?
Up to 64 wireless zones or outputs, including up to 48 PIRCAMs, with support for up to 30 users plus installer and administrator access.
What wireless protocol and encryption does the kit use?
The AX PRO system uses 868 MHz Tri-X/Cam-X wireless communication with two-way messaging and AES-128 encryption.
What is the detection range of the included PIR detectors?
The two DS-PDP15P-EG2-WE PIR detectors provide a 15 m detection range with an 85.9° detection angle.
Which apps or platforms can be used to configure this system?
Configuration is supported through Hik-Connect, Hik-ProConnect, Web Portal, iVMS-4200 and Convergence Cloud, depending on user access and installation requirements.
How does the hub connect to the network for alarm signalling?
It supports TCP/IP, WiFi and GPRS network communication methods for alarm connectivity.
