Hikvision 16-Channel 2MP – 4K CCTV Kit — 8 2MP PTZ + 8 4K Bullet Cameras + 2× 12TB Recording
SKU: KIT-HD16-IDS7216HUHIM-DS2AE5225TIAX16-2X12TB-7VJ3FCopied!
Built on: Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2AE5225TI-A-E + 8× Hikvision DS-2CE12UF3T-E. Keeps about 27 days of continuous footage on the included 2× 12TB surveillance hard drives (24TB in total).
Available to order
Add to basket or call us — our team will arrange it
How many cameras?
Same recorder and same cameras — just more of them.

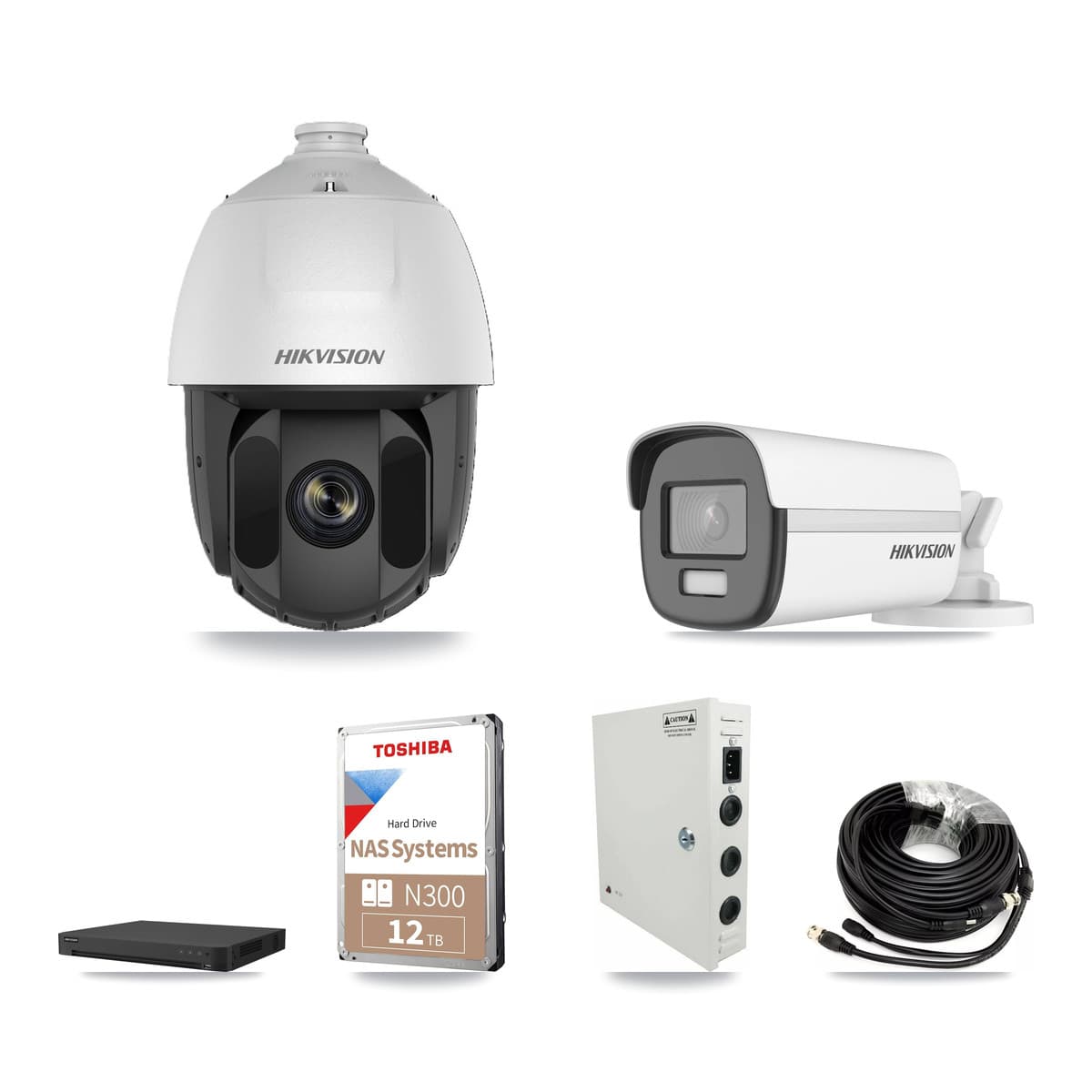

What's in the box
Everything you need is here — nothing to order separately, and nothing to work out. Each part is a real product you could buy on its own, and we have checked them against each other before boxing them.
Enough for a large property or yard — 16 cameras, keeps about 27 days of footage, it reuses the round coax cable an older system left behind.
Price on request
One part of this kit — the Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD — is sold at a quoted price, so we price the kit for you rather than publish a total. Everything else in the box is listed below.
The recorder
Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
The box that saves everything and runs the app
The cameras× 8
Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera
What goes on the wall
The cameras× 8
Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
What goes on the wall
The hard drive× 2
Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD
Where the footage is kept
The power supply× 2
18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
One plug that powers the cameras
The cable× 16
RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
Runs from each camera back to the recorder
Want different cameras, a bigger drive or longer cable runs? Open this exact kit in the builder and change any part — everything is re-checked against the rest as you go, so you cannot end up with parts that do not work together.
Product Description
A complete 16-channel HD-over-coax CCTV kit built on the Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2AE5225TI-A-E + 8× Hikvision DS-2CE12UF3T-E. 16 cameras at 2MP + 4K (8MP) — sized for a larger property or yard. The included 2× 12TB surveillance hard drives (24TB in total) hold about 27 days of continuous recording — the estimate assumes recording all 16 cameras continuously at high quality (H.265), and the recorder writes over the oldest footage when they fill. Power and cabling are covered: 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR, 2× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit. Nothing else is needed to start recording: recorder, cameras, storage, power and cabling are all in the box. In the box: 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 2× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit. Free Hik-Connect app (iOS / Android) for live view and playback.
Specifications
- System type
- Analog (HD over coax)
- Built on
- Hikvision iDS-7216HUHI-M2/XT + 8× Hikvision DS-2AE5225TI-A-E + 8× Hikvision DS-2CE12UF3T-E
- Recorder
- 16-channel Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR
- Cameras included
- 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera
- Camera resolution
- 2MP + 4K (8MP)
- Storage
- 2× 12TB (24TB total) surveillance HDD — about 27 days of footage, recording all 16 cameras continuously at high quality (H.265) — the load is 8× 2MP + 8× 8MP
- Cables & PSU included
- 2× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR
- What you need to add
- Nothing — recorder, cameras, surveillance hard drive, power and cabling are all included
- Mobile app
- Free Hik-Connect app (iOS / Android) for live view and playback
- What's in the box
- 1× Hikvision 16-ch 8 MP 1U H.265 AcuSense DVR; 8× Hikvision DS-2AE5225TI-A-E 2MP 25x PTZ Turbo HD Camera; 8× Hikvision 4K ColorVu PoC Fixed Mini Bullet Camera; 2× Toshiba N300 12TB NAS Hard Drive 3.5" SATA 7200RPM HDD; 16× RG59 CCTV Cable 20m BNC Video with DC Power Shotgun Lead for Camera to DVR; 2× 18 Channel CCTV Power Supply Box 12V DC 20A Fused Distribution Unit
